Toyota COROLLA JPP — INTERIOR LAMP

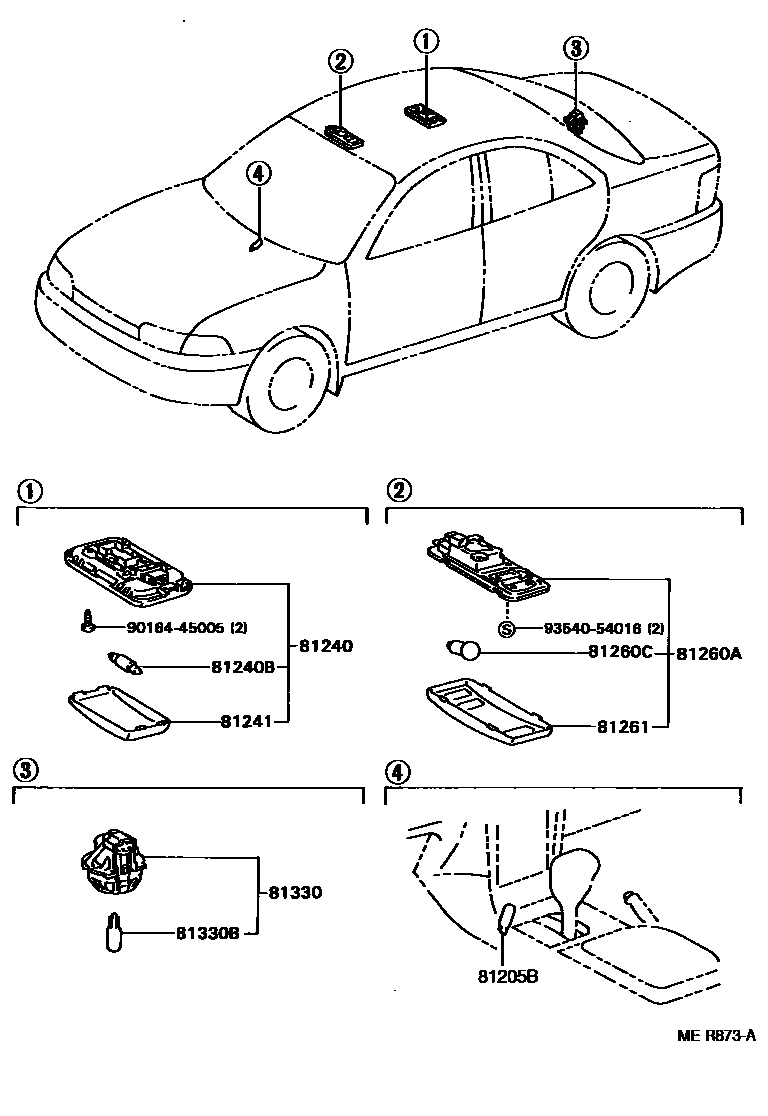

Parts diagram
81205BBULB, ASH RECEPTACLE LAMP
main90981-11018i199411
12V 1.2W W/O SOCKET
81240LAMP ASSY, ROOM, NO.1
main81240-12040-B0i199206-199305
LIGHT GRAY,TRIM1#
main81240-12040-J0i199206-199305
LIGHT BLUE,TRIM8#
main81240-12040-K0i199206-199305
LIGHT TAUP,TRIM9#
main81240-12060-A1i199508-199704
IVORY,TRIM4#
main81240-12060-B0i199305-199704
LIGHT GRAY,TRIM1#
main81240-12060-J0i199305-199704
LIGHT BLUE,TRIM8#
main81240-12060-K0i199305-199508
LIGHT TAUPE,TRIM9#
81240BBULB, ROOM LAMP, NO.1
main90981-14011i199305
12V 8W
main99132-12100i199206-199305
12V 10W
81241LENS, ROOM LAMP, NO.1
main81241-12020i199206
81260ALAMP ASSY, MAP
main81260-20160-A0i199508-199704
IVORY,TRIM4#
main81260-20160-K1i199206-199508
LIGHT TAUPE,TRIM9#
main81260-20160-S3i199206-199704
SHADOW GRAY,TRIM1#
main81260-20160-W5i199206-199704
LIGHT BLUE,TRIM8#
81260CBULB(FOR MAP LAMP)
main90981-12014i199206
12V 10W
81261LENS AND COVER, MAP LAMP
main81261-20160-03i199206-199305
SHADOW GRAY,TRIM1#
main81261-20160-A0i199508-199704
IVORY,TRIM4#
main81261-20160-B0i199305-199704
LIGHT GRAY,TRIM1#
main81261-20160-J0i199206-199704
LIGHT BLUE,TRIM8#
main81261-20160-K0i199206-199508
LIGHT TAUPE,TRIM9#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
main81330-12020i199206
81330BBULB, LUGGAGE COMPARTMENT LAMP
main90981-11020i199206
12V 3.8W
9016445005
main90164-45005
9354054016
main93540-54016

11 parts on this diagram · 2 diagrams in section

INTERIOR LAMP for Toyota COROLLA JPP

This section contains 14 genuine Toyota parts for the INTERIOR LAMP system of the Toyota COROLLA JPP. Key components include: BULB, ASH RECEPTACLE LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2.
