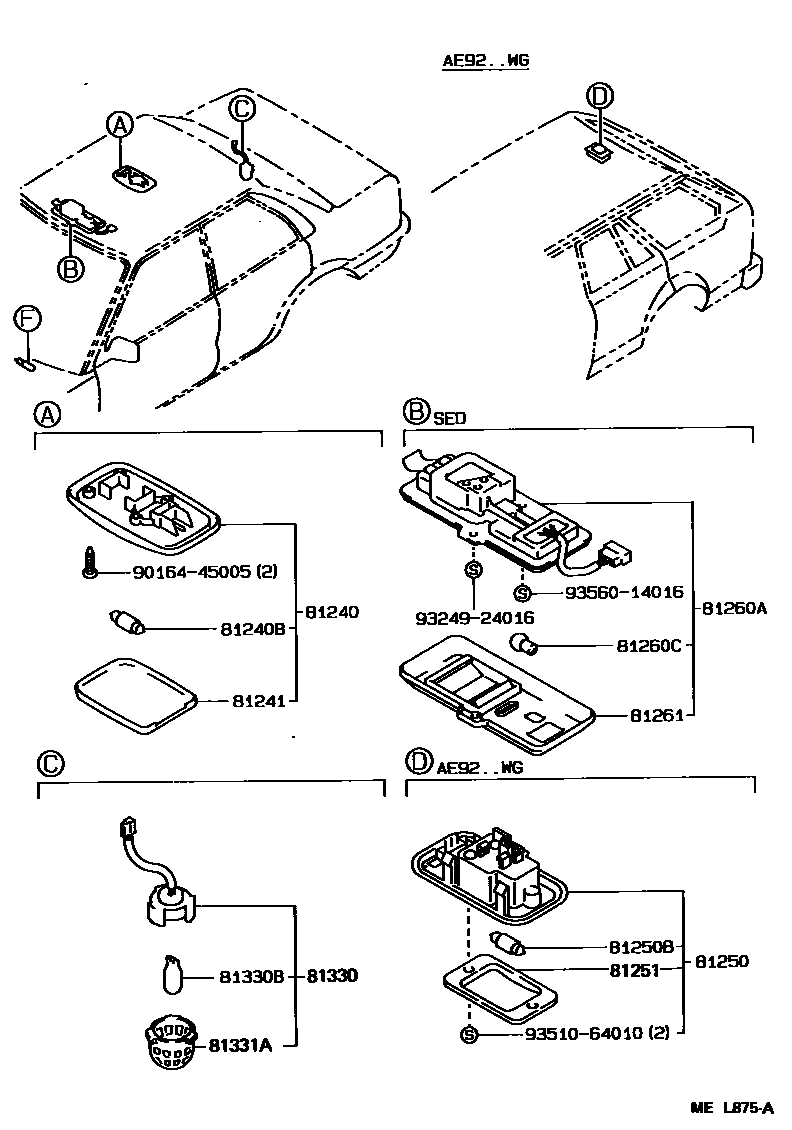

Toyota COROLLA JPP — INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
MAROON,TRIM3#
LIGHT GRAY,TRIM1#
LIGHT BLUE,TRIM8#
LIGHT BEIGE,TRIM4#
LIGHT BROWN,TRIM4#
LIGHT GRAY,TRIM1#
81240BBULB, ROOM LAMP, NO.1
12V 10W
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
LIGHT BLUE,TRIM8#
LIGHT GRAY,TRIM1#
LIGHT BEIGE,TRIM4#
LIGHT BROWN,TRIM4#
81250BBULB, ROOM LAMP, NO.2
12V 5W
81251LENS, ROOM LAMP, NO.2
81260ALAMP ASSY, MAP
GRAY,TRIM1#
BLUE,TRIM8#
BEIGE,TRIM4#
LIGHT BROWN,TRIM4#
MAROON,TRIM3#
LIGHT GRAY,TRIM1#
LIGHT BLUE,TRIM8#
LIGHT BEIGE,TRIM4#
LIGHT BROWN,TRIM4#
LIGHT GRAY,TRIM1#
MAROON,TRIM3#
LIGHT BEIGE,TRIM4#
LIGHT BLUE,TRIM8#
81260CBULB(FOR MAP LAMP)
12V 10W
81261LENS AND COVER, MAP LAMP
GRAY,TRIM1#
BLUE,TRIM8#
BEIGE,TRIM4#
LIGHT BROWN,TRIM4#
MAROON,TRIM3#
LIGHT BEIGE,TRIM4#
LIGHT BROWN,TRIM4#
LIGHT GRAY,TRIM1#
LIGHT BLUE,TRIM8#
LIGHT GRAY,TRIM1#
MAROON,TRIM3#
LIGHT BEIGE,TRIM4#
LIGHT BLUE,TRIM8#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81331ACOVER, LUGGAGE COMPARTMENT LAMP
9016445005
main90164-45005
9324924016
main93249-24016
9351064010
main93510-64010
9356014016
main93560-14016
16 parts on this diagram · 2 diagrams in section
INTERIOR LAMP for Toyota COROLLA JPP
This section contains 21 genuine Toyota parts for the INTERIOR LAMP system of the Toyota COROLLA JPP. Key components include: BULB, ASH RECEPTACLE LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2.
