Toyota COROLLA JPPHORN

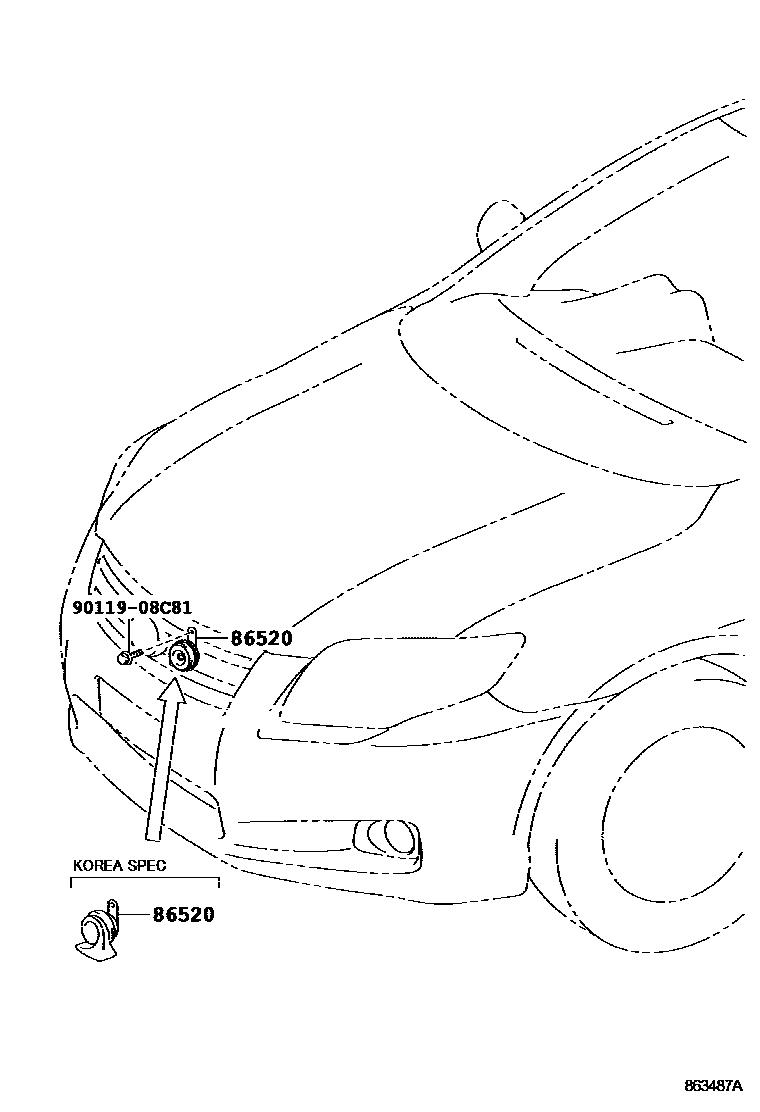

Parts diagram
86520HORN ASSY, LOW PITCHED
main86520-47010i200712-201012
main86520-48040i201012-201308
KOREA SPEC
9011908C81

2 parts on this diagram · 1 diagram in section

HORN for Toyota COROLLA JPP

This section contains 2 genuine Toyota parts for the HORN system of the Toyota COROLLA JPP. Key components include: HORN ASSY, LOW PITCHED.
