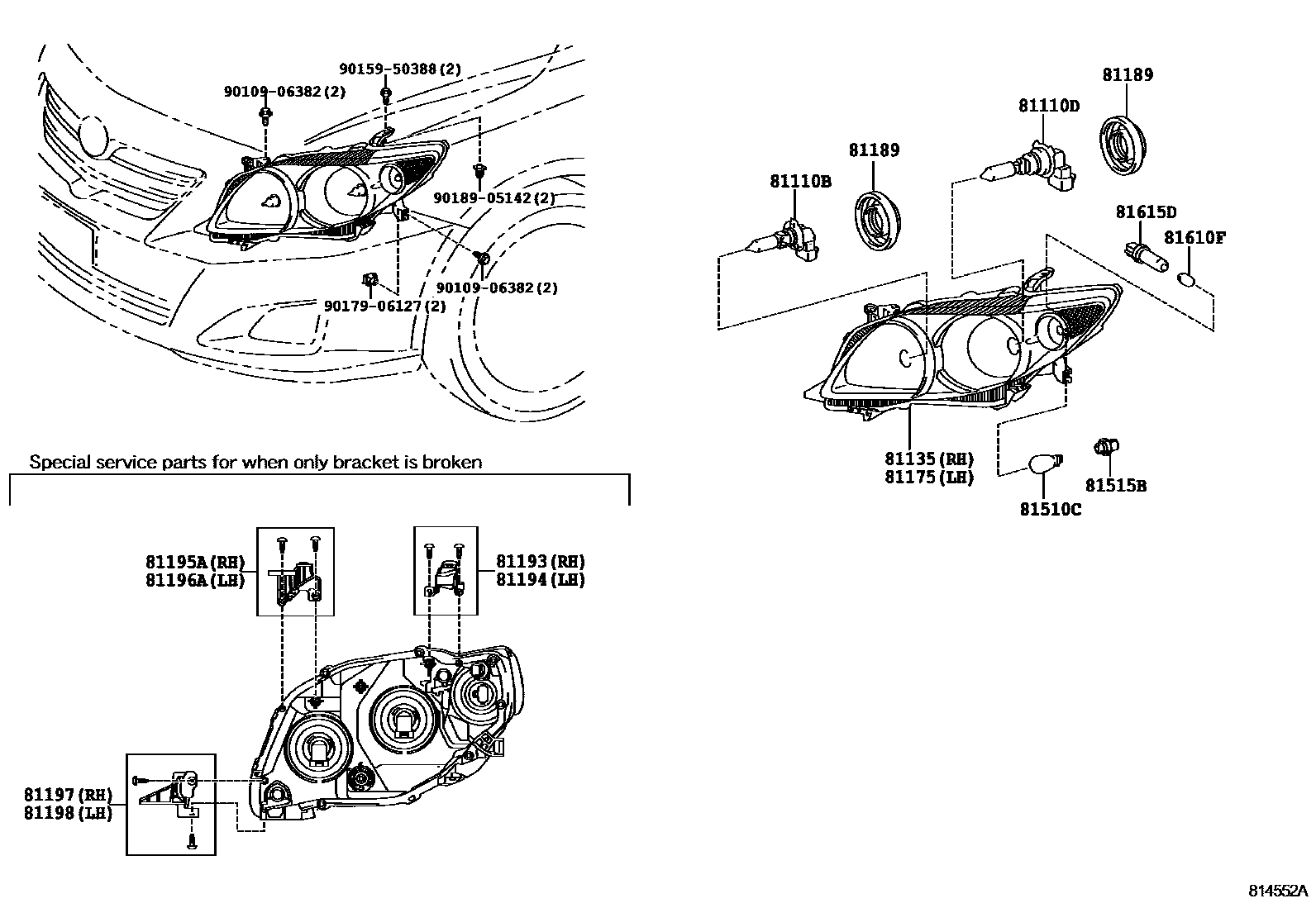

Toyota COROLLA JPP — HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2i200712-200804

12V 65W

main90981-13046×2i200804-201012

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13047×2i200712-201012

12V 51W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-12C20i200712-201012

main81130-12F10i201012-201308

81175UNIT ASSY, HEADLAMP, LH

main81170-12C20i200712-201012

main81170-12F10i201012-201308

81189COVER, HEADLAMP

main90075-65006×4i200712-201012

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-12050i200712-201012

main81193-12120i201012-201308

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-12050i200712-201012

main81194-12110i201012-201308

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-12060i200712-201012

main81195-12170i201012-201308

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-12060i200712-201012

main81196-12170i201012-201308

81197BRACKET, HEADLAMP, LOWER RH

main81197-12060i200712-201012

main81197-12110i201012-201308

81198BRACKET, HEADLAMP, LWR LH

main81198-12060i200712-201012

main81198-12120i201012-201308

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-AF003×2i200712-200803

12V 30/8W

main90981-AF004×2i200804-201012

12V 30/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60060×2i200712-201012

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i200712-201012

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077×2i200712-201012

9010906382

main90109-06382

9015950388

main90159-50388

9017906127

main90179-06127

9018905142

main90189-05142

19 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota COROLLA JPP

This section contains 19 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA JPP. Key components include: BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), UNIT ASSY, HEADLAMP, RH, UNIT ASSY, HEADLAMP, LH, COVER, HEADLAMP.
