Toyota COROLLA JPP — HEADLAMP

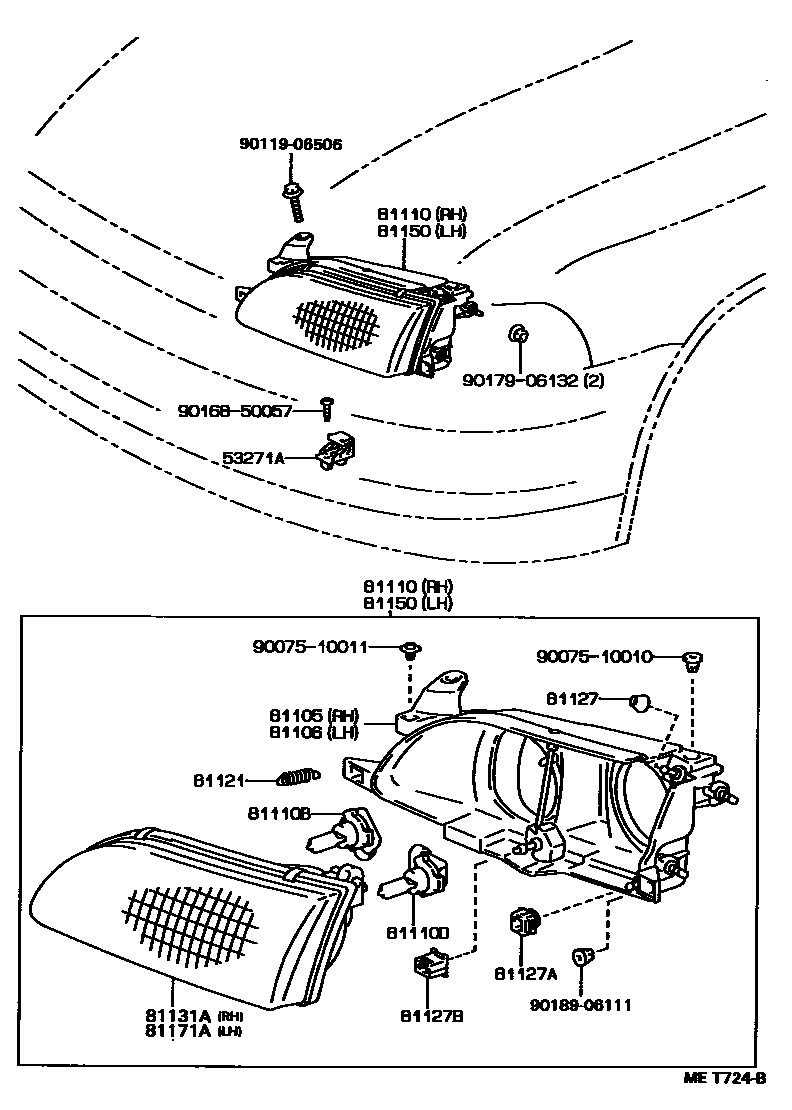

Parts diagram

53271ABRACKET, HEADLAMP MOUNTING

main53271-12040×2i199206-199309

main53271-12060×2i199309

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-1E220i199206

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-1A490i199206

81110HEADLAMP ASSY, RH

main81110-1E220i199206-199305

main81110-1E221i199305

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2i199308

12V 65W

main90981-13046×2i199206-199308

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81040×2i199206-199704

12V 51W

81121SPRING, HEADLAMP TENSION

main90075-25514×2i199206

81127BEARING, HEADLAMP, NO.1

main81127-1A191×2i199206

81127ABEARING, HEADLAMP, NO.2

main81128-22630×2i199206

81127BBEARING, HEADLAMP, NO.3

main90075-10806×2i199206

81131AUNIT, HEADLAMP, RH

main81130-1E220i199206-199305

main81130-1E221i199305

81150HEADLAMP ASSY, LH

main81150-1A490i199206-199305

main81150-1A491i199305

81171AUNIT, HEADLAMP, LH

main81170-1A490i199206-199305

main81170-1A491i199305

9007510010

main90075-10010

9007510011

main90075-10011

9011906506

main90119-06506

9016850057

main90168-50057

9017906132

main90179-06132

9018906111

main90189-06111

19 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota COROLLA JPP

This section contains 19 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA JPP. Key components include: BRACKET, HEADLAMP MOUNTING, HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1).
