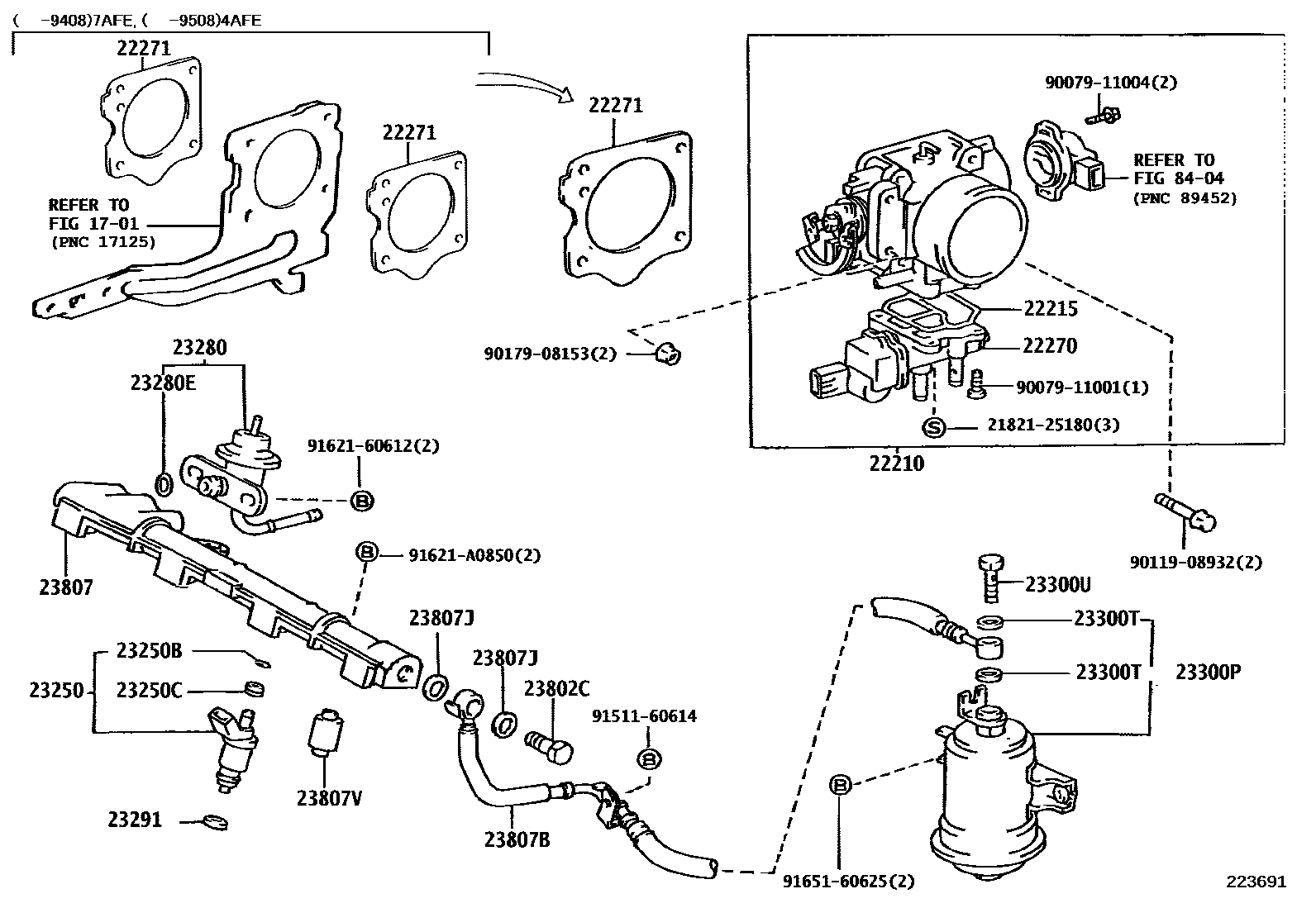

Toyota COROLLA JPP — FUEL INJECTION SYSTEM
1701MANIFOLD
22210BODY ASSY, THROTTLE
CALIFORNIA SPEC
22215GASKET, THROTTLE BODY COVER
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
BRAZIL SPEC
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807BHOSE, FUEL DELIVERY PIPE
23807JGASKET, PIPE FUEL DELIVARY INLET
23807VSPACER, NO.1(FOR DELIVERY PIPE)
8404ELECTRONIC FUEL INJECTION SYSTEM
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
9007911001
main90079-11001
9007911004
main90079-11004
9011908932
main90119-08932
9017908153
main90179-08153
9151160614
main91511-60614
9162160612
main91621-60612
91621A0850
main91621-A0850
9165160625
main91651-60625
29 parts on this diagram · 2 diagrams in section
FUEL INJECTION SYSTEM for Toyota COROLLA JPP
This section contains 44 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota COROLLA JPP. Key components include: MANIFOLD, BODY ASSY, THROTTLE, GASKET, THROTTLE BODY COVER, VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY), GASKET, THROTTLE BODY.
