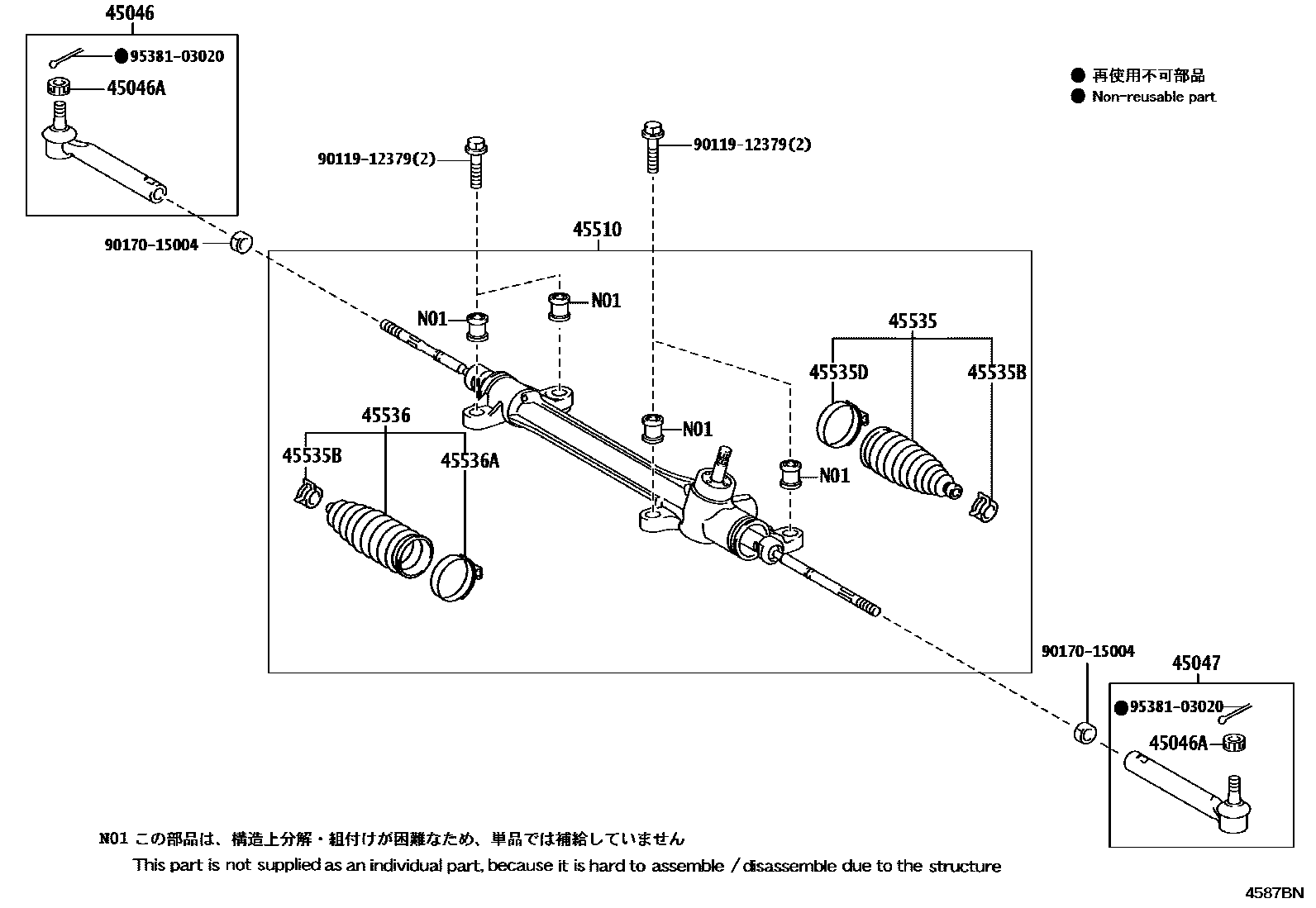

Toyota COROLLA JPP — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-19425i200712-201012

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2i200712-201012

45047END SUB-ASSY, TIE ROD, LH

main45046-19425i200712-201012

45510GEAR ASSY, STEERING

main45510-12450i200712-201012

main45510-12451i201305-201308

45535BOOT, STEERING RACK, NO.1

main45535-29015i200712-201012

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2i200712-201012

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010i200712-201012

45536BOOT, STEERING RACK, NO.2

main45535-29015i200712-201012

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010i200712-201012

9011912379

main90119-12379

9017015004

main90170-15004

9538103020

main95381-03020

12 parts on this diagram · 1 diagram in section

FRONT STEERING GEAR & LINK for Toyota COROLLA JPP

This section contains 12 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota COROLLA JPP. Key components include: END SUB-ASSY, TIE ROD, RH, NUT, CASTLE(FOR TIE ROD END), END SUB-ASSY, TIE ROD, LH, GEAR ASSY, STEERING, BOOT, STEERING RACK, NO.1.
