Toyota COROLLA JPP — FRONT MOULDING

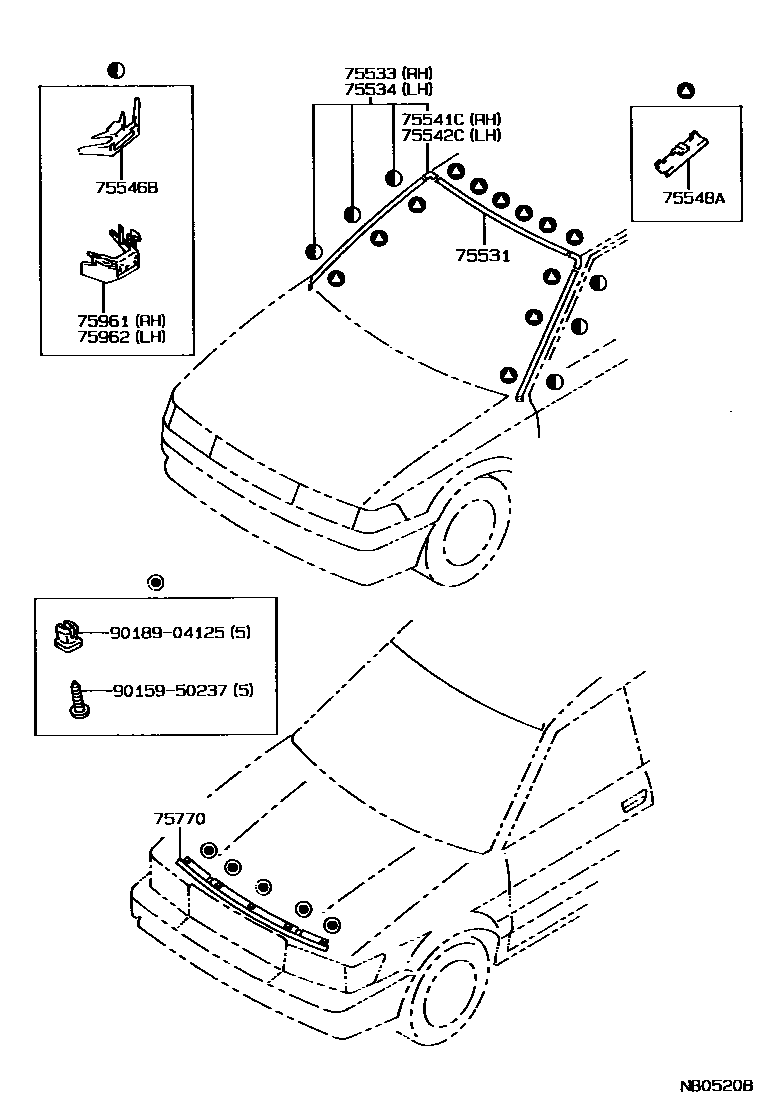

Parts diagram
75531MOULDING, WINDSHIELD, OUTER UPPER
main75531-12290i198708-198908
main75531-12300i198708-199206
main75531-12310i198802-199009
75533MOULDING, WINDSHIELD, OUTSIDE RH
main75533-12290i199202-199206
DX PACKAGE
main75533-12300i198708-199206
main75533-12370i198802-199009
75534MOULDING, WINDSHIELD, OUTSIDE LH
main75534-12220i199202-199206
DX PACKAGE
main75534-12230i198708-199206
main75534-12240i198908-199105
main75534-12300i198802-199009
75541CCOVER, WINDSHIELD MOULDING JOINT, UPPER RH
main75541-12160i199202-199206
DX PACKAGE
main75541-12170i198708-199206
75542CCOVER, WINDSHIELD MOULDING JOINT, UPPER LH
main75542-12130i198708-199206
main75542-12140i198708-199206
75546BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
main75546-12060×8i198708-199206
75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
main75548-16030×8i198708-198908
75770MOULDING ASSY, HOOD, FRONT
main75770-12170i198802-199009
75961CLIP, WINDSHIELD OUTSIDE MOULDING, NO.4
main75961-12010i198708-199206
75962CLIP, WINDSHIELD OUTSIDE MOULDING, NO.5
main75962-12010i198708-199206
9015950237
main90159-50237
9018904125
main90189-04125

12 parts on this diagram · 1 diagram in section

FRONT MOULDING for Toyota COROLLA JPP

This section contains 12 genuine Toyota parts for the FRONT MOULDING system of the Toyota COROLLA JPP. Key components include: MOULDING, WINDSHIELD, OUTER UPPER, MOULDING, WINDSHIELD, OUTSIDE RH, MOULDING, WINDSHIELD, OUTSIDE LH, COVER, WINDSHIELD MOULDING JOINT, UPPER RH, COVER, WINDSHIELD MOULDING JOINT, UPPER LH.
