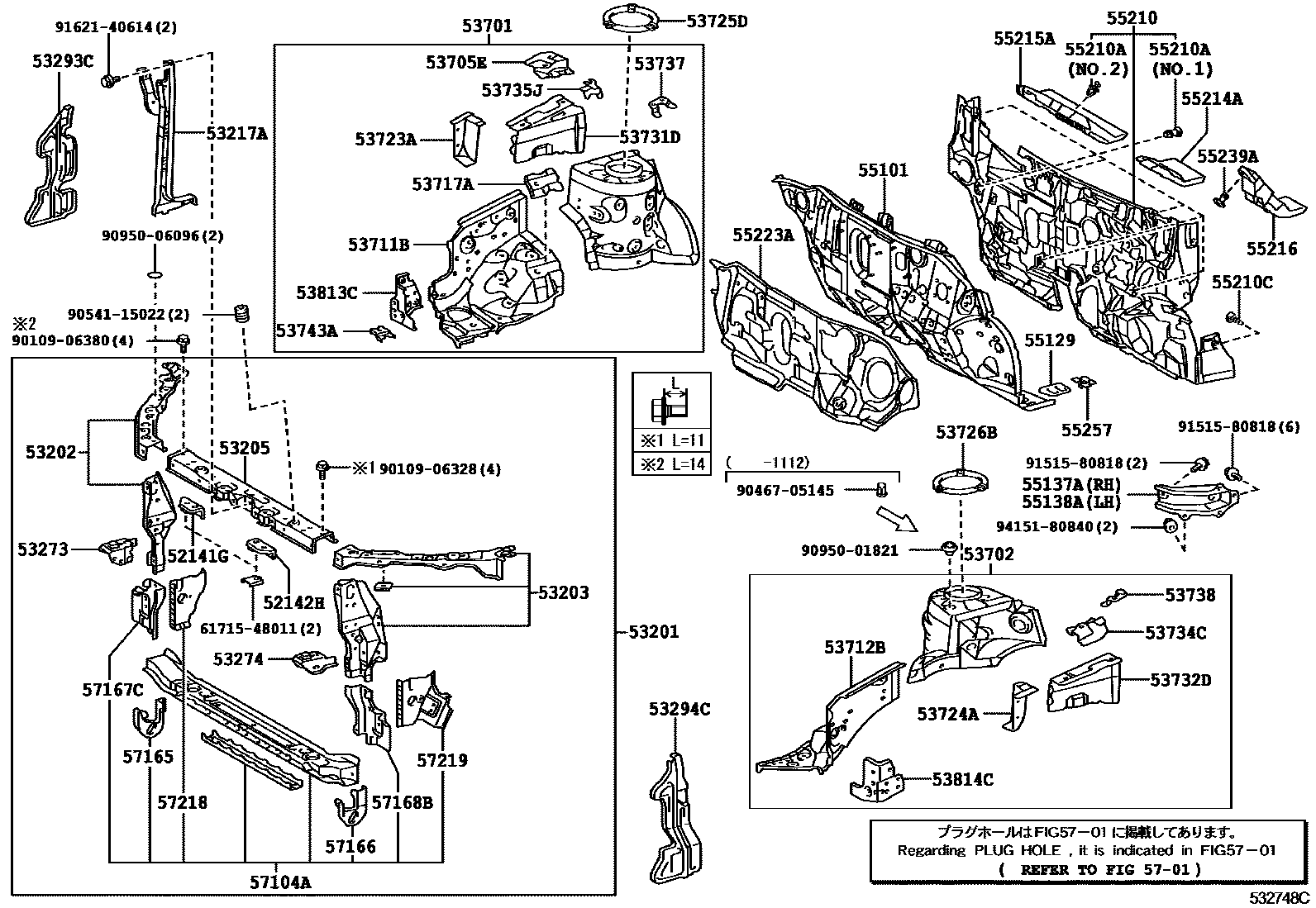

Toyota COROLLA JPP — FRONT FENDER APRON & DASH PANEL

Parts diagram
52141GSTAY, FRONT BUMPER, RH
main52141-12550i201012-201308
52142HSTAY, FRONT BUMPER, LH
main52142-12470i200712-201012
53201SUPPORT SUB-ASSY, RADIATOR
main53201-12B50i200712-201012
sub53201-12B70
53202SUPPORT SUB-ASSY, RADIATOR, RH
main53202-12540i200712-201012
53203SUPPORT SUB-ASSY, RADIATOR, LH
main53203-12470i200712-201012
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
main53205-12291i200712-201012
53217ABRACE, HOOD LOCK SUPPORT
main53208-12540i200712-201012
53273BRACKET, FRONT BUMPER ARM MOUNTING, RH
main53273-12120i200712-201012
53274BRACKET, FRONT BUMPER ARM MOUNTING, LH
main53274-12120i200712-201012
53293CDEFLECTOR, RADIATOR SIDE, RH
main53293-12080i200712-201012
main53293-12150i201012-201308
53294CDEFLECTOR, RADIATOR SIDE, LH
main53294-12110i200712-201012
main53294-12170i201012-201308
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-12A20i200712-201012
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-12A30i200712-201012
sub90950-01821
main53702-12A31i201112-201308
53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
main53705-12020i200712-201012
53711BAPRON, FRONT FENDER, FRONT RH
main53711-12280i200712-201012
53712BAPRON, FRONT FENDER, FRONT LH
main53712-12230i200712-201012
53717APLATE, FENDER APRON
main53717-12060i200712-201012
53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH
main53723-12080i200712-201012
53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH
main53724-12070i200712-201012
53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH
main53723-12091i200712-201005
main53723-12110i201006-201012
53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH
main53723-12091i200712-201005
main53723-12110i201006-201012
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
main53731-12160i200712-201012
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
main53732-12140i200712-201012
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
main53706-12040i200712-201012
53735JPATCH, FRONT FENDER APRON, NO.5
main53735-12080i200712-201012
53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
main53737-12110i201012-201308
53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
main53738-12070i201012-201308
53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH
main53743-12050i200712-201012
53813CEXTENSION, FRONT FENDER, RH
main53803-12060i200712-201012
53814CEXTENSION, FRONT FENDER, LH
main53814-12090i200712-201012
55101PANEL SUB-ASSY, DASH
main55101-12D40i200712-201012
55129COVER, DASH PANEL HOLE
main55129-32030i200712-201012
RH
main55139-32010i201012-201308
LH
55137ABRACE, DASH TO FRAME, RH
main55137-12060i201012-201308
55138ABRACE, DASH TO FRAME, LH
main55138-12030i200712-201012
55210INSULATOR ASSY, DASH PANEL
main55210-12590i200712-201002
main55210-12591i201012-201308
55210ACLIP
main90467-11122×6i200712-201012
NO.1
main90467-11127×2i200712-201012
NO.2
55210CCLIP
main90467-08186-C0×4i200712-201012
BLACK
55214APAD, DASH PANEL INSULATOR, NO.2
main55214-12050i200712-201003
main55214-12100i201004-201012
55215APAD, DASH PANEL INSULATOR, NO.3
main55215-12130i200712-201012
55216PAD, DASH PANEL INSULATOR, NO.4
main55216-12030i200712-201012
55223AINSULATOR, DASH PANEL, OUTER
main55223-12190i200712-201012
55239APLATE, DASH PANEL INSULATOR, NO.3
main55239-48020i200712-201012
55257COVER, DASH PANEL OPENING
main55257-32010×2i200712-201012
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
main57104-12291i200712-201012
57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
main57165-12070i200712-201012
57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
main57166-12020i200712-201012
57167CGUSSET, FRONT CROSSMEMBER SIDE, RH
main57167-12130i200712-201012
57168BGUSSET, FRONT CROSSMEMBER SIDE, LH
main57168-12130i200712-201012
57218GUSSET, FRONT SIDE MEMBER, NO.1
main57218-12030i200712-201012
57219GUSSET, FRONT SIDE MEMBER, NO.2
main57219-12030i200712-201012
6171548011REINFORCEMENT, ROOF SIDE, INNER REAR RH
main61715-48011
9010906328
main90109-06328
9010906380
main90109-06380
9046705145
main90467-05145
9054115022
main90541-15022
9095001821
main90950-01821
9095006096
main90950-06096
9151580818
main91515-80818
9162140614
main91621-40614
9415180840
main94151-80840

61 parts on this diagram · 1 diagram in section
