Toyota COROLLA JPP — FRONT FENDER APRON & DASH PANEL

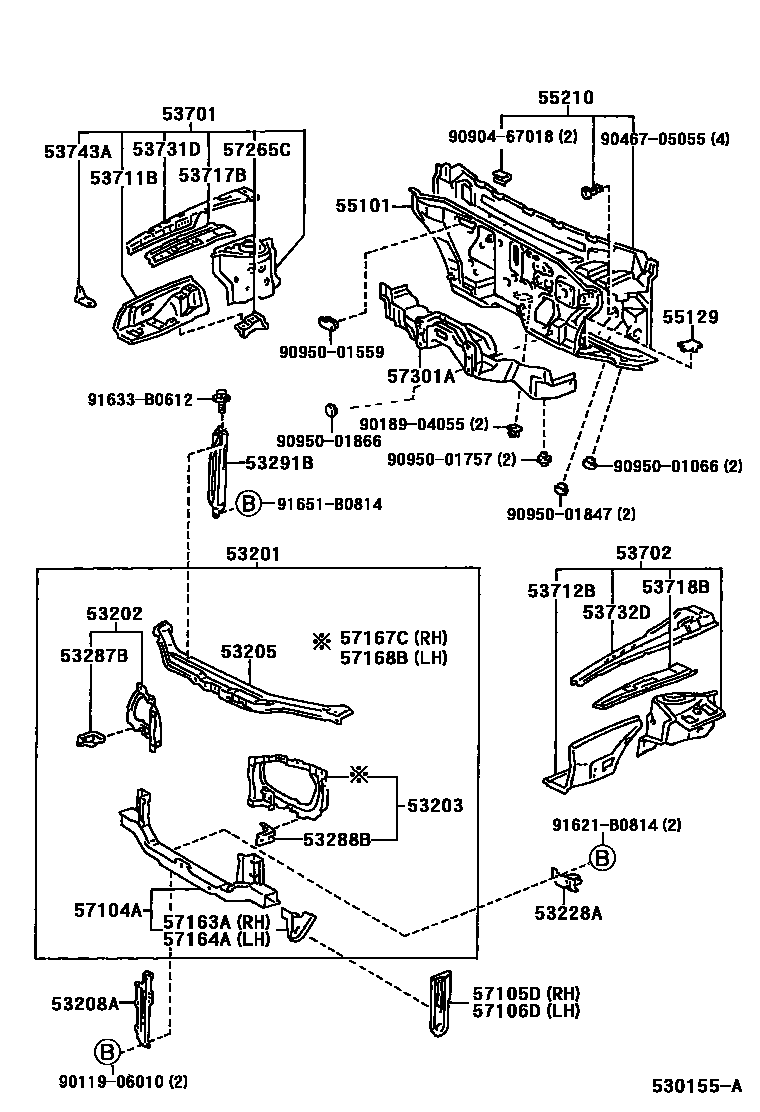

Parts diagram
53201SUPPORT SUB-ASSY, RADIATOR
main53201-1A030i199206-199408
main53201-1A070i199408
53202SUPPORT SUB-ASSY, RADIATOR, RH
main53202-12320i199206
53203SUPPORT SUB-ASSY, RADIATOR, LH
main53203-12280i199206
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
main53205-12100i199206
sub53205-12110
53208ASUPPORT SUB-ASSY, HOOD LOCK
main53215-12200i199206
53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1
main53228-12130i199206
53287BEXTENSION, RADIATOR SUPPORT, RH
main53287-12030i199206
53288BEXTENSION, RADIATOR SUPPORT, LH
main53288-12030i199206
53291BPLATE, RADIATOR COVER
main53291-12100i199206
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-1A052i199508
main53701-1A060i199206-199411
main53701-1A061i199411-199508
sub53701-1A062
main53701-1A070i199206-199411
W(*66)
main53701-1A071i199411-199508
W(*66)
sub53701-1A072
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-1A042i199508
main53702-1A050i199206-199411
main53702-1A051i199411-199508
sub53702-1A052
sub90119-06390
sub90119-06859
53711BAPRON, FRONT FENDER, FRONT RH
main53711-12220i199206-199411
main53711-12221i199411-199508
main53711-12902i199508
53712BAPRON, FRONT FENDER, FRONT LH
main53712-12180i199206-199411
main53712-12181i199411-199508
sub90119-06390
sub90119-06770
main53712-12182i199508
53717BGUSSET, FENDER APRON, RH
main53717-12050i199206-199501
main53717-12051i199501
53718BGUSSET, FENDER APRON, LH
main53718-12050i199206-199501
main53718-12051i199501
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
main53731-12150i199206
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
main53732-12130i199206
53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH
main53743-12040i199206
55101PANEL SUB-ASSY, DASH
main55101-1A560i199211-199505
sub90115-06165
main55101-1A561i199505-199508
sub90333-25003
main55101-1A570i199206-199211
W(*CRC)
sub90115-06165
main55101-1A571i199505-199508
W(*CRC)
sub90333-25003
main55101-1A880i199206-199505
sub90115-06165
main55101-1A881i199505-199508
sub90333-25003
main55101-1A890i199206-199505
W(*CRC)
sub90115-06165
main55101-1A891i199505-199508
W(*CRC)
sub90333-25003
main55101-1E021i199508
main55101-1E031i199508
55129COVER, DASH PANEL HOLE
main55129-12030×2i199206
55210INSULATOR ASSY, DASH PANEL
main55210-12410i199206
57104AMEMBER SUB-ASSY, FRONT CROSS
main57104-12010i199206
57105DPLATE SUB-ASSY, FRONT SIDE MEMBER, RH
main57105-12070i199206-199505
sub90159-60500
sub90189-06006
main57105-12071i199505
57106DPLATE SUB-ASSY, FRONT SIDE MEMBER, LH
main57106-12070i199206-199505
sub90159-60500
sub90189-06006
main57106-12071i199505
57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH
main57163-12110i199206
57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH
main57164-12060i199206
57167CGUSSET, FRONT CROSSMEMBER SIDE, RH
main57167-12100i199206
57168BGUSSET, FRONT CROSSMEMBER SIDE, LH
main57168-12100i199206
57265CBRACKET, ENGINE MOUNTING, RH
main57265-12050i199206
57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
main57301-12140i199206-199505
sub90119-14048
main57301-12190i199505
9011906010
main90119-06010
9018904055
main90189-04055
9046705055
main90467-05055
9090467018
main90904-67018
9095001066
main90950-01066
9095001559
main90950-01559
9095001757
main90950-01757
9095001847
main90950-01847
9095001866
main90950-01866
91621B0814
main91621-B0814
91633B0612
main91633-B0612
91651B0814
main91651-B0814

42 parts on this diagram · 1 diagram in section
