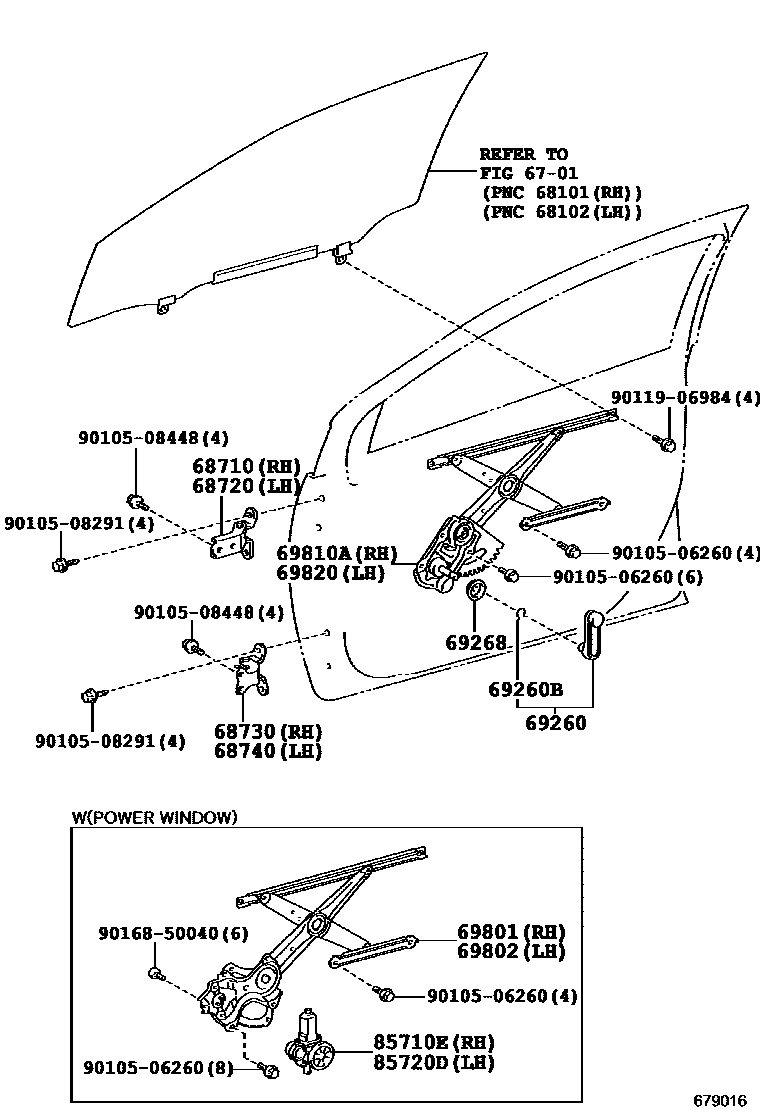

Toyota COROLLA JPP — FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151i200712-201012

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151i201012-201308

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120i200712-201012

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120i200712-201012

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-52070-B1×2i200712-201012

GRAY,TRIM1#; POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GRAY,TRIM1#

main69260-52070-E0×2i201012-201308

GRADE MARK-LE,GREGE,TRIM4#; GREGE,TRIM4#; POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GREGE,TRIM4#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×8i201012-201308

GRADE MARK-LE; POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)

69268PLATE, WINDOW REGULATOR HANDLE

main69268-12020×2i200712-201012

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12220i200712-201012

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12220i200712-201012

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-12690i200712-201012

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-12670i200712-201012

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35180i200712-201012

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-35140i200712-201012

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9011906984

main90119-06984

9016850040

main90168-50040

19 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota COROLLA JPP

This section contains 19 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota COROLLA JPP. Key components include: FRONT DOOR PANEL & GLASS, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
