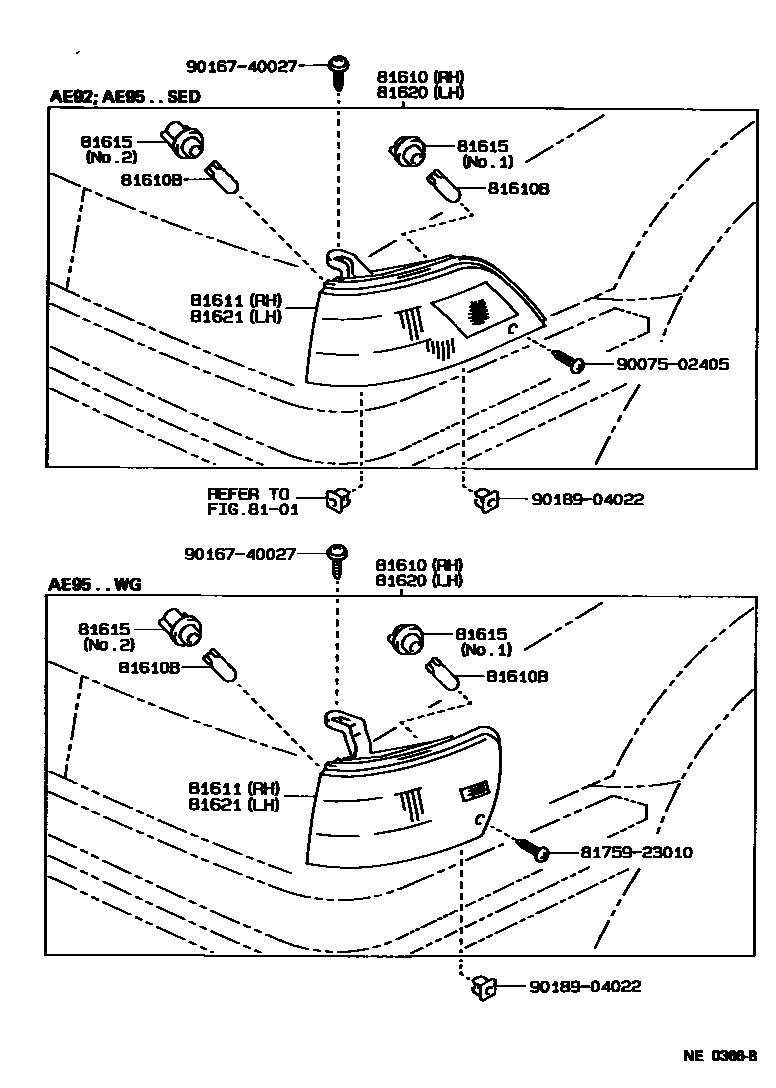

Toyota COROLLA JPP — FRONT CLEARANCE LAMP

8101HEADLAMP

→ Go to FIG 81-01

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-12410i198708-199206

main81610-12440i198802-199009

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-11020×4i198708-199206

12V 3.8W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-12410i198708-199206

main81611-12440i198802-199009

81615SOCKET AND WIRE, CLEARANCE LAMP

main90075-99003×2i198708-199206

NO.2

main90075-99007×2i198708-199206

NO.1

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-12410i198708-199206

main81620-12440i198802-199009

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-12410i198708-199206

main81621-12440i198802-199009

8175923010RETAINER, REAR SIDE MARKER LAMP, RH

main81759-23010

9007502405

main90075-02405

9016740027

main90167-40027

9018904022

main90189-04022

11 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota COROLLA JPP

This section contains 11 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota COROLLA JPP. Key components include: HEADLAMP, LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP.
