Toyota COROLLA JPP — FRONT BUMPER & BUMPER STAY

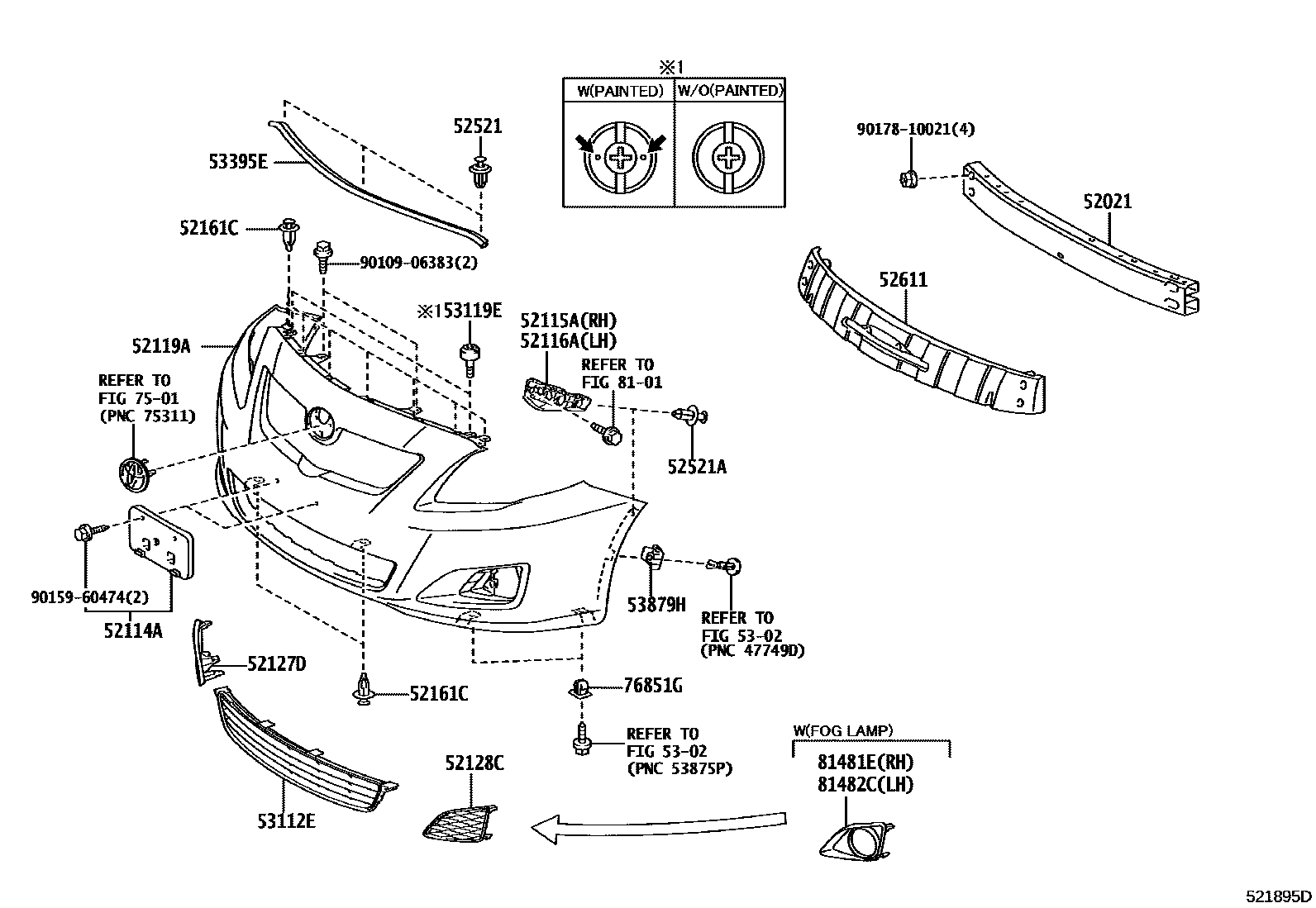

Parts diagram
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
main52021-12330i200712-200812
main52021-12331i201012-201308
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
main52114-12120i200712-201012
main52114-12170i201012-201308
52115ASUPPORT, FRONT BUMPER SIDE, RH
main52115-12430i200712-201012
main52115-12460i201012-201308
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52116-12390i200712-201012
main52116-12420i201012-201308
52119ACOVER, FRONT BUMPER
main52119-02990i200801-201012
PAINT REQ.
main52119-12945i200712-200801
PAINT REQ.
main52119-12963i201012-201207
PAINT REQ.
52127DCOVER, FRONT BUMPER HOLE, RH
main81481-12080i200712-201012
main81481-12170i201012-201308
52128CCOVER, FRONT BUMPER HOLE, LH
main81482-12060i200712-201012
main81482-12120i201012-201308
52161CPIECE, FRONT BUMPER
main52161-16010×10i201012-201308
52521RETAINER, FRONT BUMPER, UPPER CENTER
main90467-05063-C0×3i200712-201012
BLACK
52521ACLIP(FOR FRONT BUMPER RETAINER)
main90467-05090-B1×2i200712-201012
DK.GRAY
main90467-05170×2i201208-201308
52611ABSORBER, FRONT BUMPER ENERGY
main52611-12220i200712-201012
main52611-12310i201012-201308
5302HOOD & FRONT FENDER
→ Go to FIG 53-02
53112EGRILLE, RADIATOR, LOWER NO.1
main53112-12210i200712-201012
NO PAINT REQ.
main53112-12230i201012-201308
NO PAINT REQ.
53119EPROTECTOR, RADIATOR GRILLE
main53119-12170×2i200712-200810
W(PAINTED)
main53119-42020×2i200712-200810
W/O(PAINTED)
53395ESEAL, HOOD TO FRONT END PANEL
main53395-12050i200712-201012
53879HRETAINER, FRONT FENDER LINER
main53879-58010×2i200712-201012
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
→ Go to FIG 75-01
76851GGROMMET, SCREW, NO.1
main90189-06193×4i200712-201012
8101HEADLAMP
→ Go to FIG 81-01
81481ECOVER, FOG LAMP, RH
main81481-12090i200712-201012
FRONT FOG LAMP-WITH
main81481-12180i201012-201308
FRONT FOG LAMP-WITH
81482CCOVER, FOG LAMP, LH
main81482-12070i200712-201012
FRONT FOG LAMP-WITH
main81482-12130i201012-201308
FRONT FOG LAMP-WITH
9010906383
main90109-06383
9015960474
main90159-60474
9017810021
main90178-10021

24 parts on this diagram · 2 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota COROLLA JPP

This section contains 24 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota COROLLA JPP. Key components include: REINFORCEMENT SUB-ASSY, FRONT BUMPER, BRACKET, FRONT BUMPER EXTENSION MOUNTING, SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH, COVER, FRONT BUMPER.
