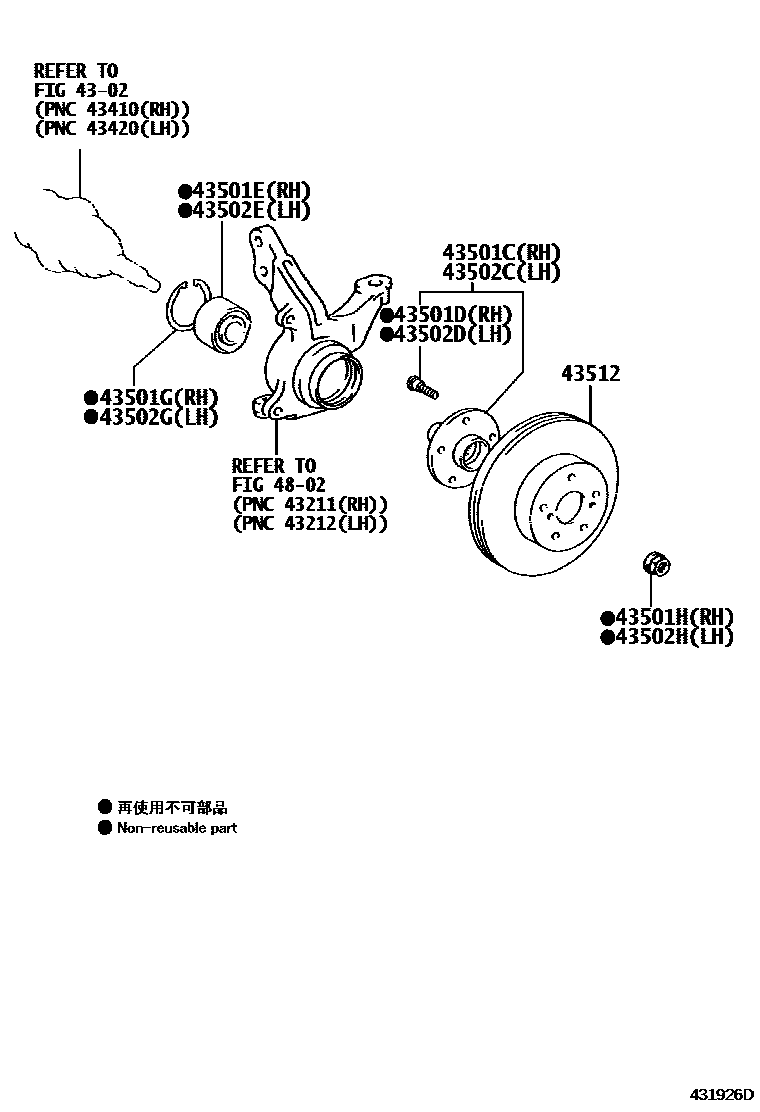

Toyota COROLLA JPP — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-32080iZRE142..JPP200712-201308

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iZRE142..JPP200712-201012

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40066iZRE142..JPP200712-201012

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002iZRE142..JPP200712-201012

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iZRE142..JPP200712-201308

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-32080iZRE142..JPP200712-201012

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iZRE142..JPP200712-201012

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40066iZRE142..JPP200712-201012

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002iZRE142..JPP200712-201012

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iZRE142..JPP200712-201308

43512DISC, FRONT

main43512-12710iZRE142..JPP200712-201308

4802

13 parts on this diagram · 1 diagram in section
