Toyota COROLLA JPP — FRONT AXLE HUB

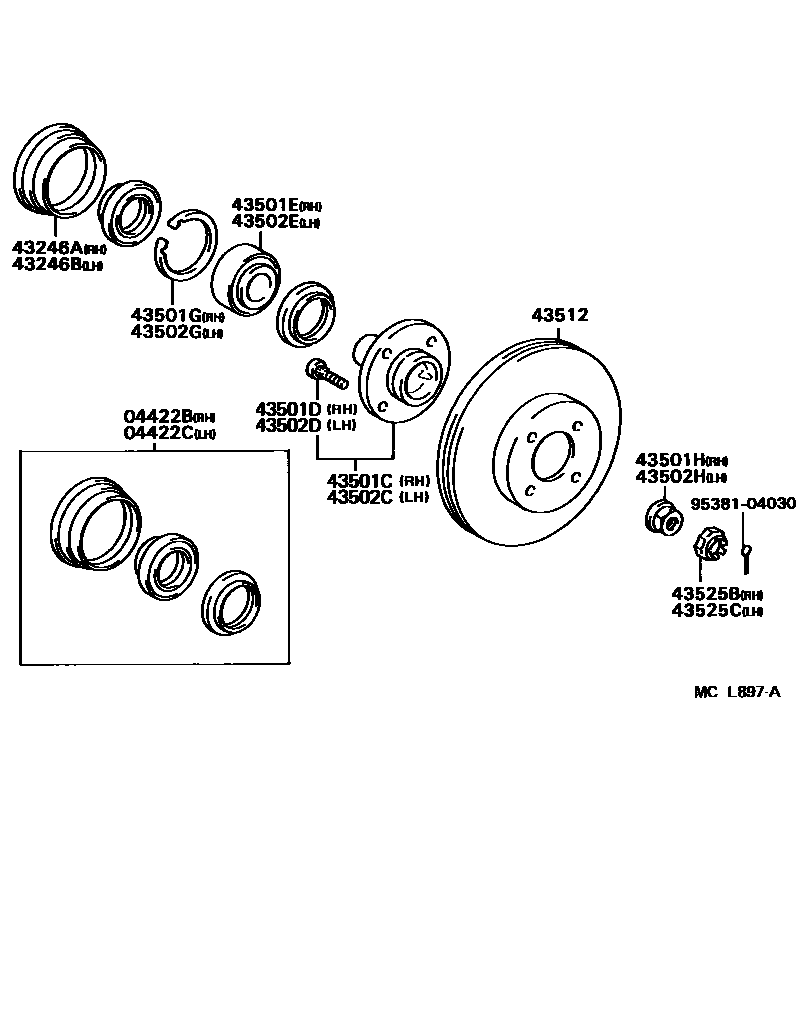

Parts diagram
04422BSEAL KIT, FRONT AXLE OIL, RH
main04422-12050i199206-199505
W(*66)
main04422-12070i199206-199505
main04422-12091i199608-199704
main04422-12100i199505-199608
W(*66)
04422CSEAL KIT,FRONT AXLE OIL, LH
main04422-12050i199206-199505
W(*66)
main04422-12070i199206-199505
main04422-12091i199505-199608
main04422-12100i199608-199704
W(*66)
43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
main43246-12010i199206-199505
main43246-12020i199608-199704
W(*66)
main43246-12040i199608-199704
43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
main43246-12010i199206-199505
main43246-12020i199608-199704
W(*66)
main43246-12040i199505-199608
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43502-12090i199206
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02049×4i199206
43501EBEARING (FOR FRONT AXLE HUB RH)
main90363-38006i199308
main90369-38011i199206-199308
43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
main90521-77001i199206
43501HNUT (FOR FRONT AXLE SHAFT RH)
main90179-22020i199206
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43502-12090i199206
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02049×4i199206
43502EBEARING (FOR FRONT AXLE HUB LH)
main90363-38006i199308
main90369-38011i199206-199308
43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)
main90521-77001i199206
43502HNUT (FOR FRONT AXLE SHAFT LH)
main90179-22020i199206
43512DISC, FRONT
main43512-12550×2i199206
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
main43525-20030i199206
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
main43525-20030i199206
9538104030
main95381-04030

18 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota COROLLA JPP

This section contains 18 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COROLLA JPP. Key components include: SEAL KIT, FRONT AXLE OIL, RH, SEAL KIT,FRONT AXLE OIL, LH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH.
