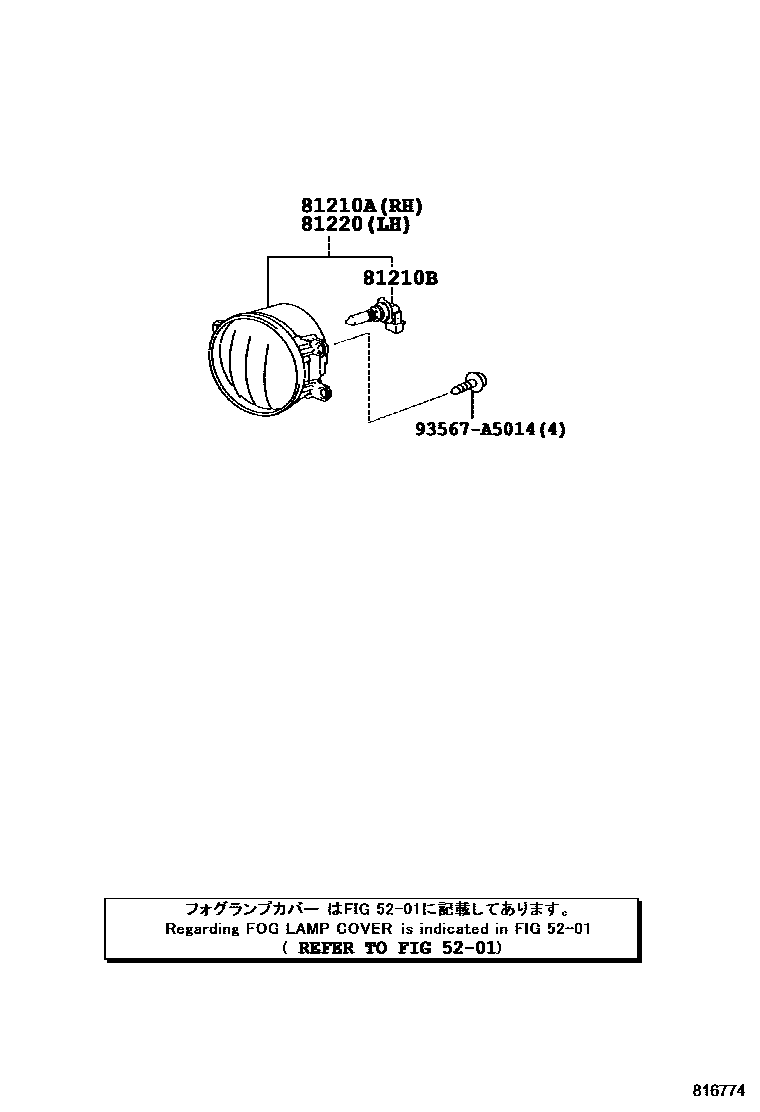

Toyota COROLLA JPP — FOG LAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-0D041i200712-201004

FRONT FOG LAMP-WITH

main81210-0D042i201005-201012

FRONT FOG LAMP-WITH

81210BBULB, FOG LAMP

main90981-13075×2i201012-201308

12V 55W,HALOGEN,FRONT FOG LAMP-WITH,PHILIPS

main90981-13081×2i200712-201012

12V 55W,HALOGEN,FRONT FOG LAMP-WITH,OSRAM

81220LAMP ASSY, FOG, LH

main81220-0D041i200712-201004

FRONT FOG LAMP-WITH

main81220-0D042i201005-201012

FRONT FOG LAMP-WITH

93567A5014

main93567-A5014

5 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota COROLLA JPP

This section contains 5 genuine Toyota parts for the FOG LAMP system of the Toyota COROLLA JPP. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP ASSY, FOG, LH.
