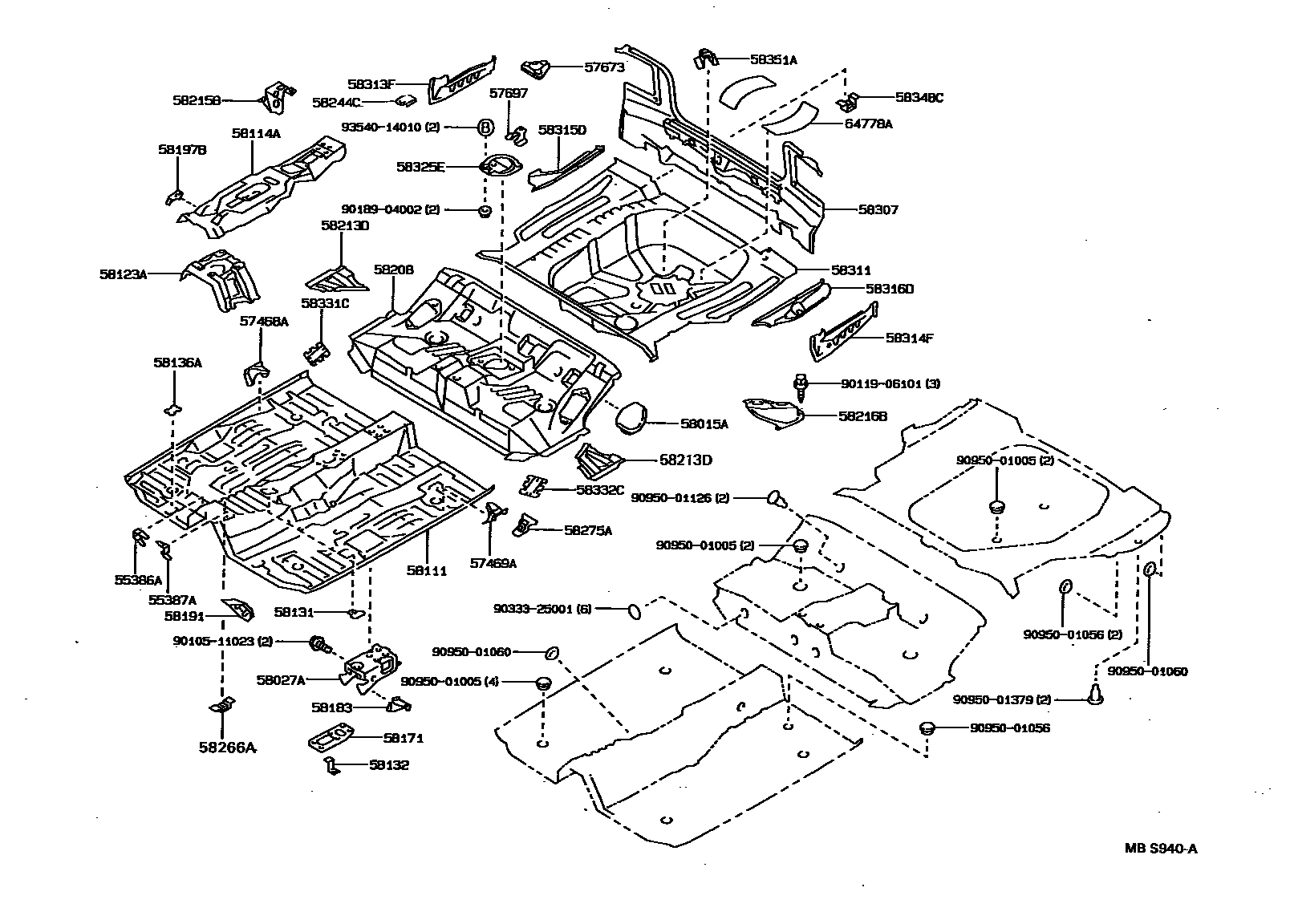

Toyota COROLLA JPP — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

55386ABRACKET, COMPUTER MOUNTING, NO.1

main55386-12040iAE92198708-199206

main55386-12050iAE95198802-199009

55387ABRACKET, COMPUTER MOUNTING, NO.2

main55387-12020iAE92198708-199206

main55387-12050iAE95198802-199009

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-12030iAE92198708-199206

main57468-12040iAE95198802-199009

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-12030iAE92198708-199206

main57469-12040iAE95198802-199009

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57607-12020iAE92..DX,LE199008-199206

main57607-12030iAE95..WG198802-199009

main57673-12060iAE95..SED198808-199008

57697RETAINER, REAR SEAT CUSHION

main57697-12020iAE9#199008-199206

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12020×2iAE92..CBR;AE92..(DX,STD)..EFI198708-199008

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12030iAE92198708-198808

main58027-12040iAE95198802-199009

main58027-12050iAE92198905-198908

main58027-12060×2iAE92..CND198908-198911

58111PAN, FRONT FLOOR

main58111-12200iAE92198708-199206

main58111-12210iAE95198802-199008

sub90950-01060

main58111-12211iAE95199008-199009

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-12050iAE92198708-199206

main58114-12060iAE95198802-199008

main58114-12061iAE95199008-199009

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-12040iAE92198708-199206

main58123-12050iAE95198802-199009

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-12050iAE95198802-199009

main58131-12060iAE92198708-199206

58132BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2

main58132-32010×2iAE92198708-199206

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12020×2iAE92198708-198905

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-12080iAE92198708-199206

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-12090iAE92198708-199206

RH

main58183-12110iAE95198802-199009

RH

main58184-12110iAE92198708-199206

LH

main58184-12120iAE95198802-199009

LH

58191FOOTREST, FRONT FLOOR

main58192-12040iAE9#..LE,SR5198709-198908

main58192-12050iAE92..LE198708-198709

58197BRETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET

main58197-12010×2iAE9#198708-199206

58208PAN, CENTER FLOOR

main58211-12170iAE92..LE;AE92..WG198708-199206

REAR SPLIT FOLD DOWN SEAT

main58211-12180iAE92..SED..(DX,STD)198708-199206

FIXED SEAT

main58211-12240iAE95198802-198808

main58211-12241iAE95198808-199009

main58211-12260iAE92..SED..(DX,STD)198808-199206

FIXED SEAT,SEAT BELT HOLE

main58211-12270iAE92..LE;AE92..WG198808-199206

REAR SPLIT FOLD DOWN SEAT,SEAT BELT HOLE

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-12020iAE92..CBR;AE92..(DX,STD)..EFI198708-199008

RH

main58214-12010iAE92199008-199206

LH

58215BBRACKET, REAR SEAT MOUNTING, RH

main58215-16010iAE92198708-199206

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-16010iAE92198708-199206

58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-16030×4iAE92..CBR;AE92..(DX,STD)..EFI198708-199008

58266ABRACKET, FUEL TUBE CLAMP

main58266-22040×3iAE9#198708-199206

58275ARETAINER, REAR SEATBACK TO CENTER FLOOR

main58275-12010×2iAE95..SED198808-199008

main58275-12020×2iAE92..SED..(DX,STD)198708-199206

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-1A160iAE92..SED198708-198910

main58307-1A161iAE92..SED198910-199206

main58307-1A180iAE95..SED198808-198908

main58307-1A181iAE95..SED198908-199008

58311PAN, REAR FLOOR

main58311-12120iAE92198708-199206

main58311-12190iAE95..WG198802-199009

main58311-12200iAE95..SED198808-199008

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-12210iAE92..SED..CBR;AE92..SED..(DX,STD)..EFI198708-199008

main58313-12230iAE95..WG198802-199009

main58313-12240iAE95..SED198808-199008

main58313-13100iAE92..WG198710-199206

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-12210iAE92..SED..CBR;AE92..SED..(DX,STD)..EFI198708-199008

main58314-12230iAE95..WG198802-199009

main58314-12240iAE95..SED198808-199008

main58314-13090iAE92..WG198710-199206

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-12030iAE92..SED198708-199206

main58315-12050iAE95..WG198802-199009

main58315-12060iAE95..SED198808-199008

main58315-13010iAE92..WG198710-199206

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-12030iAE92..SED198708-199206

main58316-12050iAE95..WG198802-199009

main58316-12060iAE95..SED198808-199008

main58316-13010iAE92..WG198710-199206

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12020iAE92198708-199206

main58325-12060iAE95198802-199009

58331CCOVER, REAR FLOOR SIDE SERVICE HOLE, RH

main58331-12010iAE92..CBR;AE92..(DX,STD)..EFI198808-199008

58332CCOVER, REAR FLOOR SIDE SERVICE HOLE, LH

main58332-12010iAE92..CBR;AE92..(DX,STD)..EFI198808-199008

58348CBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58348-12010iAE92198708-199206

58351ABRACKET, SPARE WHEEL CARRIER

main58351-12020iAE92198708-199206

64778APROTECTOR, SPARE WHEEL

main64778-12050×2iAE9#198708-199206

sub64778-12030

9010511023

main90105-11023

9011906101

main90119-06101

9018904002

main90189-04002

9033325001

main90333-25001

9095001005

main90950-01005

9095001056

main90950-01056

9095001060

main90950-01060

9095001126

main90950-01126

9095001379

main90950-01379

9354014010

main93540-14010

47 parts on this diagram · 4 diagrams in section
