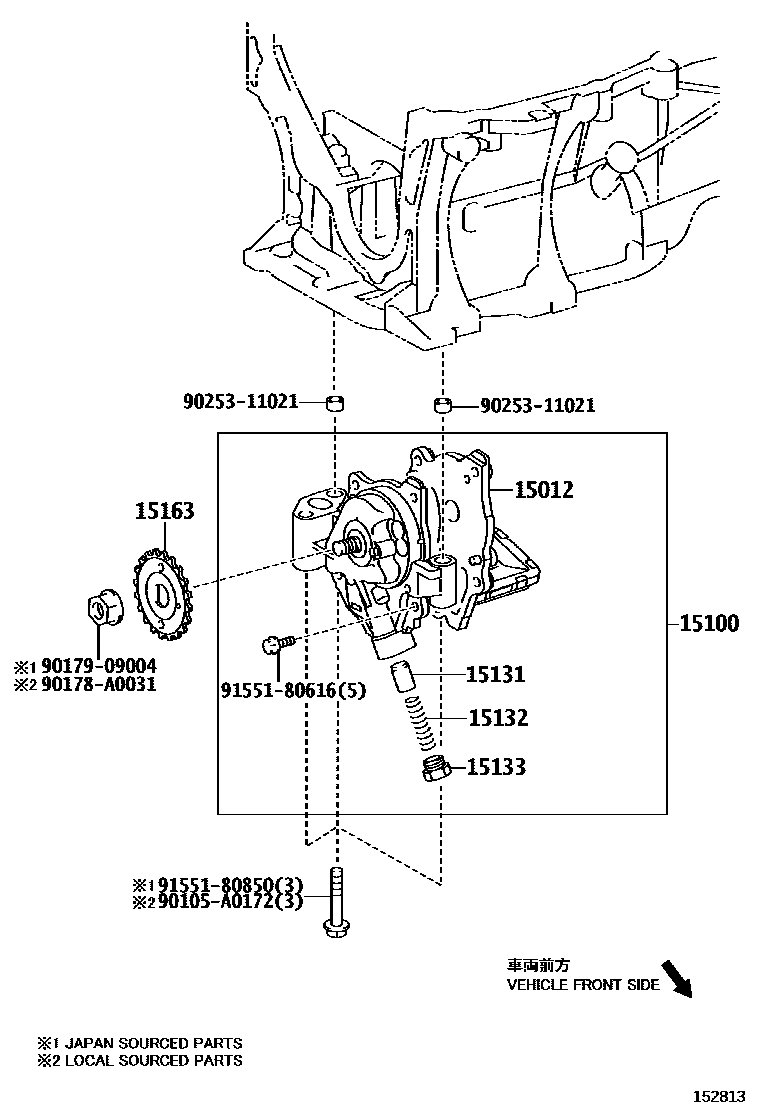

Toyota COROLLA JPP — ENGINE OIL PUMP

15012COVER SUB-ASSY, OIL PUMP

main15012-0T010i200807-201012

(L)

main15012-37010i201012-201308

(J)

15100PUMP ASSY, OIL

main15100-0T010i201012-201308

(L)

main15100-37030i201012-201308

(J)

15131VALVE, OIL PUMP RELIEF

main15131-0A040i201012-201308

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46060i200712-201012

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i200712-201012

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0H010i201012-201308

(L)

main15163-28010i201012-201308

(J)

90105A0172

main90105-A0172

90178A0031

main90178-A0031

9017909004

main90179-09004

9025311021

main90253-11021

9155180616

main91551-80616

9155180850

main91551-80850

12 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota COROLLA JPP

This section contains 12 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota COROLLA JPP. Key components include: COVER SUB-ASSY, OIL PUMP, PUMP ASSY, OIL, VALVE, OIL PUMP RELIEF, SPRING, OIL PUMP RELIEF VALVE, PLUG, OIL PUMP RELIEF VALVE.
