Toyota COROLLA JPP — ELECTRONIC FUEL INJECTION SYSTEM

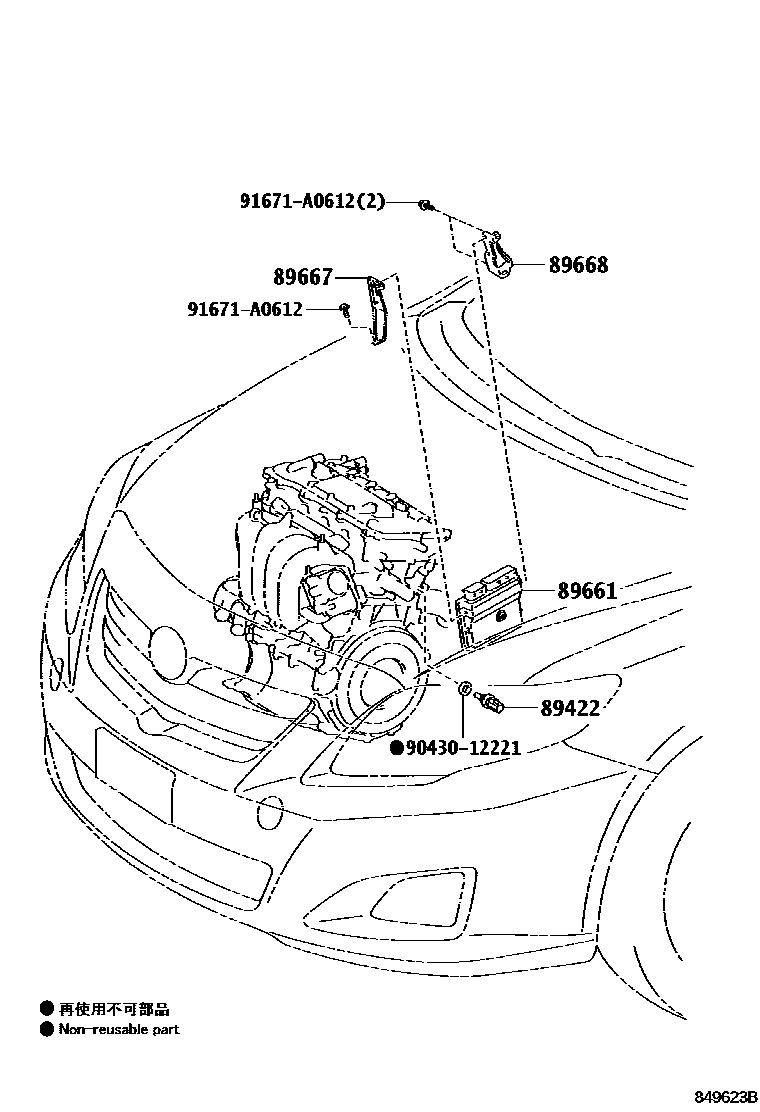

Parts diagram

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i200712-201012

89661COMPUTER, ENGINE CONTROL

main89661-02F50i200901-200904

main89661-02F51i200905-200911

main89661-02F52i200911-201012

main89661-02M90i200712-200804

main89661-02M91i200805-200809

main89661-02M92i200809-200901

main89661-02Q60i201012-201108

main89661-02Q61i201108-201112

main89661-0ZA40i201112-201206

main89661-0ZA41i201207-201308

main89661-0Z590i201012-201110

KOREA SPEC

main89661-0Z591i201111-201112

KOREA SPEC

main89661-0ZA90i201112-201308

KOREA SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02220i200712-201012

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02190i200712-201012

9043012221

main90430-12221

91671A0612

main91671-A0612

6 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota COROLLA JPP

This section contains 6 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota COROLLA JPP. Key components include: SENSOR, WATER TEMPERATURE (FOR E.F.I.), COMPUTER, ENGINE CONTROL, BRACKET, ENGINE CONTROL COMPUTER, BRACKET, ENGINE CONTROL COMPUTER, NO.2.
