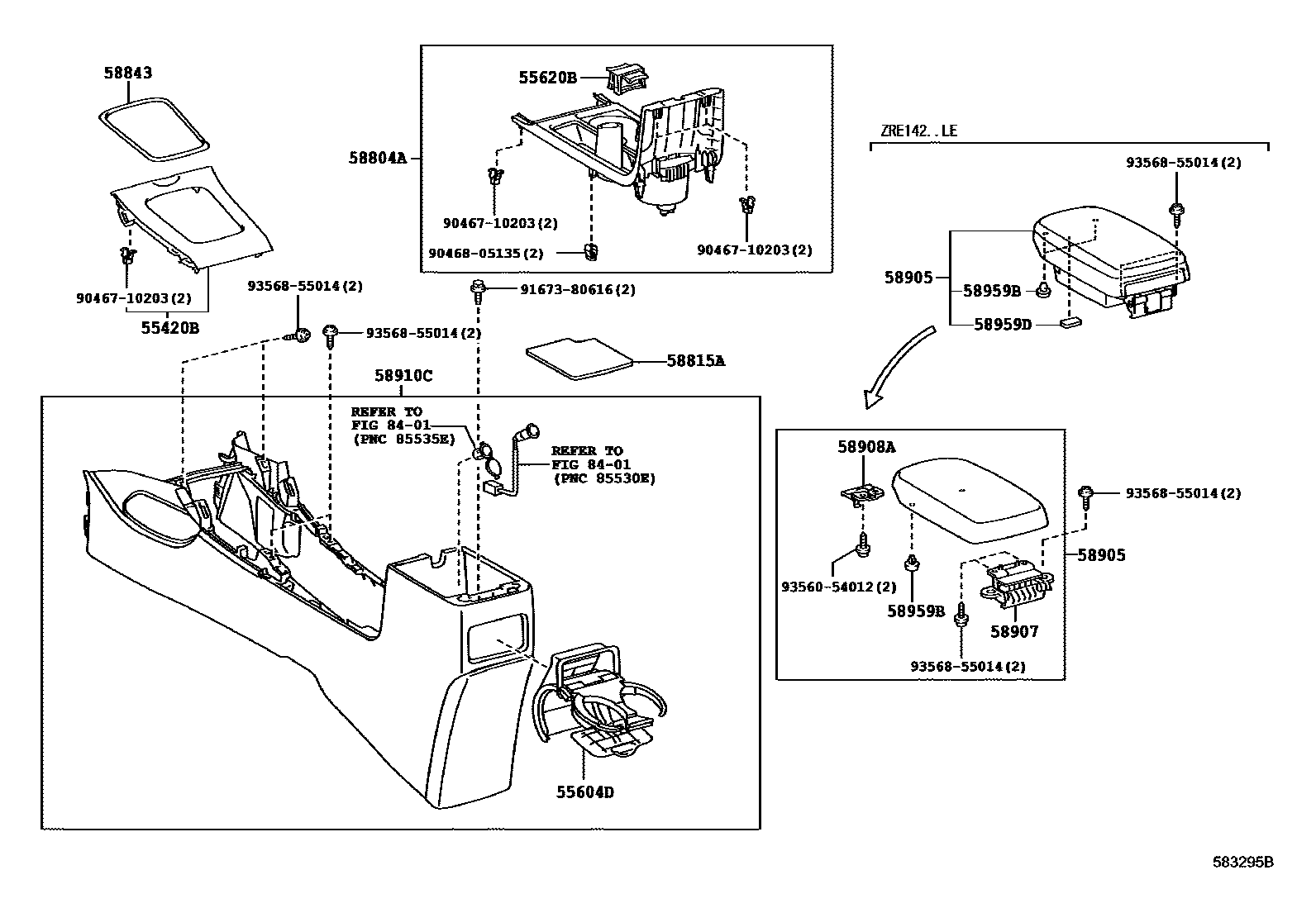

Toyota COROLLA JPP — CONSOLE BOX & BRACKET

55420BPANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1

main55420-12400i200712-201012

main55420-12520supersedes 55420-12440i201012-201308

KOREA SPEC

55604DHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-12050-B0i200712-201012

GRAY,TRIM1#

main55604-12050-E0i200712-201012

GREGE,TRIM4#

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-12150-B0i200712-201012

GRAY,TRIM1#

main55620-12150-E0i200712-201012

GREGE,TRIM4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-12060-B1i200712-201012

GRAY,TRIM1#

main58804-12060-E0i200712-201012

GREGE,TRIM4#

main58804-12110-B0i201012-201308

GRAY,TRIM1#

main58804-12110-E0i201012-201308

GREGE,TRIM4#

58815ACARPET, CONSOLE BOX

main58815-12120i201012-201308

main58815-12140i200712-201012

58843BEZEL, SHIFTING HOLE

main58843-12140i201012-201308

main58843-12160i201012-201308

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12590-B1i201012-201308

GRAY,TRIM1#

main58905-12590-E0i200712-201012

GREGE,TRIM4#

main58905-12610-B7supersedes 58905-12670-B1i201012-201308

KOREA SPEC,GRAY,TRIM1#

main58905-12610-E4supersedes 58905-12670-E1i201012-201308

KOREA SPEC,GREGE,TRIM4#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-12100i201012-201308

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030i200712-201012

58910CBOX ASSY, CONSOLE, REAR

main58910-12470-B0i200712-201012

GRAY,TRIM1#

main58910-12470-E0i200712-201012

GREGE,TRIM4#

main58910-12840-B0i201012-201308

GRAY,TRIM1#

main58910-12840-E0i201012-201308

GREGE,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2i200712-201012

58959DCUSHION, REAR CONSOLE BOX

8401

9046710203

main90467-10203

9046805135

main90468-05135

9167380616

main91673-80616

9356054012

main93560-54012

9356855014

main93568-55014

18 parts on this diagram · 2 diagrams in section
