Toyota COROLLA JPP — CLUTCH & RELEASE FORK

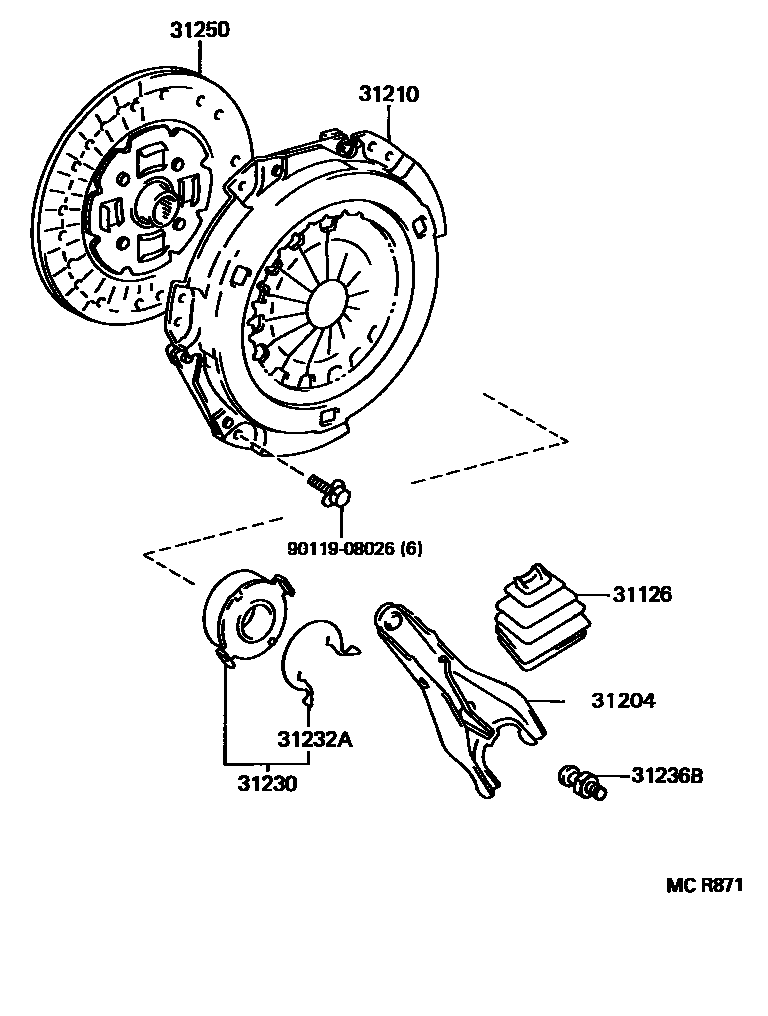

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-12051i199206

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010i199206

31210COVER ASSY, CLUTCH

main31210-12151i199305-199503

main31210-12152i199503

main31210-12200i199206-199503

main31210-12201i199503

main31210-12220i199206-199305

31230BEARING ASSY, CLUTCH RELEASE

main31230-12170i199206-199704

31232ACLIP, RELEASE BEARING HUB

main31232-12050i199206-199608

TYPE A:REFER TO ILLUSTRATION

main31232-12060i199206-199608

TYPE B:REFER TO ILLUSTRATION

main31232-12070i199206-199704

TYPE D:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-12020i199206

31250DISC ASSY, CLUTCH

main31250-12310i199206-199505

main31250-12320i199206-199505

main31250-12360i199505

main31250-12370i199511

main31250-12380i199505-199511

9011908026

main90119-08026

8 parts on this diagram · 2 diagrams in section

CLUTCH & RELEASE FORK for Toyota COROLLA JPP

This section contains 8 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota COROLLA JPP. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
