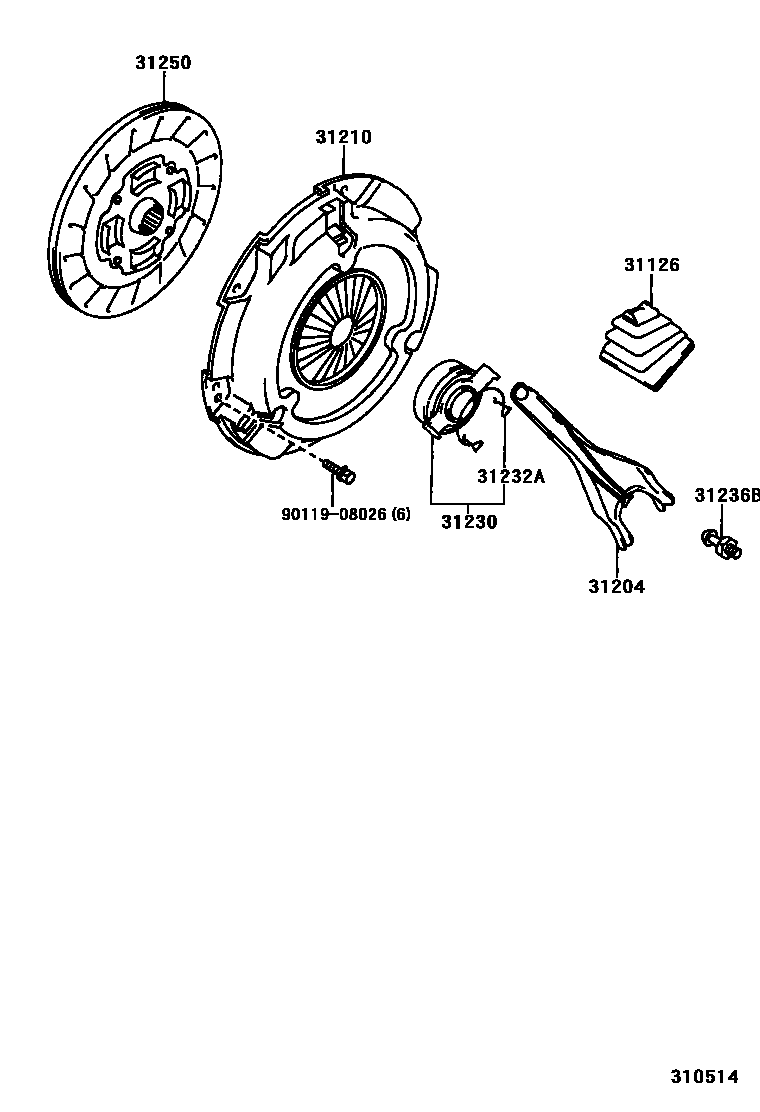

Toyota COROLLA JPP — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051i198708-199206

main31126-12060i198908-199008

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050i198708-199105

main31204-17010i198802-199206

31210COVER ASSY, CLUTCH

main31210-12130i198802-199008

main31210-12131i199008-199009

main31210-12210i199104-199206

main31210-16100i198708-198812

main31210-16101i198812-198911

main31210-16102i198911-199104

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140i198811-199105

L=74.15

main31230-12170i199105-199206

L=83.8

main31230-20160i198802-198809

L=83.8

main31230-20170i198809-199008

L=83.8

31232ACLIP, RELEASE BEARING HUB

main31232-12040i198708-199105

main31232-12050i199105-199206

TYPE 3

main31232-12060i199105-199206

TYPE 4

main31232-12070i199105-199206

TYPE 5

main31232-20020i198802-199008

TYPE 6

main31232-32030i198802-198811

TYPE 7

31236BSUPPORT, RELEASE FORK

main31236-12011i198708-199105

main31236-12020i199105-199206

main31236-20060i198802-199008

31250DISC ASSY, CLUTCH

main31250-12190i198802-198805

main31250-12200i198708-199006

main31250-12201i199006-199104

main31250-12290i199104-199206

main31250-17030i198805-199008

9011908026

main90119-08026

8 parts on this diagram · 2 diagrams in section

CLUTCH & RELEASE FORK for Toyota COROLLA JPP

This section contains 8 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota COROLLA JPP. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
