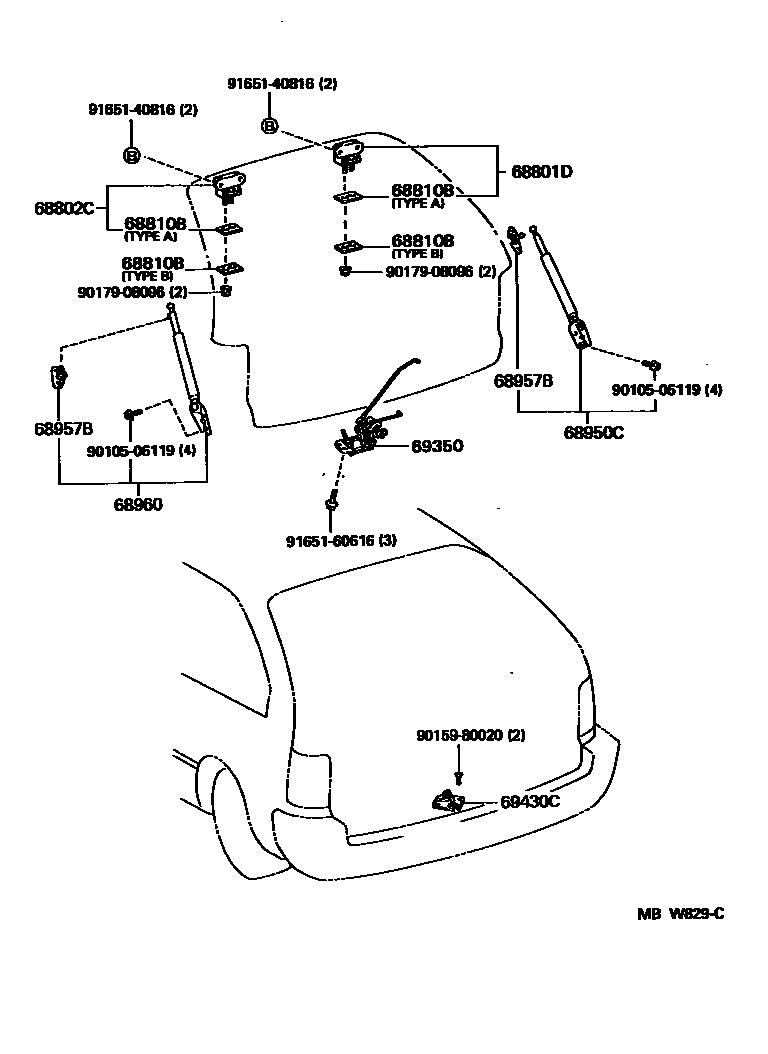

Toyota COROLLA JPP — BACK DOOR LOCK & HANDLE
68801DHINGE SUB-ASSY, BACK DOOR, RH
68802CHINGE SUB-ASSY, BACK DOOR, LH
68810BPAD, BACK DOOR HINGE
TYPE A,T=1.1
TYPE B,T=0.5
68950CSTAY ASSY, BACK DOOR, RH
W(*RW)
68957BBRACKET, BACK DOOR STAY, LOWER
68960STAY ASSY, BACK DOOR, LH
W(*RW)
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
9010506119
main90105-06119
9015980020
main90159-80020
9017908096
main90179-08096
9165140816
main91651-40816
9165160616
main91651-60616
13 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota COROLLA JPP
This section contains 13 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota COROLLA JPP. Key components include: HINGE SUB-ASSY, BACK DOOR, RH, HINGE SUB-ASSY, BACK DOOR, LH, PAD, BACK DOOR HINGE, STAY ASSY, BACK DOOR, RH, BRACKET, BACK DOOR STAY, LOWER.
