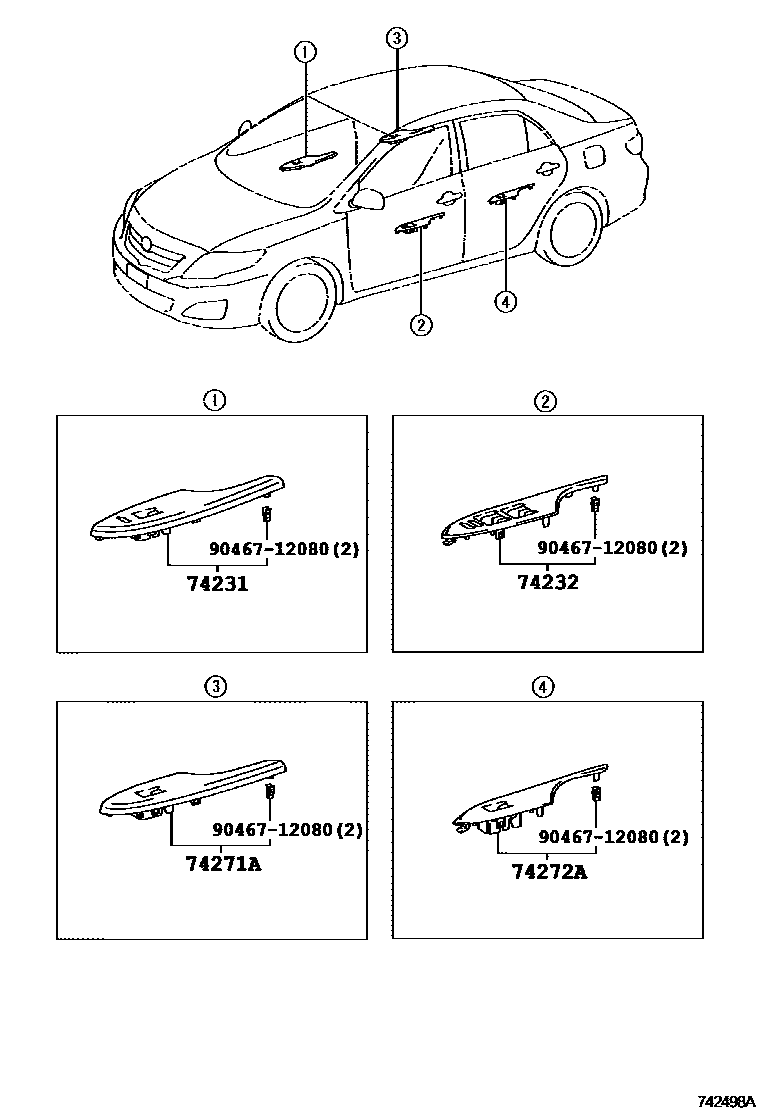

Toyota COROLLA JPP — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12880-B0supersedes 74231-12A40-B0iZRE142..JPP..STD201012-201308

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GRAY,TRIM1#

main74231-12880-E0supersedes 74231-12A40-E0iZRE142..JPP..STD200712-201012

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GREGE,TRIM4#

main74231-12C20-E1supersedes 74231-12B40-B0iZRE142..JPP..LE201012-201308

KOREA SPEC,DARK BROWN,TRIM1#,4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12700-B1supersedes 74232-12730-B0iZRE142..JPP..STD201012-201308

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GRAY,TRIM1#

main74232-12700-E0supersedes 74232-12730-E0iZRE142..JPP..STD200712-201012

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GREGE,TRIM4#

main74232-12A00-E2supersedes 74232-12690-E0iZRE142..JPP..LE201012-201308

KOREA SPEC,DARK BROWN,TRIM1#,4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-12290-B1supersedes 74271-12300-B1iZRE142..JPP..STD200712-201012

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GRAY,TRIM1#

main74271-12290-E0supersedes 74271-12300-E0iZRE142..JPP..STD201012-201308

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GREGE,TRIM4#

main74271-12430-E1supersedes 74271-12280-E0iZRE142..JPP..LE201012-201308

KOREA SPEC,DARK BROWN,TRIM1#,4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-12290-B1supersedes 74272-12300-B1iZRE142..JPP..STD201012-201308

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GRAY,TRIM1#

main74272-12290-E0supersedes 74272-12300-E0iZRE142..JPP..STD200712-201012

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GREGE,TRIM4#

main74272-12440-E1supersedes 74272-12280-E0iZRE142..JPP..LE201012-201308

KOREA SPEC,DARK BROWN,TRIM1#,4#

9046712080

main90467-12080

5 parts on this diagram · 2 diagrams in section
