Toyota COROLLA JPP — ARMREST & VISOR

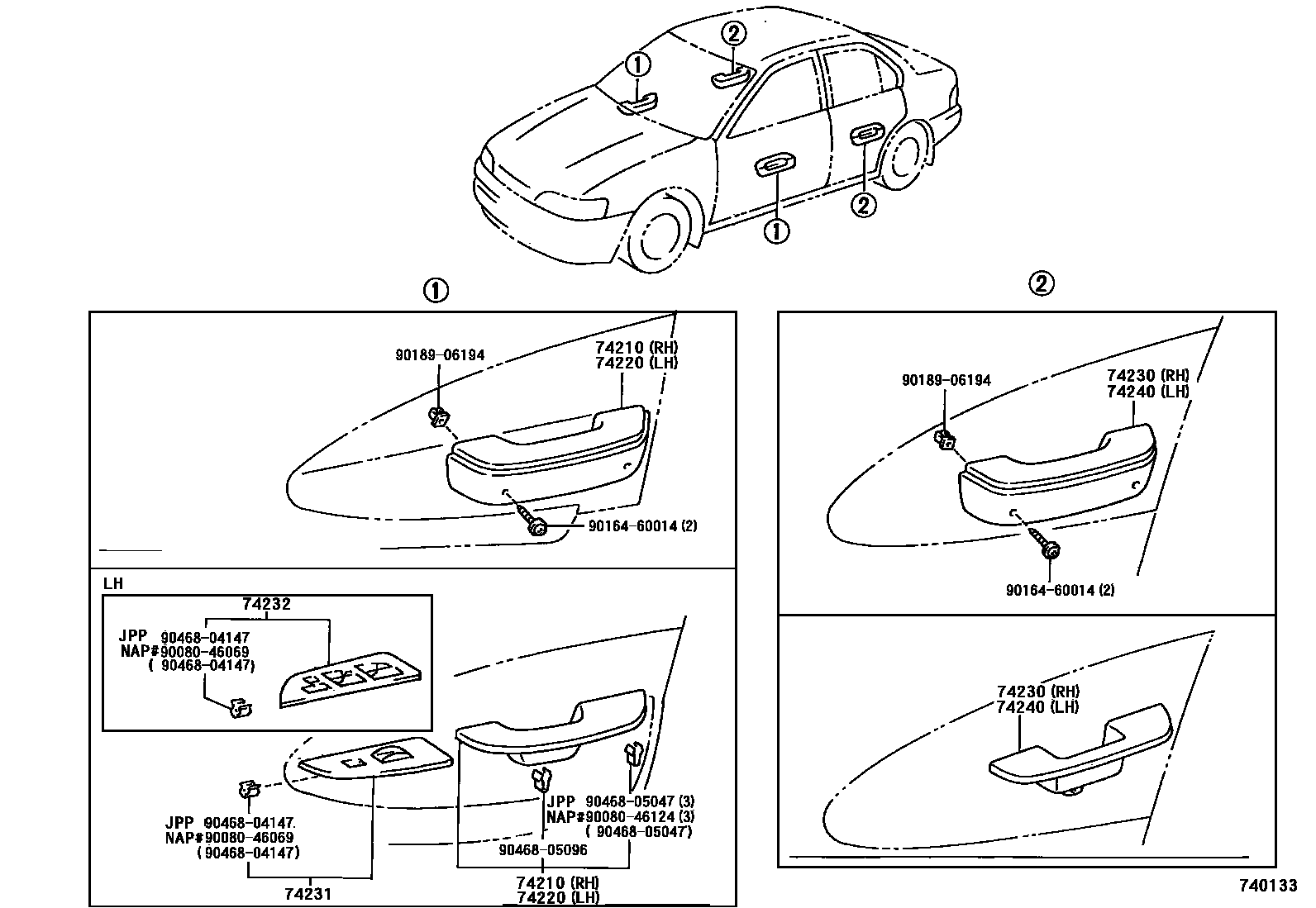

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-02040-B0i199308-199704
SHADOW GRAY,TRIM1#,(L)
main74210-02040-E1i199508-199704
OAK,TRIM4#,(L)
main74210-02040-J0i199308-199704
DARK BLUE,TRIM8#,(L)
main74210-02040-K0i199308-199508
TAUPE,TRIM9#,(L)
main74210-02050-B0i199308-199608
W(ANTI-THEFT DEVICE & *PW),SHADOW GRAY,TRIM1#,(L)
main74210-02050-B0i199308-199704
W(*PW),SHADOW GRAY,TRIM1#,(L)
main74210-02050-B0i199308-199505
SHADOW GRAY,TRIM1#,(L)
main74210-02050-E1i199508-199704
W(*PW),OAK,TRIM4#,(L)
main74210-02050-E1i199508-199608
W(ANTI-THEFT DEVICE & *PW),OAK,TRIM4#,(L)
main74210-02050-J0i199308-199508
DARK BLUE,TRIM8#,(L)
main74210-02050-J0i199308-199704
W(*PW),DARK BLUE,TRIM8#,(L)
main74210-02050-J0i199308-199608
W(ANTI-THEFT DEVICE & *PW),DARK BLUE,TRIM8#,(L)
main74210-02050-K0i199308-199508
W(*PW),TAUPE,TRIM9#,(L)
main74210-02050-K0i199308-199508
W(ANTI-THEFT DEVICE & *PW),TAUPE,TRIM9#,(L)
main74210-02050-K0i199308-199508
TAUPE,TRIM9#,(L)
main74210-02060-B0i199308-199704
SHADOW GRAY,TRIM1#,(L)
main74210-02060-B0i199308-199508
STANDARD PACKAGE(FX**),SHADOW GRAY,TRIM1#,(L)
main74210-02060-E1i199508-199704
OAK,TRIM4#,(L)
main74210-02060-J0i199308-199704
DARK BLUE,TRIM8#,(L)
main74210-02060-J0i199308-199508
STANDARD PACKAGE(FX**),DARK BLUE,TRIM8#,(L)
main74210-02060-K0i199308-199508
STANDARD PACKAGE(FX**),TAUPE,TRIM9#,(L)
main74210-02060-K0i199308-199508
TAUPE,TRIM9#,(L)
main74210-12190-B0i199308-199508
STANDARD PACKAGE(FX**),SHADOW GRAY,TRIM1#,(J)
main74210-12190-B0i199308-199704
SHADOW GRAY,TRIM1#,(J)
main74210-12190-B0i199206-199308
SHADOW GRAY,TRIM1#
main74210-12190-E0i199508-199704
OAK,TRIM4#,(J)
main74210-12190-J0i199308-199704
DARK BLUE,TRIM8#,(J)
main74210-12190-J0i199308-199508
STANDARD PACKAGE(FX**),DARK BLUE,TRIM8#,(J)
main74210-12190-J0i199206-199308
DARK BLUE,TRIM8#
main74210-12190-K0i199308-199508
TAUPE,TRIM9#,(J)
main74210-12190-K0i199308-199508
STANDARD PACKAGE(FX**),TAUPE,TRIM9#,(J)
main74210-12190-K0i199206-199308
TAUPE,TRIM9#
main74210-12200-B0i199206-199408
SHADOW GRAY,TRIM1#,(J)
main74210-12200-J0i199206-199408
DARK BLUE,TRIM8#,(J)
main74210-12200-K0i199206-199408
TAUPE,TRIM9#,(J)
main74210-12210-B0i199206-199308
W(*PW),SHADOW GRAY,TRIM1#
main74210-12210-B0i199206-199308
W(ANTI-THEFT DEVICE & *PW),SHADOW GRAY,TRIM1#
main74210-12210-B0i199206-199308
SHADOW GRAY,TRIM1#
main74210-12210-B0i199308-199408
W(*PW),SHADOW GRAY,TRIM1#,(J)
main74210-12210-B0i199308-199408
SHADOW GRAY,TRIM1#,(J)
main74210-12210-B0i199308-199408
W(ANTI-THEFT DEVICE & *PW),SHADOW GRAY,TRIM1#,(J)
main74210-12210-J0i199206-199308
W(ANTI-THEFT DEVICE & *PW),DARK BLUE,TRIM8#
main74210-12210-J0i199206-199308
W(*PW),DARK BLUE,TRIM8#
main74210-12210-J0i199206-199308
DARK BLUE,TRIM8#
main74210-12210-J0i199308-199408
W(ANTI-THEFT DEVICE & *PW),DARK BLUE,TRIM8#,(J)
main74210-12210-J0i199308-199408
W(*PW),DARK BLUE,TRIM8#,(J)
main74210-12210-J0i199308-199408
DARK BLUE,TRIM8#,(J)
main74210-12210-K0i199206-199308
TAUPE,TRIM9#
main74210-12210-K0i199206-199308
W(ANTI-THEFT DEVICE & *PW),TAUPE,TRIM9#
main74210-12210-K0i199206-199308
W(*PW),TAUPE,TRIM9#
main74210-12210-K0i199308-199408
W(*PW),TAUPE,TRIM9#,(J)
main74210-12210-K0i199308-199408
W(ANTI-THEFT DEVICE & *PW),TAUPE,TRIM9#,(J)
main74210-12210-K0i199308-199408
TAUPE,TRIM9#,(J)
main74210-16110-B1i199408-199704
SHADOW GRAY,TRIM1#,(J)
main74210-16110-E0i199508-199704
OAK,TRIM4#,(J)
main74210-16110-J0i199408-199704
DARK BLUE,TRIM8#,(J)
main74210-16110-K0i199408-199508
TAUPE,TRIM9#,(J)
main74210-16120-B1i199408-199508
SHADOW GRAY,TRIM1#,(J)
main74210-16120-B1i199408-199704
W(*PW),SHADOW GRAY,TRIM1#,(J)
main74210-16120-B1i199408-199608
W(ANTI-THEFT DEVICE & *PW),SHADOW GRAY,TRIM1#,(J)
main74210-16120-E0i199508-199608
W(ANTI-THEFT DEVICE & *PW),OAK,TRIM4#,(J)
main74210-16120-E0i199508-199704
W(*PW),OAK,TRIM4#,(J)
main74210-16120-J0i199408-199704
W(*PW),DARK BLUE,TRIM8#,(J)
main74210-16120-J0i199408-199508
DARK BLUE,TRIM8#,(J)
main74210-16120-J0i199408-199608
W(ANTI-THEFT DEVICE & *PW),DARK BLUE,TRIM8#,(J)
main74210-16120-K0i199408-199508
W(*PW),TAUPE,TRIM9#,(J)
main74210-16120-K0i199408-199508
TAUPE,TRIM9#,(J)
main74210-16120-K0i199408-199508
W(ANTI-THEFT DEVICE & *PW),TAUPE,TRIM9#,(J)
main90159-60367i199206-199704
74220ARMREST ASSY, FRONT, LH
main74210-02060-B0i199308-199704
SHADOW GRAY,TRIM1#,(L)
main74210-02060-B0i199308-199508
STANDARD PACKAGE(FX**),SHADOW GRAY,TRIM1#,(L)
main74210-02060-E1i199508-199704
OAK,TRIM4#,(L)
main74210-02060-J0i199308-199704
DARK BLUE,TRIM8#,(L)
main74210-02060-J0i199308-199508
STANDARD PACKAGE(FX**),DARK BLUE,TRIM8#,(L)
main74210-02060-K0i199308-199508
STANDARD PACKAGE(FX**),TAUPE,TRIM9#,(L)
main74210-02060-K0i199308-199508
TAUPE,TRIM9#,(L)
main74210-12190-B0i199308-199704
SHADOW GRAY,TRIM1#,(J)
main74210-12190-B0i199206-199308
SHADOW GRAY,TRIM1#
main74210-12190-B0i199308-199508
STANDARD PACKAGE(FX**),SHADOW GRAY,TRIM1#,(J)
main74210-12190-E0i199508-199704
OAK,TRIM4#,(J)
main74210-12190-J0i199308-199704
DARK BLUE,TRIM8#,(J)
main74210-12190-J0i199308-199508
STANDARD PACKAGE(FX**),DARK BLUE,TRIM8#,(J)
main74210-12190-J0i199206-199308
DARK BLUE,TRIM8#
main74210-12190-K0i199308-199508
STANDARD PACKAGE(FX**),TAUPE,TRIM9#,(J)
main74210-12190-K0i199206-199308
TAUPE,TRIM9#
main74210-12190-K0i199308-199508
TAUPE,TRIM9#,(J)
main74220-02020-B0i199308-199704
SHADOW GRAY,TRIM1#,(L)
main74220-02020-E1i199508-199704
OAK,TRIM4#,(L)
main74220-02020-J0i199308-199704
DARK BLUE,TRIM8#,(L)
main74220-02020-K0i199308-199508
TAUPE,TRIM9#,(L)
main74220-02030-B0i199308-199704
W(*PW),SHADOW GRAY,TRIM1#,(L)
main74220-02030-B0i199308-199508
SHADOW GRAY,TRIM1#,(L)
main74220-02030-B0i199308-199608
W(ANTI-THEFT DEVICE & *PW),SHADOW GRAY,TRIM1#,(L)
main74220-02030-E1i199508-199608
W(ANTI-THEFT DEVICE & *PW),OAK,TRIM4#,(L)
main74220-02030-E1i199508-199704
W(*PW),OAK,TRIM4#,(L)
main74220-02030-E1i199509-199704
W(*PW),OAK,TRIM4#
main74220-02030-J0i199308-199704
W(*PW),DARK BLUE,TRIM8#,(L)
main74220-02030-J0i199308-199508
DARK BLUE,TRIM8#,(L)
main74220-02030-J0i199308-199608
W(ANTI-THEFT DEVICE & *PW),DARK BLUE,TRIM8#,(L)
main74220-02030-K0i199308-199508
W(ANTI-THEFT DEVICE & *PW),TAUPE,TRIM9#,(L)
main74220-02030-K0i199308-199508
TAUPE,TRIM9#,(L)
main74220-02030-K0i199308-199508
W(*PW),TAUPE,TRIM9#,(L)
main74220-12130-B0i199206-199408
SHADOW GRAY,TRIM1#,(J)
main74220-12130-J0i199206-199408
DARK BLUE,TRIM8#,(J)
main74220-12130-K0i199206-199408
TAUPE,TRIM9#,(J)
main74220-12140-B0i199206-199308
W(ANTI-THEFT DEVICE & *PW),SHADOW GRAY,TRIM1#
main74220-12140-B0i199206-199308
W(*PW),SHADOW GRAY,TRIM1#
main74220-12140-B0i199308-199408
W(*PW),SHADOW GRAY,TRIM1#,(J)
main74220-12140-B0i199308-199408
SHADOW GRAY,TRIM1#,(J)
main74220-12140-B0i199308-199408
W(ANTI-THEFT DEVICE & *PW),SHADOW GRAY,TRIM1#,(J)
main74220-12140-B0i199206-199308
SHADOW GRAY,TRIM1#
main74220-12140-J0i199206-199308
DARK BLUE,TRIM8#
main74220-12140-J0i199206-199308
W(ANTI-THEFT DEVICE & *PW),DARK BLUE,TRIM8#
main74220-12140-J0i199308-199408
W(ANTI-THEFT DEVICE & *PW),DARK BLUE,TRIM8#,(J)
main74220-12140-J0i199206-199308
W(*PW),DARK BLUE,TRIM8#
main74220-12140-J0i199308-199408
W(*PW),DARK BLUE,TRIM8#,(J)
main74220-12140-J0i199308-199408
DARK BLUE,TRIM8#,(J)
main74220-12140-K0i199206-199308
W(*PW),TAUPE,TRIM9#
main74220-12140-K0i199308-199408
W(*PW),TAUPE,TRIM9#,(J)
main74220-12140-K0i199206-199308
W(ANTI-THEFT DEVICE & *PW),TAUPE,TRIM9#
main74220-12140-K0i199206-199308
TAUPE,TRIM9#
main74220-12140-K0i199308-199408
TAUPE,TRIM9#,(J)
main74220-12140-K0i199308-199408
W(ANTI-THEFT DEVICE & *PW),TAUPE,TRIM9#,(J)
main74220-16090-B1i199408-199704
SHADOW GRAY,TRIM1#,(J)
main74220-16090-E0i199508-199704
OAK,TRIM4#,(J)
main74220-16090-J0i199408-199704
DARK BLUE,TRIM8#,(J)
main74220-16090-K0i199408-199508
TAUPE,TRIM9#,(J)
main74220-16100-B1i199408-199508
SHADOW GRAY,TRIM1#
main74220-16100-B1i199408-199608
W(ANTI-THEFT DEVICE & *PW),SHADOW GRAY,TRIM1#
main74220-16100-B1i199408-199704
W(*PW),SHADOW GRAY,TRIM1#,(J)
main74220-16100-B1i199408-199508
W(*PW),SHADOW GRAY,TRIM1#
main74220-16100-E0i199508-199608
W(ANTI-THEFT DEVICE & *PW),OAK,TRIM4#
main74220-16100-E0i199508-199704
W(*PW),OAK,TRIM4#,(J)
main74220-16100-J0i199408-199508
DARK BLUE,TRIM8#
main74220-16100-J0i199408-199508
W(*PW),DARK BLUE,TRIM8#
main74220-16100-J0i199408-199704
W(*PW),DARK BLUE,TRIM8#,(J)
main74220-16100-J0i199408-199608
W(ANTI-THEFT DEVICE & *PW),DARK BLUE,TRIM8#
main74220-16100-K0i199408-199508
W(ANTI-THEFT DEVICE & *PW),TAUPE,TRIM9#
main74220-16100-K0i199408-199508
TAUPE,TRIM9#
main74220-16100-K0i199408-199508
W(*PW),TAUPE,TRIM9#
74230ARMREST ASSY, REAR, RH
main74210-02060-B0i199308-199608
W(ANTI-THEFT DEVICE),SHADOW GRAY,TRIM1#,(L)
main74210-02060-B0i199308-199508
STANDARD PACKAGE(FX**) & W(SPEAKER),SHADOW GRAY,TRIM1#,(L)
main74210-02060-B0i199408-199508
W(SPEAKER & *PW),SHADOW GRAY,TRIM1#,(L)
main74210-02060-B0i199308-199704
SHADOW GRAY,TRIM1#,(L)
main74210-02060-E1i199508-199704
W(SPEAKER & *PW),OAK,TRIM4#,(L)
main74210-02060-E1i199508-199704
OAK,TRIM4#,(L)
main74210-02060-E1i199508-199608
W(ANTI-THEFT DEVICE),OAK,TRIM4#,(L)
main74210-02060-J0i199308-199704
DARK BLUE,TRIM8#,(L)
main74210-02060-J0i199308-199608
W(ANTI-THEFT DEVICE),DARK BLUE,TRIM8#,(L)
main74210-02060-J0i199408-199508
W(SPEAKER & *PW),DARK BLUE,TRIM8#,(L)
main74210-02060-J0i199308-199508
STANDARD PACKAGE(FX**) & W(SPEAKER),DARK BLUE,TRIM8#,(L)
main74210-02060-K0i199308-199508
STANDARD PACKAGE(FX**) & W(SPEAKER),TAUPE,TRIM9#,(L)
main74210-02060-K0i199308-199508
TAUPE,TRIM9#,(L)
main74210-02060-K0i199308-199508
W(ANTI-THEFT DEVICE),TAUPE,TRIM9#,(L)
main74210-02060-K0i199408-199508
W(SPEAKER & *PW),TAUPE,TRIM9#,(L)
main74210-12190-B0i199308-199508
STANDARD PACKAGE(FX**) & W(SPEAKER),SHADOW GRAY,TRIM1#,(J)
main74210-12190-B0i199308-199608
W(ANTI-THEFT DEVICE),SHADOW GRAY,TRIM1#,(J)
main74210-12190-B0i199308-199704
SHADOW GRAY,TRIM1#,(J)
main74210-12190-B0i199408-199508
W(SPEAKER & *PW),SHADOW GRAY,TRIM1#,(J)
main74210-12190-B0i199206-199308
SHADOW GRAY,TRIM1#
main74210-12190-E0i199508-199704
OAK,TRIM4#,(J)
main74210-12190-E0i199508-199608
W(ANTI-THEFT DEVICE),OAK,TRIM4#,(J)
main74210-12190-E0i199508-199704
W(SPEAKER & *PW),OAK,TRIM4#,(J)
main74210-12190-J0i199206-199308
DARK BLUE,TRIM8#
main74210-12190-J0i199408-199508
W(SPEAKER & *PW),DARK BLUE,TRIM8#,(J)
main74210-12190-J0i199308-199704
DARK BLUE,TRIM8#,(J)
main74210-12190-J0i199308-199608
W(ANTI-THEFT DEVICE),DARK BLUE,TRIM8#,(J)
main74210-12190-J0i199308-199508
STANDARD PACKAGE(FX**) & W(SPEAKER),DARK BLUE,TRIM8#,(J)
main74210-12190-K0i199308-199508
STANDARD PACKAGE(FX**) & W(SPEAKER),TAUPE,TRIM9#,(J)
main74210-12190-K0i199206-199308
TAUPE,TRIM9#
main74210-12190-K0i199308-199508
TAUPE,TRIM9#,(J)
main74210-12190-K0i199308-199508
W(ANTI-THEFT DEVICE),TAUPE,TRIM9#,(J)
main74210-12190-K0i199408-199508
W(SPEAKER & *PW),TAUPE,TRIM9#,(J)
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-12180-B0i199206-199508
SHADOW GRAY,TRIM1#
main74231-12180-J0i199206-199508
DARK BLUE,TRIM8#
main74231-12180-K0i199206-199508
TAUPE,TRIM9#
main74231-12210-B0i199508-199704
SHADOW GRAY,TRIM1#
main74231-12210-E0i199508-199704
OAK,TRIM4#
main74231-12210-J0i199508-199704
DARK BLUE,TRIM8#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-12170-B0i199206-199508
SHADOW GRAY,TRIM1#
main74232-12170-J0i199206-199508
DARK BLUE,TRIM8#
main74232-12170-K0i199206-199508
TAUPE,TRIM9#
main74232-12171-B0i199508-199704
SHADOW GRAY,TRIM1#
main74232-12171-B0i199508-199608
W(ANTI-THEFT PROTECTIPN & *PW),SHADOW GRAY,TRIM1#
main74232-12171-E0i199508-199704
OAK,TRIM4#
main74232-12171-E0i199508-199608
W(ANTI-THEFT PROTECTIPN & *PW),OAK,TRIM4#
main74232-12171-J0i199508-199704
DARK BLUE,TRIM8#
main74232-12171-J0i199508-199608
W(ANTI-THEFT PROTECTIPN & *PW),DARK BLUE,TRIM8#
74240ARMREST ASSY, REAR, LH
main74210-02060-B0i199308-199508
STANDARD PACKAGE(FX**) & W(SPEAKER),SHADOW GRAY,TRIM1#,(L)
main74210-02060-B0i199308-199608
W(ANTI-THEFT DEVICE),SHADOW GRAY,TRIM1#,(L)
main74210-02060-B0i199408-199508
W(SPEAKER & *PW),SHADOW GRAY,TRIM1#,(L)
main74210-02060-B0i199308-199704
SHADOW GRAY,TRIM1#,(L)
main74210-02060-E1i199508-199704
OAK,TRIM4#,(L)
main74210-02060-E1i199508-199704
W(SPEAKER & *PW),OAK,TRIM4#,(L)
main74210-02060-E1i199508-199608
W(ANTI-THEFT DEVICE),OAK,TRIM4#,(L)
main74210-02060-J0i199408-199508
W(SPEAKER & *PW),DARK BLUE,TRIM8#,(L)
main74210-02060-J0i199308-199508
STANDARD PACKAGE(FX**) & W(SPEAKER),DARK BLUE,TRIM8#,(L)
main74210-02060-J0i199308-199704
DARK BLUE,TRIM8#,(L)
main74210-02060-J0i199308-199608
W(ANTI-THEFT DEVICE),DARK BLUE,TRIM8#,(L)
main74210-02060-K0i199408-199508
W(SPEAKER & *PW),TAUPE,TRIM9#,(L)
main74210-02060-K0i199308-199508
TAUPE,TRIM9#,(L)
main74210-02060-K0i199308-199508
W(ANTI-THEFT DEVICE),TAUPE,TRIM9#,(L)
main74210-02060-K0i199308-199508
STANDARD PACKAGE(FX**) & W(SPEAKER),TAUPE,TRIM9#,(L)
main74210-12190-B0i199408-199508
W(SPEAKER & *PW),SHADOW GRAY,TRIM1#,(J)
main74210-12190-B0i199308-199608
W(ANTI-THEFT DEVICE),SHADOW GRAY,TRIM1#,(J)
main74210-12190-B0i199206-199308
SHADOW GRAY,TRIM1#
main74210-12190-B0i199308-199508
STANDARD PACKAGE(FX**) & W(SPEAKER),SHADOW GRAY,TRIM1#,(J)
main74210-12190-B0i199308-199704
SHADOW GRAY,TRIM1#,(J)
main74210-12190-E0i199508-199704
W(SPEAKER & *PW),OAK,TRIM4#,(J)
main74210-12190-E0i199508-199704
OAK,TRIM4#,(J)
main74210-12190-E0i199508-199608
W(ANTI-THEFT DEVICE),OAK,TRIM4#,(J)
main74210-12190-J0i199206-199308
DARK BLUE,TRIM8#
main74210-12190-J0i199308-199608
W(ANTI-THEFT DEVICE),DARK BLUE,TRIM8#,(J)
main74210-12190-J0i199308-199508
STANDARD PACKAGE(FX**) & W(SPEAKER),DARK BLUE,TRIM8#,(J)
main74210-12190-J0i199408-199508
W(SPEAKER & *PW),DARK BLUE,TRIM8#,(J)
main74210-12190-J0i199308-199704
DARK BLUE,TRIM8#,(J)
main74210-12190-K0i199308-199508
W(ANTI-THEFT DEVICE),TAUPE,TRIM9#,(J)
main74210-12190-K0i199206-199308
TAUPE,TRIM9#
main74210-12190-K0i199308-199508
TAUPE,TRIM9#,(J)
main74210-12190-K0i199308-199508
STANDARD PACKAGE(FX**) & W(SPEAKER),TAUPE,TRIM9#,(J)
main74210-12190-K0i199408-199508
W(SPEAKER & *PW),TAUPE,TRIM9#,(J)
9008046069
main90080-46069
9008046124
main90080-46124
9016460014
main90164-60014
9018906194
main90189-06194
9046804147
main90468-04147
9046805047
main90468-05047
9046805096
main90468-05096

13 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota COROLLA JPP

This section contains 25 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA JPP. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH.
