Toyota COROLLA JPP — ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89180SENSOR ASSY, YAWRATE

main89180-12100supersedes 89180-12150i200712-201012

VSC-WITH(W/CUT OFF SWITCH)

89189BBRACKET, YAWRATE SENSOR

main89189-12100i200712-201012

VSC-WITH(W/CUT OFF SWITCH)

89516WIRE, SKID CONTROL SENSOR

main89516-12140i200712-201012

main89516-12150i200712-201012

89542SENSOR, SPEED, FRONT RH

main89542-12100i200712-201012

89543SENSOR, SPEED, FRONT LH

main89543-12100i200712-201012

9010508419

main90105-08419

91671A0614

main91671-A0614

91671A0616

main91671-A0616

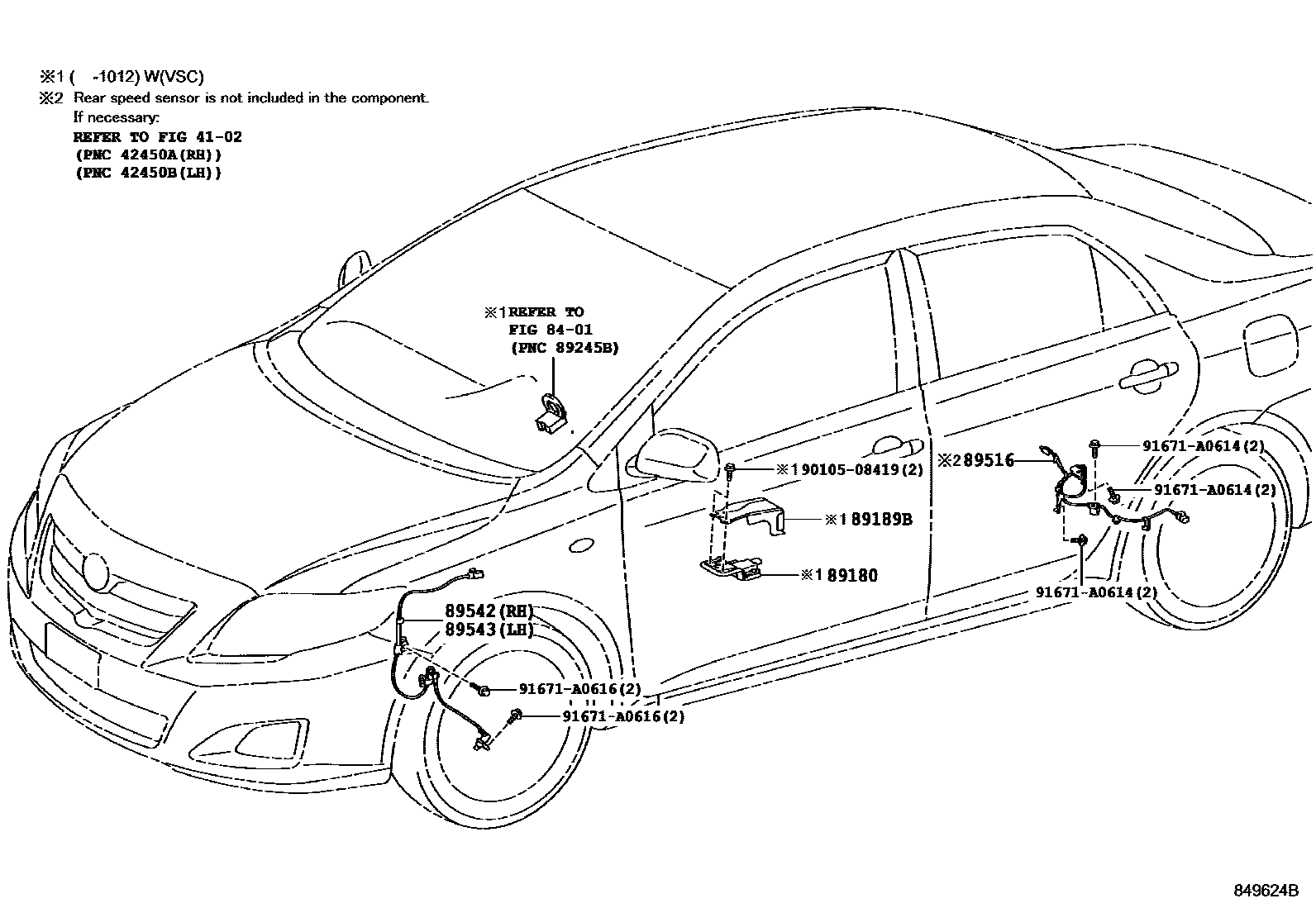

10 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota COROLLA JPP

This section contains 10 genuine Toyota parts for the ABS & VSC system of the Toyota COROLLA JPP. Key components include: REAR AXLE SHAFT & HUB, SWITCH & RELAY & COMPUTER, SENSOR ASSY, YAWRATE, BRACKET, YAWRATE SENSOR, WIRE, SKID CONTROL SENSOR.
