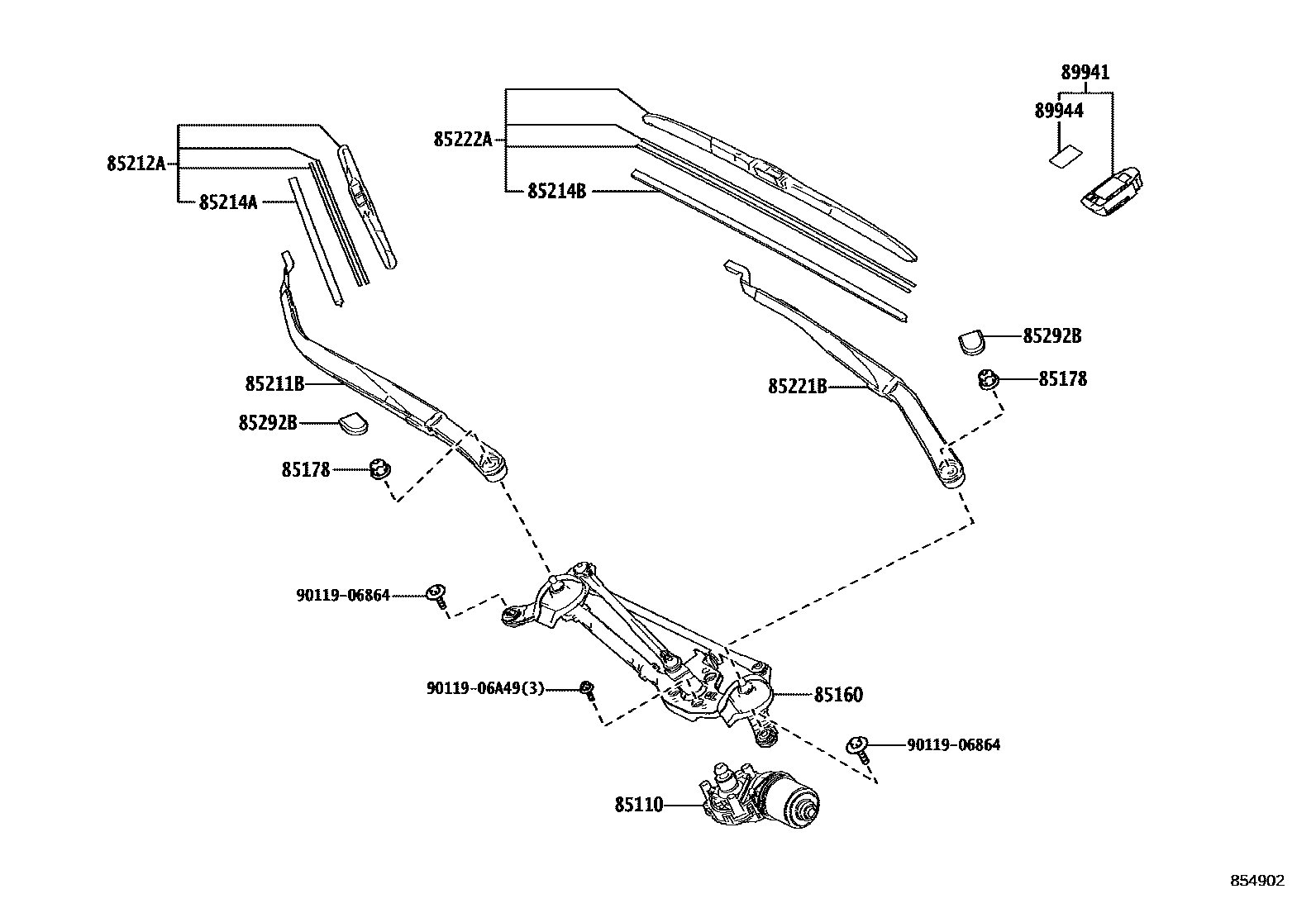

Toyota COROLLA (JPP) — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-16680iMXGA10,MXGH10,15..ARL202207

main85110-16710iMXGH12,15,ZVG1#..LHD202207

main85110-16720iMXGH12,15,ZVG13..RHD..EUR202207

85160LINK ASSY, WINDSHIELD WIPER

main85150-16550iMXGA10,MXGH10,15..ARL202207

main85150-16580iMXGH12,15,ZVG1#..LHD202207

main85150-16590iMXGH12,15,ZVG13..RHD..EUR202207

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iMXGA10,MXGH1#,ZVG1#202207

85211BARM, FRONT WIPER, RH

main85211-16160iMXGA10,MXGH10,15..ARL202207

main85211-16170iMXGH12,15,ZVG1#..LHD202207

main85211-16180iMXGH12,15,ZVG13..RHD..EUR202207

85212ABLADE, FR WIPER, RH

main85212-30470iMXGA10,MXGH1#,ZVG13..RHD202207

main85212-76020iMXGH12,15,ZVG1#..LHD202207

85214ARUBBER, WIPER, RH

main85214-52110iMXGA10,MXGH1#,ZVG1#202207

85214BRUBBER, WIPER, LH

main85214-28090iMXGA10,MXGH1#,ZVG1#202207

85221BARM, FRONT WIPER, LH

main85221-16210iMXGA10,MXGH10,15..ARL202207

main85221-16220iMXGH12,15,ZVG1#..LHD202207

main85221-16230iMXGH12,15,ZVG13..RHD..EUR202207

85222ABLADE, FR WIPER, LH

main85222-30650iMXGH12,15,ZVG1#..LHD202207

main85222-76030iMXGA10,MXGH1#,ZVG13..RHD202207

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iMXGA10,MXGH1#,ZVG1#202207

89941SENSOR, RAIN

main89941-78020iMXGA10,MXGH1#,ZVG1#..E,G202207

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

89944TAPE, RAIN SENSOR

main89944-42020iMXGA10,MXGH1#,ZVG1#..E,G202207

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

9011906864

main90119-06864

9011906A49

main90119-06A49

14 parts on this diagram · 2 diagrams in section
