Toyota COROLLA (JPP) — METER

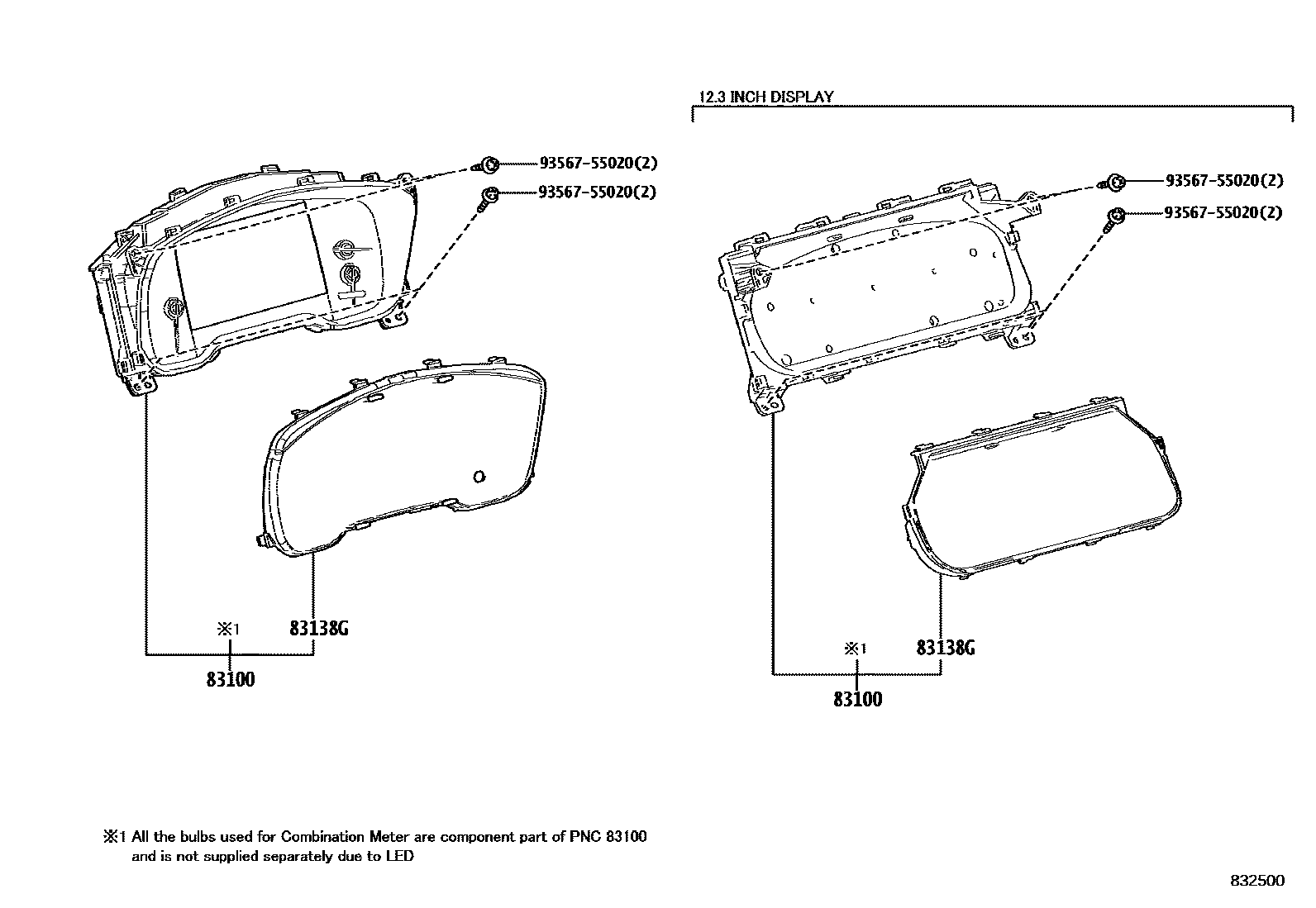

Parts diagram
83100METER ASSY, COMBINATION
main83800-16710supersedes 83800-16700i202207-202310
DENSO,HEADLAMP-SINGLE BEAM LED & *AHB
main83800-16711supersedes 83800-16701i202311-202401
DENSO,HEADLAMP-SINGLE BEAM LED & *AHB
main83800-16740supersedes 83800-16720i202207-202310
DENSO,HEADLAMP-SINGLE BEAM LED & *AHB
main83800-16741supersedes 83800-16721i202311-202401
DENSO,HEADLAMP-SINGLE BEAM LED & *AHB
main83800-16760i202207-202303
DENSO
main83800-16761i202304-202401
DENSO
sub83800-16762
main83800-16770i202207-202303
DENSO
main83800-16771i202304-202401
DENSO
sub83800-16772
main83800-16780i202207-202303
DENSO
main83800-16781i202304-202401
DENSO
sub83800-16782
main83800-16790i202207-202303
DENSO
main83800-16791i202304-202401
DENSO
main83800-16800i202207-202303
DENSO,HEADLAMP-SINGLE BEAM LED & *AHB
main83800-16801i202304-202401
DENSO,HEADLAMP-SINGLE BEAM LED & *AHB
sub83800-16802
main83800-16810i202207-202303
DENSO
main83800-16811i202304-202401
DENSO
sub83800-16812
main83800-16830i202207-202303
DENSO,HEADLAMP-SINGLE BEAM LED & *AHB
main83800-16831i202304-202401
DENSO,HEADLAMP-SINGLE BEAM LED & *AHB
sub83800-16832
main83800-16890supersedes 83800-16E82i202303-202312
DENSO,HEADLAMP-SINGLE BEAM LED & *AHB
sub83800-16891
main83800-16D20i202401
DENSO
main83800-16D30i202401
DENSO
main83800-16D40i202401
DENSO
main83800-16D50i202401
DENSO
main83800-16D60i202401
DENSO
main83800-16D80i202401-202403
DENSO
main83800-16D81i202404-202409
DENSO
main83800-16D82i202410
DENSO
main83800-16D90i202401-202403
DENSO
main83800-16D91i202404-202409
DENSO
main83800-16D92i202410
DENSO
main83800-16E00i202401-202403
DENSO
main83800-16E01i202404-202409
DENSO
main83800-16E02i202410
DENSO
main83800-16E10i202401-202403
DENSO
main83800-16E11i202404-202409
DENSO
main83800-16E12i202410
DENSO
main83800-16E20i202401-202403
DENSO
main83800-16E21i202404-202409
DENSO
main83800-16E22i202410
DENSO
main83800-16E30i202401-202403
DENSO
main83800-16E31i202404-202409
DENSO
main83800-16E32i202410
DENSO
main83800-16E50i202401-202403
DENSO
main83800-16E51i202404-202409
DENSO
main83800-16E52i202410
DENSO
main83800-16E70i202401-202403
DENSO
main83800-16E71i202404-202409
DENSO
main83800-16E72i202410
DENSO
main83800-16E80i202401-202403
DENSO
sub83800-16E81
main83800-16750supersedes 83800-16730i202207-202310
DENSO,HEADLAMP-SINGLE BEAM LED & *AHB,*614
main83800-16751supersedes 83800-16731i202311-202401
DENSO,HEADLAMP-SINGLE BEAM LED & *AHB,*614
main83800-16820i202207-202303
DENSO,UNITED KINGDOM,MALTA SPEC
main83800-16821i202304-202401
DENSO,UNITED KINGDOM,MALTA SPEC
sub83800-16822
main83800-16840i202207-202303
DENSO,UNITED KINGDOM,MALTA SPEC
main83800-16841i202304-202401
DENSO,UNITED KINGDOM,MALTA SPEC
sub83800-16842
main83800-16A10i202303-202312
DENSO,UNITED KINGDOM,MALTA SPEC
sub83800-16A11
main83800-16A20i202303-202312
DENSO,UNITED KINGDOM,MALTA SPEC
sub83800-16A21
main83800-16E40i202401-202403
DENSO,UNITED KINGDOM,MALTA SPEC
main83800-16E41i202404-202409
DENSO,UNITED KINGDOM,MALTA SPEC
main83800-16E42i202410
DENSO,UNITED KINGDOM,MALTA SPEC
main83800-16E60i202401-202403
DENSO,UNITED KINGDOM,MALTA SPEC
main83800-16E61i202404-202409
DENSO,UNITED KINGDOM,MALTA SPEC
main83800-16E62i202410
DENSO,UNITED KINGDOM,MALTA SPEC
main83800-16E90i202401-202403
DENSO,UNITED KINGDOM,MALTA SPEC
main83800-16E91i202404-202409
DENSO,UNITED KINGDOM,MALTA SPEC
main83800-16E92i202410
DENSO,UNITED KINGDOM,MALTA SPEC
main83800-16F00i202401-202403
DENSO,UNITED KINGDOM,MALTA SPEC
main83800-16F01i202404-202409
DENSO,UNITED KINGDOM,MALTA SPEC
main83800-16F02i202410
DENSO,UNITED KINGDOM,MALTA SPEC
83138GGLASS, COMBINATION METER
main83852-16760i202207
main83852-1AK50i202207
9356755020
main93567-55020

3 parts on this diagram · 1 diagram in section
