Toyota COROLLA JPP — WINDSHIELD WIPER

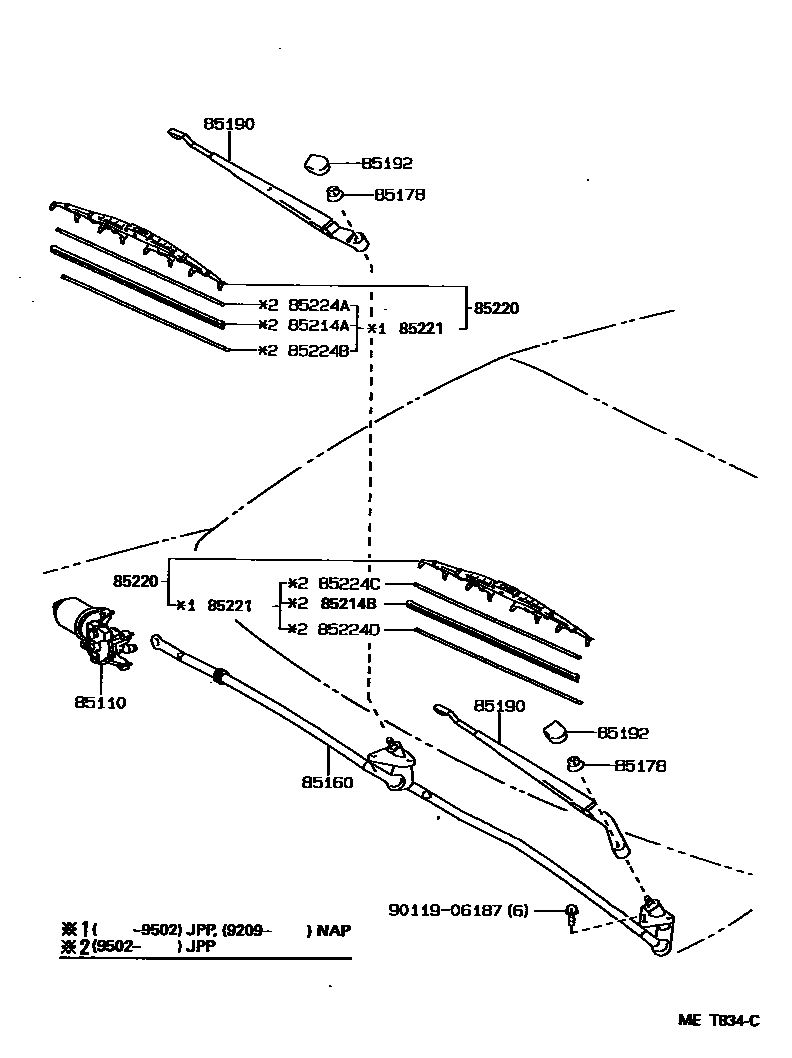

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12820i199206-199608

main85110-12830i199206-199608

COLD SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85150-12780i199206-199608

main85150-12790i199206-199608

COLD SPEC

main85150-12791i199608

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113×2i199206

85190ARM ASSY, WINDSHIELD WIPER

main85211-12300i199206

RH

main85221-12270i199206

LH

85192COVER, WINDSHIELD WIPER ARM

main85292-12020×2i199206

85214ARUBBER, WIPER, RH

main85214-20330i199502

85214BRUBBER, WIPER, LH

main85214-30260i199502

85220BLADE ASSY, WINDSHIELD WIPER

main85212-12300i199206-199212

RH

main85212-12301i199212

RH

main85222-12710i199206-199212

LH

main85222-12711i199212

LH

85221BLADE, WINDSHIELD WIPER

main85213-12300i199206-199210

LH

main85213-12310i199206-199210

RH

main85213-12330i199210-199502

LH

main85213-30270i199210-199502

RH

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-30430i199502

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-30420i199502

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-30380i199502

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-30380i199502

9011906187

main90119-06187

14 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota COROLLA JPP

This section contains 14 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA JPP. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM.
