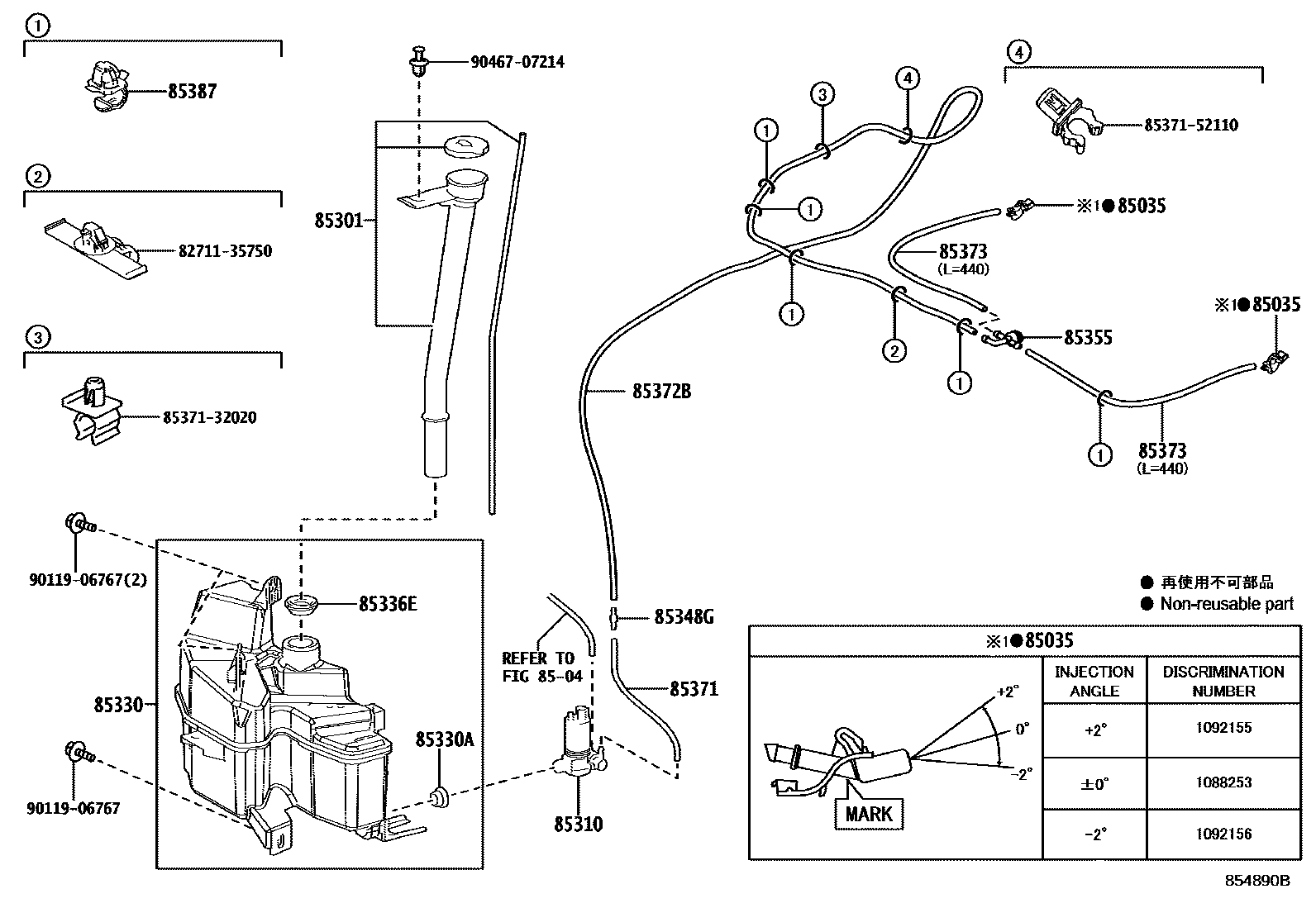

Toyota COROLLA JPP — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-16120×2iMXGA10,MXGH1#,ZVG1#202207

ANGLE 0

main85381-16130×2iMXGA10,MXGH1#,ZVG1#202207

ANGLE +2

main85381-16140×2iMXGA10,MXGH1#,ZVG1#202207

ANGLE -2

8504

85301INLET SUB-ASSY, WASHER

main85301-16010iMXGA10,MXGH1#,ZVG1#202207

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-16190iMXGA10,MXGH1#,ZVG12202301-202302

main85330-16200iZVG13202207

85330JAR ASSY, WINDSHIELD WASHER

main85315-16230iMXGA10,MXGH1#,ZVG1#202207

85330ABUSH, WINDSHIELD WASHER JAR

main90069-50012iMXGA10,MXGH1#,ZVG12202301-202303

main90069-50016iZVG13202207

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-16230iMXGA10,MXGH1#,ZVG12202301-202303

main85336-48330iMXGA10,MXGH1#,ZVG12202207-202301

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-02650iMXGA10,MXGH1#,ZVG1#202207

85355VALVE, WINDSHIELD WASHER HOSE

main85376-02650iMXGA10,MXGH1#,ZVG1#202207

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46210iMXGA10,MXGH1#,ZVG1#202207

*H,L=210

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-46230iMXGA10,MXGH1#,ZVG1#202207

L=2300

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-46210×2iMXGA10,MXGH1#,ZVG1#202207

L=340

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main90469-07011×5iMXGA10,MXGH1#,ZVG1#202207

8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35750

8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-32020

8537152110HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52110

9011906767

main90119-06767

9046707214

main90467-07214

18 parts on this diagram · 1 diagram in section
