Toyota COROLLA JPP — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

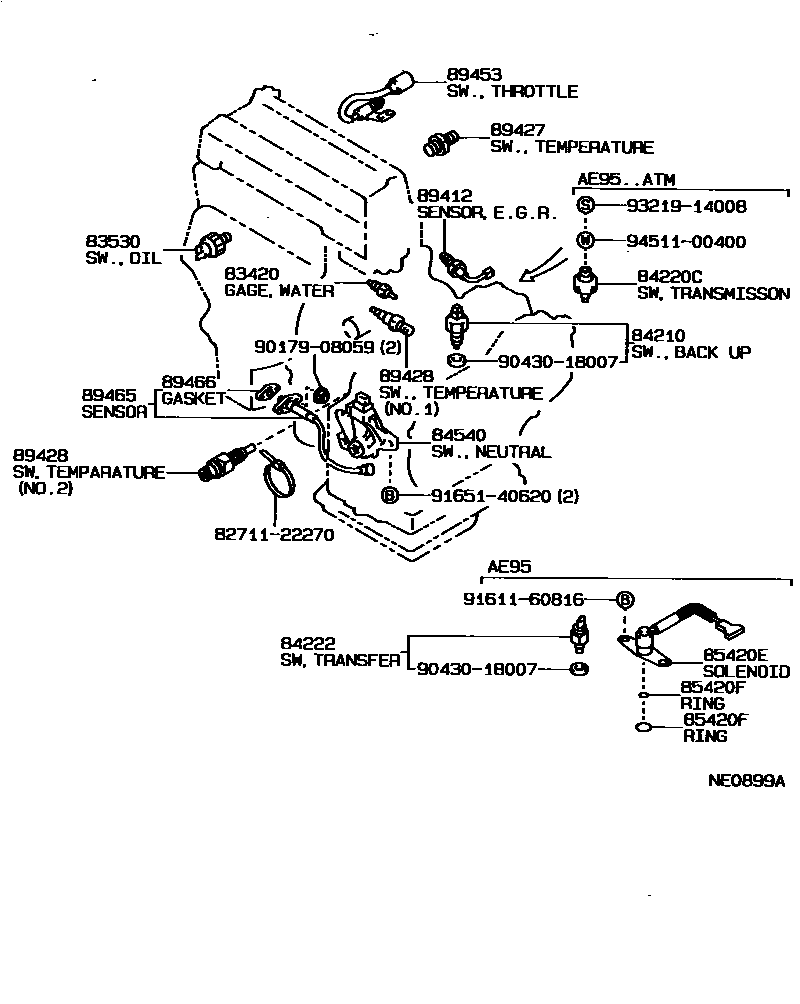

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iAE9#198708-199009

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30050iAE9#198708-198908

main83530-30051iAE9#199003-199206

sub83530-60050

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAE9#..5F198708-199206

sub84210-52050

84220CSWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-30050iAE95..4FC198802-199009

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iAE95..5F198802-199009

84540SWITCH ASSY, NEUTRAL START

main84540-16030iAE9#..ATM198708-199206

85420ESOLENOID ASSY, TRANSMISSION

main85420-12080iAE95..4FC198802-199009

85420FRING, O(FOR TRANSMISSION SOLENOID)

main90301-11001iAE95..4FC198802-199009

1D=10.0

main90301-23001iAE95..4FC198802-199009

1D=23.5

89412SENSOR, E.G.R GAS TEMPERATURE

main89412-12010iAE92..ATM..USA198908-199106

89427SWITCH, TEMPERATURE DETECT

main89427-12090iAE92198708-198908

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12100iAE95..4FC198908-199009

NO.2

main89428-15011iAE9#198908-199206

NO.1

sub89428-32010

89453SWITCH, THROTTLE POSITION (FOR T.C.S.)

main89453-12040iAE92198708-198908

89465SENSOR, OXYGEN

main89465-19225iAE95198802-198908

main89465-19255iAE92198708-198908

sub89465-29166

main89465-19355iAE95198908-199009

main89465-19395iAE92198908-199206

89466GASKET, OXYGEN SENSOR

main89466-20020iAE9#198810-199206

main89466-30010iAE9#198708-198810

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9017908059

main90179-08059

9043018007

main90430-18007

9161160816

main91611-60816

9165140620

main91651-40620

9321914008

main93219-14008

9451100400

main94511-00400

21 parts on this diagram · 11 diagrams in section
