Toyota COROLLA JPP — STARTER

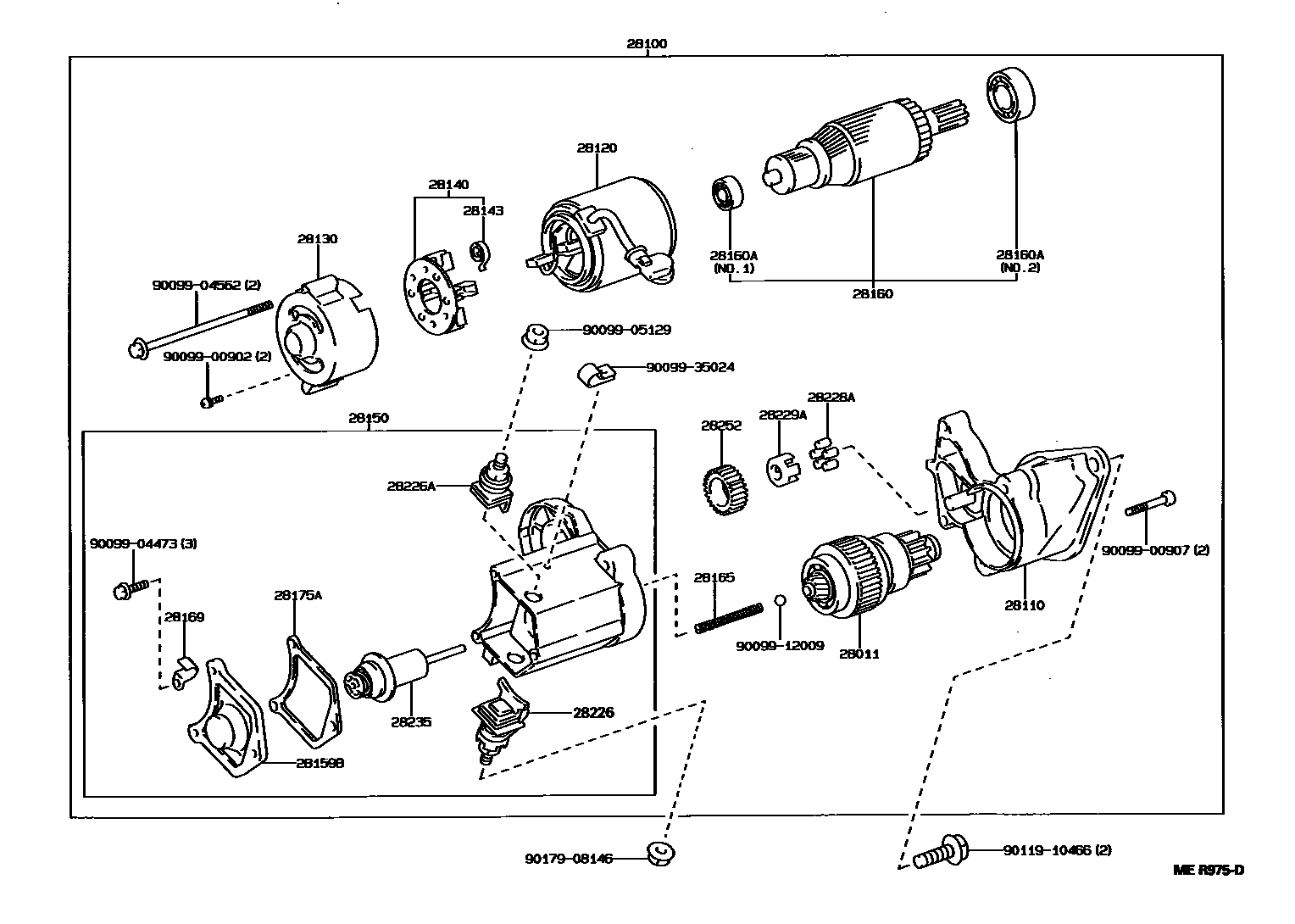

Parts diagram
28011CLUTCH SUB-ASSY, STARTER
main28011-01020i199206
(L)
main28011-26042i199206-199608
main28011-76070i199206
(J)
28100STARTER ASSY
main28100-02050i199206-199308
12V 1.4KW,*ND TENNESSEE; 12V 1.4KW,COLD SPEC,*ND TENNESSEE
main28100-02060i199308-199608
12V 1.4KW,COLD SPEC,*ND TENNESSEE
main28100-16150i199308-199608
12V 1.0KW
main28100-16210i199206-199308
12V 1.0KW
main28100-16220i199206-199308
12V 1.4KW,COLD SPEC,NIPPONDENSO; 12V 1.4KW,NIPPONDENSO
main28100-16270i199308
12V 1.4KW,NIPPONDENSO
28110HOUSING ASSY, STARTER DRIVE
main28110-02040i199206
(L)
main28110-16150i199206-199608
main28110-16220i199206-199608
COLD SPEC,(J)
28120YOKE ASSY, STARTER
main28120-01020i199206-199402
(L)
main28120-01030i199402
(L)
main28120-26071i199206-199608
main28120-66040i199402
(J)
main28120-74070i199206-199402
(J)
28130FRAME ASSY, STARTER COMMUTATOR END
main28130-02040i199206
(L)
main28130-10040i199206-199608
main28130-35060i199206
(J)
28140HOLDER ASSY, STARTER BRUSH
main28140-01020i199206-199608
COLD SPEC,(L)
main28140-26070i199206-199608
main28140-76070i199206
(J)
28143SPRING, STARTER BRUSH
main90099-17112×4i199206
28150SWITCH ASSY, MAGNET STARTER
main28150-01020i199206-199308
(L); COLD SPEC,(L)
main28150-01030i199308-199402
(L); COLD SPEC,(L)
main28150-01040i199402-199608
COLD SPEC,(L)
main28150-16130i199206-199308
(J); COLD SPEC,(J)
main28150-16150i199308-199608
main28150-16210i199206-199308
main28150-16270i199308-199402
(J); COLD SPEC,(J)
main28150-16271i199402-199608
COLD SPEC,(J)
28159BCOVER, MAGNET SWITCH
main28159-07010i199402-199608
COLD SPEC,(L)
main28159-10040i199206-199608
main28159-55050i199206
(J)
28160ARMATURE ASSY, STARTER
main28160-01020i199206
(L)
main28160-26071i199206-199608
main28160-74070i199206-199608
COLD SPEC,(J)
28160ABEARING, STARTER ARMATURE
main28253-45020i199206-199608
NO.1
main90099-10113i199206-199608
NO.2
main90099-10196i199206-199608
COLD SPEC,NO.2
main90099-10197i199206-199608
COLD SPEC,NO.1
28165SPRING, STARTER MAGNET SWITCH RETURN
main28165-01020i199206-199608
COLD SPEC,(L)
main28165-26040i199206-199608
main28165-76070i199206-199608
COLD SPEC,(J)
28169CLAMP, STARTER MOTOR LEAD WIRE
main28169-10040i199206-199608
main28169-55050i199206-199608
COLD SPEC
28175AGASKET, MAGNET SWITCH COVER
main28175-10040i199206-199608
main28175-55050i199206-199608
COLD SPEC
28226STARTER KIT, BATTERY TERMINAL
main28226-16130i199206-199308
COLD SPEC
main28226-55050i199308-199608
COLD SPEC
main28226-70040i199308-199608
main28226-72080i199206-199308
28226ASTARTER KIT, MOTOR TERMINAL
main28226-72010i199206-199608
main28226-74070i199206-199608
COLD SPEC
28228AROLLER, STARTER CLUTCH
main28228-01010×5i199206-199508
(L); COLD SPEC
main28228-26040×5i199206
(J)
28229ARETAINER, STARTER IDLE GEAR
main28229-01020i199206-199608
COLD SPEC,(L)
main28229-26040i199206-199608
main28229-74070i199206-199608
COLD SPEC,(J)
28235PLUNGER, MAGNET SWITCH
main28235-07010i199402-199608
COLD SPEC,(L)
main28235-35080i199206-199608
main28235-55050i199206
(J)
28252GEAR, STARTER IDLE
main28254-03010i199508-199608
COLD SPEC,(L)
main28254-45020i199206-199608
main28254-74070i199206-199608
COLD SPEC,(J)
9009900902
main90099-00902
9009900907
main90099-00907
9009904473
main90099-04473
9009904562
main90099-04562
9009905129
main90099-05129
9009912009
main90099-12009
9009935024
main90099-35024
9011910466
main90119-10466
9017908146
main90179-08146

29 parts on this diagram · 2 diagrams in section

STARTER for Toyota COROLLA JPP

This section contains 37 genuine Toyota parts for the STARTER system of the Toyota COROLLA JPP. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, YOKE ASSY, STARTER, RING, O(FOR STARTER YOKE).
