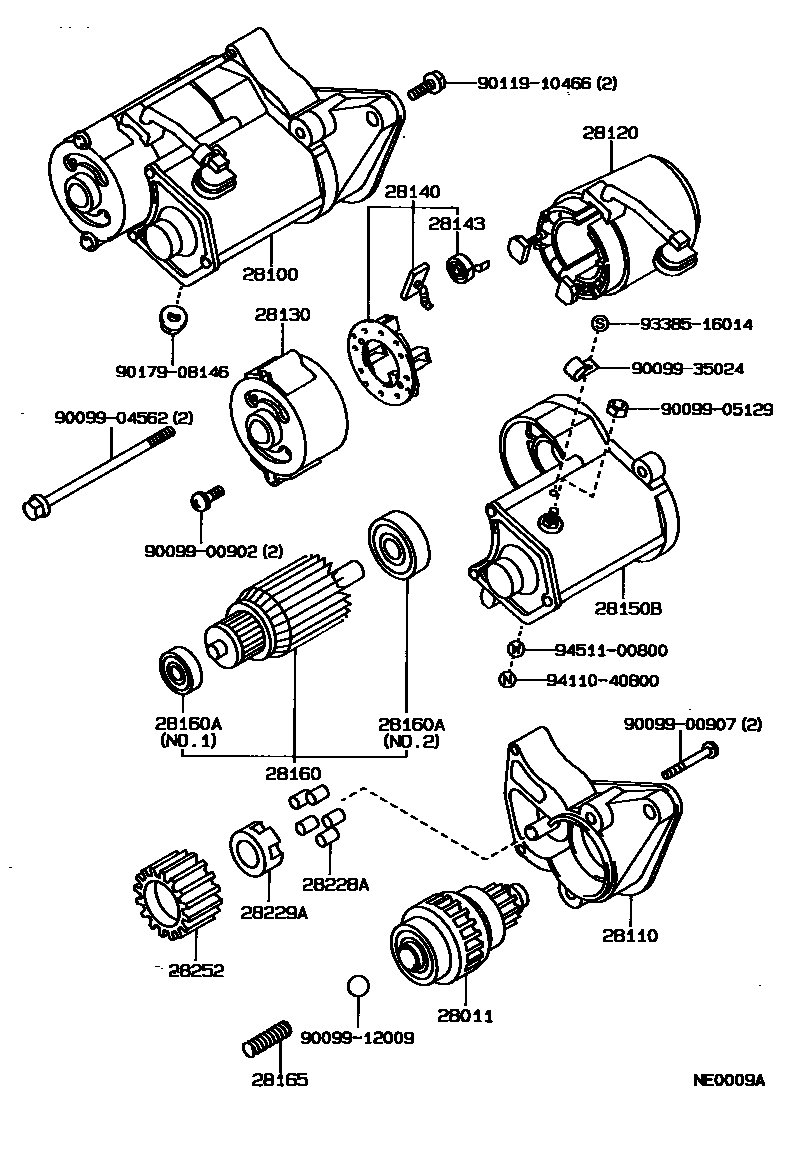

Toyota COROLLA JPP — STARTER
28011CLUTCH SUB-ASSY, STARTER
COLD SPEC
28100STARTER ASSY
12V 1.4KW
12V 1.4KW,COLD SPEC
12V 1.0KW
12V 1.4KW,COLD SPEC
12V 1.4KW
12V 1.4KW,COLD SPEC
12V 1.4KW
12V 1.0KW
12V 1.4KW
12V 1.4KW,COLD SPEC
28110HOUSING ASSY, STARTER DRIVE
COLD SPEC
COLD SPEC
COLD SPEC
28120YOKE ASSY, STARTER
COLD SPEC
COLD SPEC
28130FRAME ASSY, STARTER COMMUTATOR END
COLD SPEC
COLD SPEC
COLD SPEC
28140HOLDER ASSY, STARTER BRUSH
COLD SPEC
COLD SPEC
28143SPRING, STARTER BRUSH
28150BSWITCH ASSY, MAGNETIC
COLD SPEC
COLD SPEC
COLD SPEC
28160ARMATURE ASSY, STARTER
COLD SPEC
COLD SPEC
COLD SPEC
28160ABEARING, STARTER ARMATURE
NO.1
NO.2
COLD SPEC,NO.2
NO.2
NO.1
COLD SPEC,NO.1
NO.1
COLD SPEC,NO.1
COLD SPEC,NO.2
NO.2
28165SPRING, STARTER MAGNET SWITCH RETURN
COLD SPEC
28228AROLLER, STARTER CLUTCH
28229ARETAINER, STARTER IDLE GEAR
COLD SPEC
28252GEAR, STARTER IDLE
NO.2
NO.1
COLD SPEC
9009900902
main90099-00902
9009900907
main90099-00907
9009904562
main90099-04562
9009905129
main90099-05129
9009912009
main90099-12009
9009935024
main90099-35024
9011910466
main90119-10466
9017908146
main90179-08146
9338516014
main93385-16014
9411040800
main94110-40800
9451100800
main94511-00800
25 parts on this diagram · 4 diagrams in section
STARTER for Toyota COROLLA JPP
This section contains 31 genuine Toyota parts for the STARTER system of the Toyota COROLLA JPP. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, YOKE ASSY, STARTER, RING, O(FOR STARTER YOKE).
