Toyota COROLLA JPP — PARTIAL ENGINE ASSEMBLY

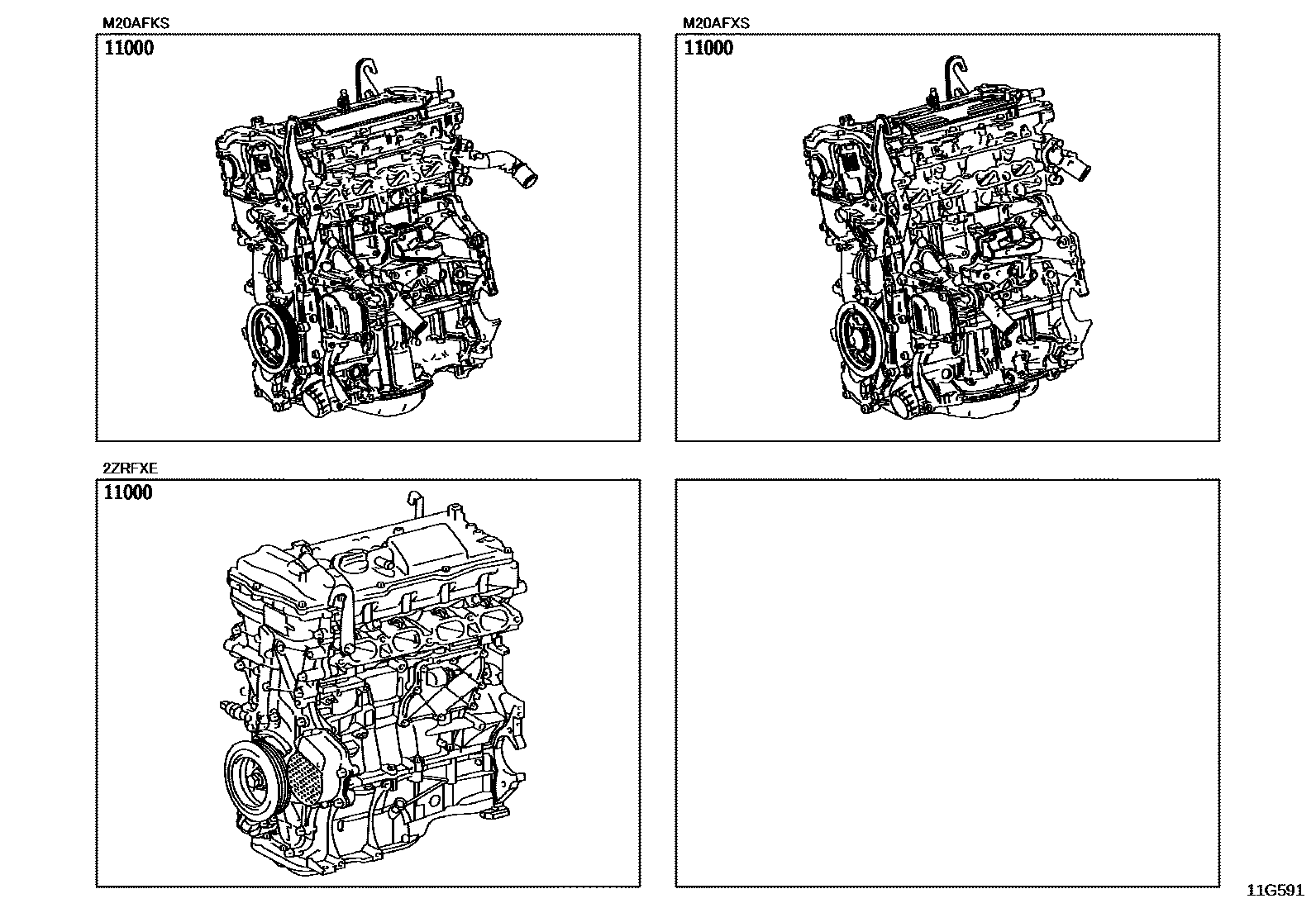

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-24380i202207

main19000-24390i202207-202409

main19000-2U030i202409

main19000-37A80i202207

1 parts on this diagram · 1 diagram in section
