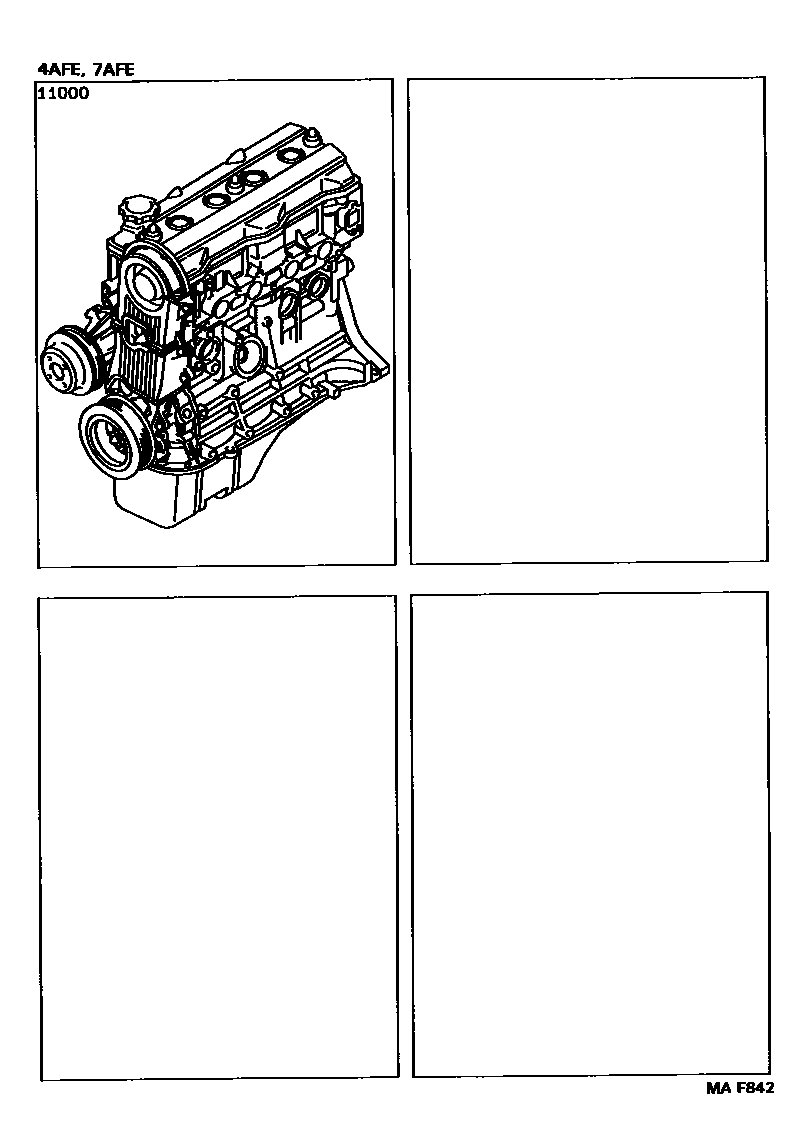

Toyota COROLLA JPP — PARTIAL ENGINE ASSEMBLY

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-1A210i199206-199508

main19000-1A220i199206-199508

CALIFORNIA SPEC

main19000-1A230i199206-199408

main19000-1A240i199206-199408

CALIFORNIA SPEC

main19000-1A340i199408-199704

main19000-1A430i199508-199704

1 parts on this diagram · 1 diagram in section
