Toyota COROLLA JPP — MOUNTING

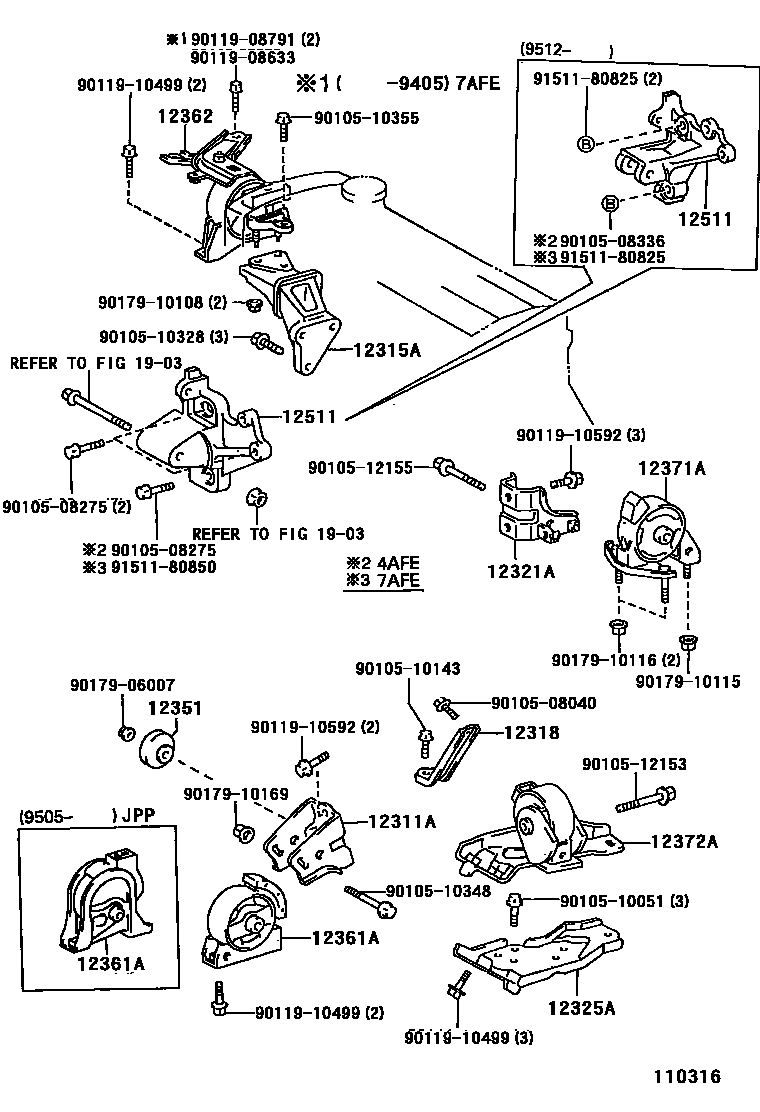

Parts diagram

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-15130i199206

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-15080i199206-199306

main12315-15081i199306

12318STAY, ENGINE MOUNTING, LH

main12318-15020i199206-199411

main12318-15030i199206-199411

main12318-15040i199206-199411

main12318-15050i199411

main12318-15060i199411

main12318-16110i199411

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-15120i199206

main12321-15130i199206

main12321-15140i199206

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-11130i199206

main12325-16120i199206

main12325-16170i199206

12351DAMPER, ENGINE MOUNTING

main12351-15060i199505

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-11160i199206-199505

main12361-11170i199206-199505

main12361-15170i199505

main12361-15180i199505

main12361-16190i199206-199505

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12305-15040i199505

main12305-16050i199206-199505

main12305-16080i199206-199505

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-15240i199505-199612

main12371-15241i199612

main12371-16280i199206-199505

main12371-64210i199206

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-15160i199206-199411

main12372-15171i199411

main12372-15180i199206-199411

main12372-15181i199411

12511BRACKET, ALTERNATOR, NO.1

main12511-15050i199206-199512

main12511-15060i199512

main12511-16100i199206-199512

main12511-16110i199512

1903ALTERNATOR

→ Go to FIG 19-03

9010508040

main90105-08040

9010508275

main90105-08275

9010508336

main90105-08336

9010510051

main90105-10051

9010510143

main90105-10143

9010510328

main90105-10328

9010510348

main90105-10348

9010510355

main90105-10355

9010512153

main90105-12153

9010512155

main90105-12155

9011908633

main90119-08633

9011908791

main90119-08791

9011910499

main90119-10499

9011910592

main90119-10592

9017906007

main90179-06007

9017910108

main90179-10108

9017910115

main90179-10115

9017910116

main90179-10116

9017910169

main90179-10169

9151180825

main91511-80825

9151180850

main91511-80850

33 parts on this diagram · 3 diagrams in section

MOUNTING for Toyota COROLLA JPP

This section contains 34 genuine Toyota parts for the MOUNTING system of the Toyota COROLLA JPP. Key components include: BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), STAY, ENGINE MOUNTING, LH, BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE).
