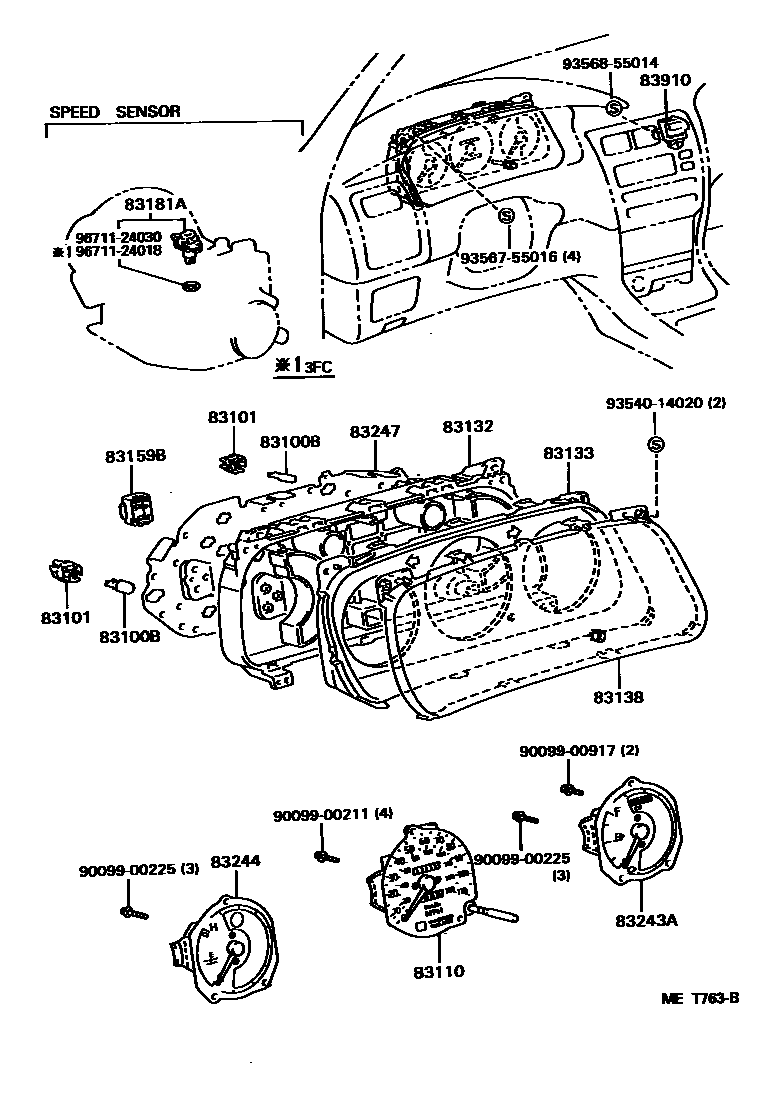

Toyota COROLLA JPP — METER
83100BBULB, COMBINATION METER, NO.1
12V 3.4W,BLUE CAP
14V 2.0W,W/O SOCKET
12V 3.78W,BLUE CAP
12V 1.4W,(L)
14V 3.0W
14V 2.0W
14V 1.4W,W(SOCKET)
12V 1.2W W/O SOCKET,(J)
main99132-12034iAE102..JPP..5F;AE101..JPP..CND;AE102..JPP..4FC..CND;AE102..JPP..SED..4FC..USA199508-199704
12V 3.4W
83101SOCKET SUB-ASSY, COMBINATION METER BULB
12V 3.4W
12V 1.4W
main83101-32020iAE101..JPP..USA;AE102..JPP..WG..USA; AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA199206-199508
14V 3.0W; 14V 3.0W LONG LIFE
83110SPEEDOMETER ASSY
(L)
(L); W(TACHOMETER),(L)
(J)
W(TACHOMETER)
W(TACHOMETER),(J)
W(TACHOMETER)
W(TACHOMETER)
83132CASE, COMBINATION METER
main83132-1A630iAE102..JPP..E;AE102..JPP..SED..CND; AE102..JPP..WG..5F;AE101..JPP..5F..CND;AE102..JPP..SED..5F..USA199206-199508
W(TACHOMETER)
83133PLATE, COMBINATION METER, NO.1
main83133-1H170iAE102..JPP..E;AE102..JPP..SED..CND; AE102..JPP..WG..5F;AE101..JPP..5F..CND;AE102..JPP..SED..5F..USA199206-199508
W(TACHOMETER)
83138GLASS, SPEEDOMETER
main83138-1A170iAE102..JPP..E;AE102..JPP..SED..CND; AE102..JPP..WG..5F;AE101..JPP..5F..CND;AE102..JPP..SED..5F..USA199206-199508
W(TACHOMETER)
83159BRELAY ASSY, METER
83181ASENSOR, SPEEDOMETER
83243AGAUGE SUB-ASSY, FUEL RECEIVER
W(TACHOMETER)
W(TACHOMETER)
W(TACHOMETER)
SECURITY SYSTEM
SECURITY SYSTEM
W(TACHOMETER)
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
W(TACHOMETER)
83247PLATE, METER CIRCUIT
SECURITY SYSTEM
W(TACHOMETER)
SECURITY SYSTEM & W(TACHOMETER)
83910CLOCK ASSY
9009900211
main90099-00211
9009900225
main90099-00225
9009900917
main90099-00917
9354014020
main93540-14020
9356755016
main93567-55016
9356855014
main93568-55014
9671124018
main96711-24018
9671124030
main96711-24030
20 parts on this diagram · 2 diagrams in section
METER for Toyota COROLLA JPP
This section contains 22 genuine Toyota parts for the METER system of the Toyota COROLLA JPP. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, CASE, COMBINATION METER, PLATE, COMBINATION METER, NO.1.
