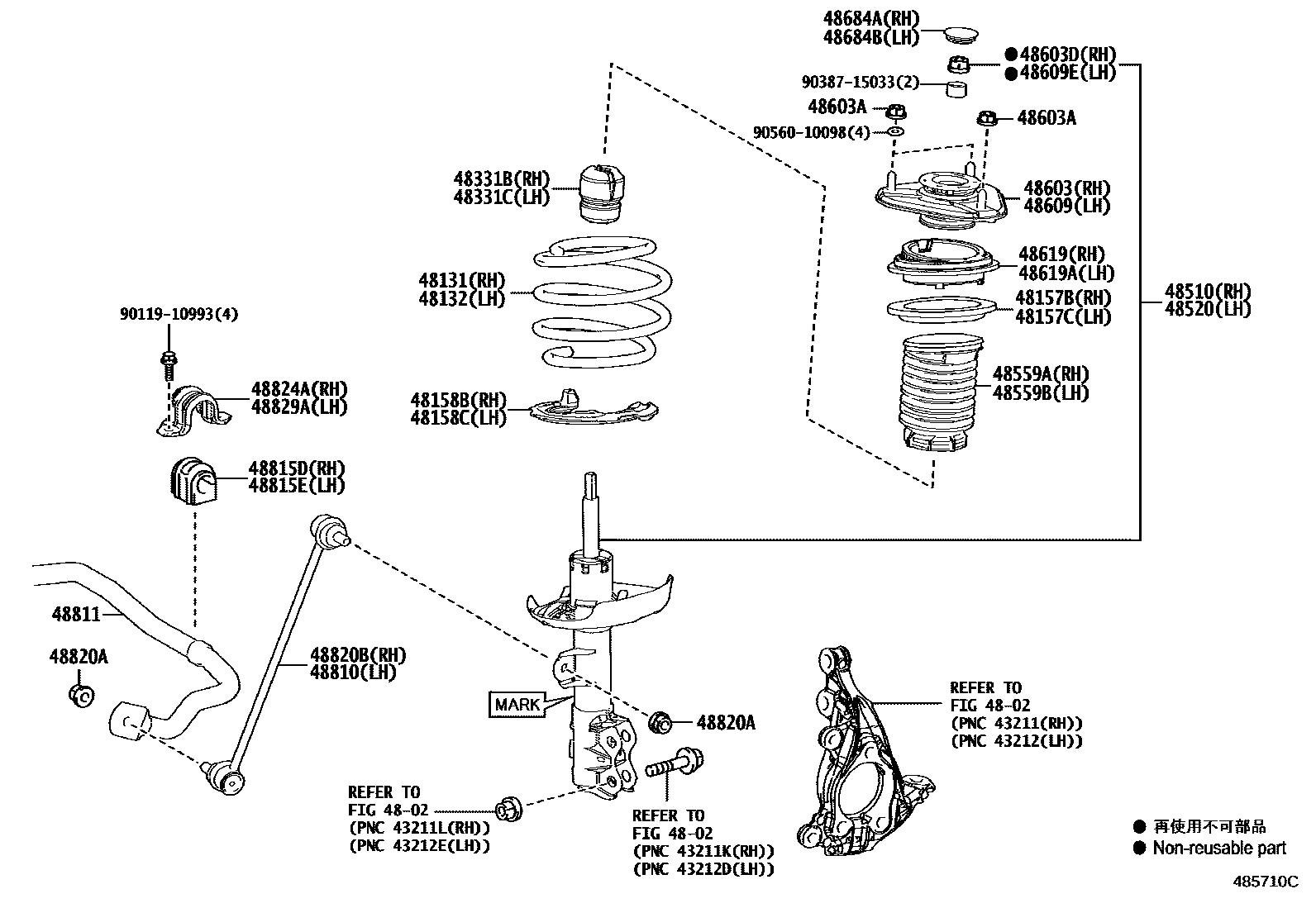

Toyota COROLLA JPP — FRONT SPRING & SHOCK ABSORBER
4802
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-16720
MARK 48510-16740
MARK 48510-16770
MARK 48510-16790
MARK 48510-16830
MARK 48510-16810
MARK 48510-16850
MARK 48510-16750,UKRAINE,MOLDOVA SPEC
MARK 48510-16840,GEORGIA,AZERBAIJAN SPEC
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-16480
MARK 48520-16500
MARK 48520-16530
MARK 48520-16550
MARK 48520-16580
MARK 48520-16560
MARK 48520-16600
MARK 48520-16510,GEORGIA,AZERBAIJAN SPEC
MARK 48520-16590,UKRAINE,MOLDOVA SPEC
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815DBUSH, FRONT STABILIZER BAR, RH
48815EBUSH, FRONT STABILIZER BAR, LH
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011910993
main90119-10993
9038715033
main90387-15033
9056010098
main90560-10098
33 parts on this diagram · 1 diagram in section
