Toyota COROLLA JPP — ABS & VSC

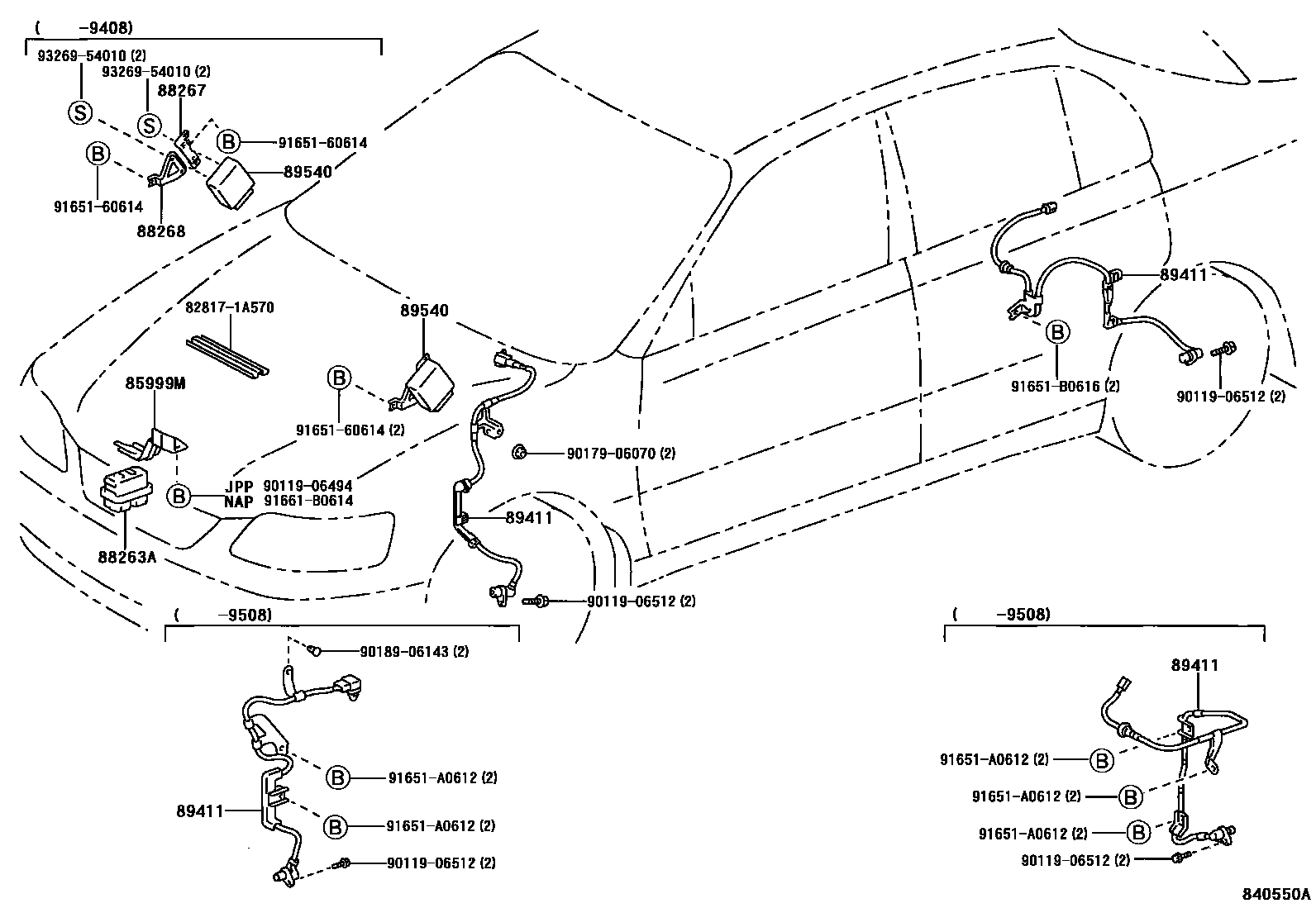

Parts diagram

85999MBRACKET, RELAY

main85999-12170i199206-199308

main85999-12320i199308

88263ARELAY, SKID CONTROL

main88263-12070i199308-199604

main88263-12090i199206-199308

main88263-32060i199604

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-12090i199206-199408

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-12090i199206-199408

89411SENSOR, SPEED

main89542-12020i199206-199508

FRONT RH

main89542-12040i199508

FRONT RH

main89543-12020i199206-199508

FRONT LH

main89543-12040i199508

FRONT LH

main89545-12020i199206-199508

REAR RH

main89545-12040i199508

REAR RH

main89546-12020i199206-199508

REAR LH

main89546-12040i199508

REAR LH

89540COMPUTER ASSY, SKID CONTROL

main89540-12190i199408-199508

main89540-12250i199508

main89541-12070i199206-199408

828171A570PROTECTOR, WIRING HARNESS, NO.1

main82817-1A570

9011906494

main90119-06494

9011906512

main90119-06512

9017906070

main90179-06070

9018906143

main90189-06143

9165160614

main91651-60614

91651A0612

main91651-A0612

91651B0616

main91651-B0616

91661B0614

main91661-B0614

9326954010

main93269-54010

16 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota COROLLA JPP

This section contains 16 genuine Toyota parts for the ABS & VSC system of the Toyota COROLLA JPP. Key components include: BRACKET, RELAY, RELAY, SKID CONTROL, BRACKET, SKID CONTROL COMPUTER, NO.1, BRACKET, SKID CONTROL COMPUTER, NO.2, SENSOR, SPEED.
