Toyota COROLLA HB — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-0D011i200703-201208

main87810-0W111i200910-201208

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-33010i200910

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-12B00i200703-200910

NO PAINT REQ.

main87910-12E10i200910-201012

NO PAINT REQ.

main87910-12E30i200910-201208

NO PAINT REQ.

87915ACOVER, OUTER MIRROR, RH

main87915-12050i200703-200910

main87915-22050-A1i200910-201208

SUPER WHITE 2,040

main87915-22050-B0i200910-201208

SILVER ME.,1F7

main87915-22050-B4i200910-201208

GRAY ME.,1G3

main87915-22050-C1i200910-201208

BLACK MC.,209

main87915-22050-D5i200910-201208

RED M.M.,3R3

main87915-22050-J0i200910-201208

DK.BLUE MC.,8S6

main87915-22050-J2i200910-201208

BLUE ME.,8T4

main87915-22050-J4i200910-201208

LT.BLUE M.M.,8S1

main87915-22050-J5i200910-201208

BLUE ME.,8T7

main87915-33010-A0i200703-200910

SUPER WHITE 2,040

main87915-33010-A0i200703-200910

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,040

main87915-33010-B1i200703-200910

GRAY ME.,1G3

main87915-33010-B1i200703-200910

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAY ME.,1G3

main87915-33010-B2i200703-200910

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1C0

main87915-33010-B2i200703-200910

SILVER ME.,1C0

main87915-33010-C1i200703-200910

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209

main87915-33010-C1i200703-200910

BLACK MC.,209

main87915-33010-D0i200703-200910

RED M.M.,3R3

main87915-33010-D0i200703-200910

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),RED M.M.,3R3

main87915-33010-J2i200703-200910

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),LT.BLUE M.M.,8S1

main87915-33010-J2i200703-200910

LT.BLUE M.M.,8S1

main87915-33010-J3i200703-200910

DK.BLUE MC.,8S6

main87915-33010-J3i200703-200910

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE MC.,8S6

main87915-33010-J4i200703-200910

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE ME.,8T8

main87915-33010-J4i200703-200910

DK.BLUE ME.,8T8

main87915-44040i200910-201012

87931OUTER MIRROR, RH

main87931-12B00i200703-200910

main87931-22A10i200910-201208

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-12B10i200703-200910

NO PAINT REQ.

main87940-12E30i200910-201012

NO PAINT REQ.

main87940-12E50i200910-201208

NO PAINT REQ.

87945BCOVER, OUTER MIRROR, LH

main87945-12050i200703-200910

main87945-22030-A1i200910-201208

SUPER WHITE 2,040

main87945-22030-B0i200910-201208

SILVER ME.,1F7

main87945-22030-B4i200910-201208

GRAY ME.,1G3

main87945-22030-C1i200910-201208

BLACK MC.,209

main87945-22030-D5i200910-201208

RED M.M.,3R3

main87945-22030-J0i200910-201208

DK.BLUE MC.,8S6

main87945-22030-J2i200910-201208

BLUE ME.,8T4

main87945-22030-J4i200910-201208

LT.BLUE M.M.,8S1

main87945-22030-J5i200910-201208

BLUE ME.,8T7

main87945-33010-A0i200703-200910

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,040

main87945-33010-A0i200703-200910

SUPER WHITE 2,040

main87945-33010-B1i200703-200910

GRAY ME.,1G3

main87945-33010-B1i200703-200910

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAY ME.,1G3

main87945-33010-B2i200703-200910

SILVER ME.,1C0

main87945-33010-B2i200703-200910

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1C0

main87945-33010-C1i200703-200910

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLACK MC.,209

main87945-33010-C1i200703-200910

BLACK MC.,209

main87945-33010-D0i200703-200910

RED M.M.,3R3

main87945-33010-D0i200703-200910

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),RED M.M.,3R3

main87945-33010-J2i200703-200910

LT.BLUE M.M.,8S1

main87945-33010-J2i200703-200910

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),LT.BLUE M.M.,8S1

main87945-33010-J3i200703-200910

DK.BLUE MC.,8S6

main87945-33010-J3i200703-200910

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE MC.,8S6

main87945-33010-J4i200703-200910

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),DK.BLUE ME.,8T8

main87945-33010-J4i200703-200910

DK.BLUE ME.,8T8

main87945-44040i200910-201012

87961MIRROR OUTER, LH

main87961-12B10i200703-200910

main87961-22A20i200910-201208

9167180612

main91671-80612

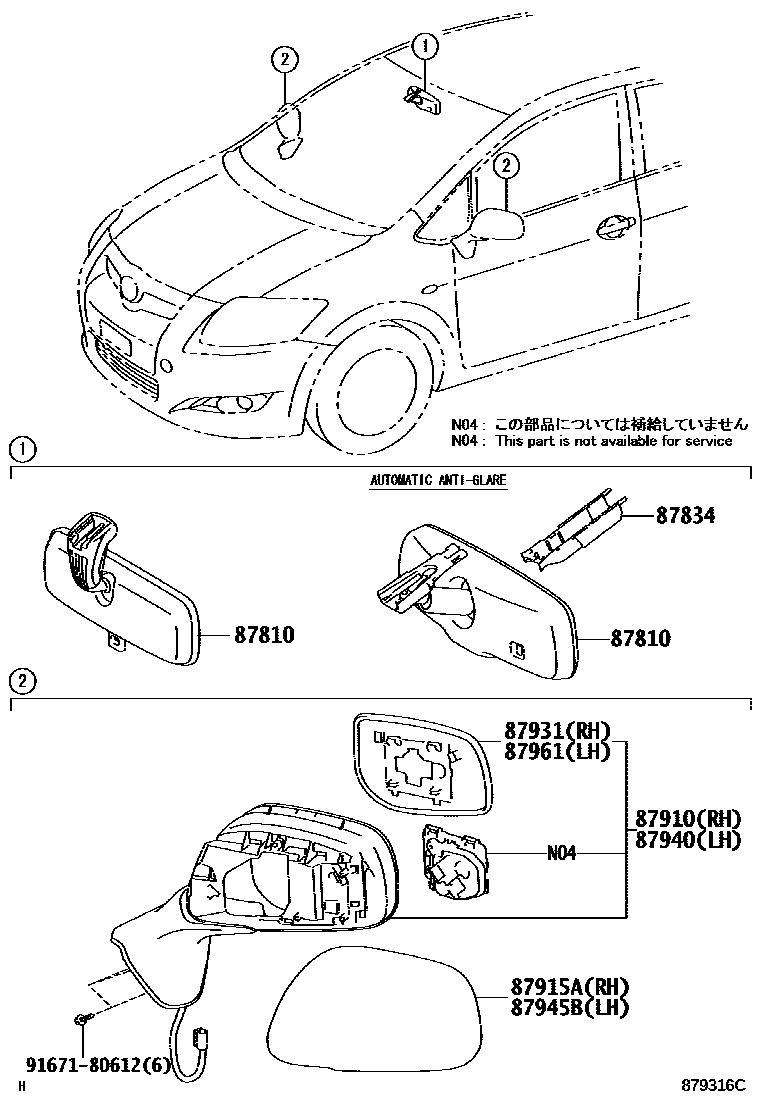

9 parts on this diagram · 2 diagrams in section

MIRROR for Toyota COROLLA HB

This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota COROLLA HB. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
