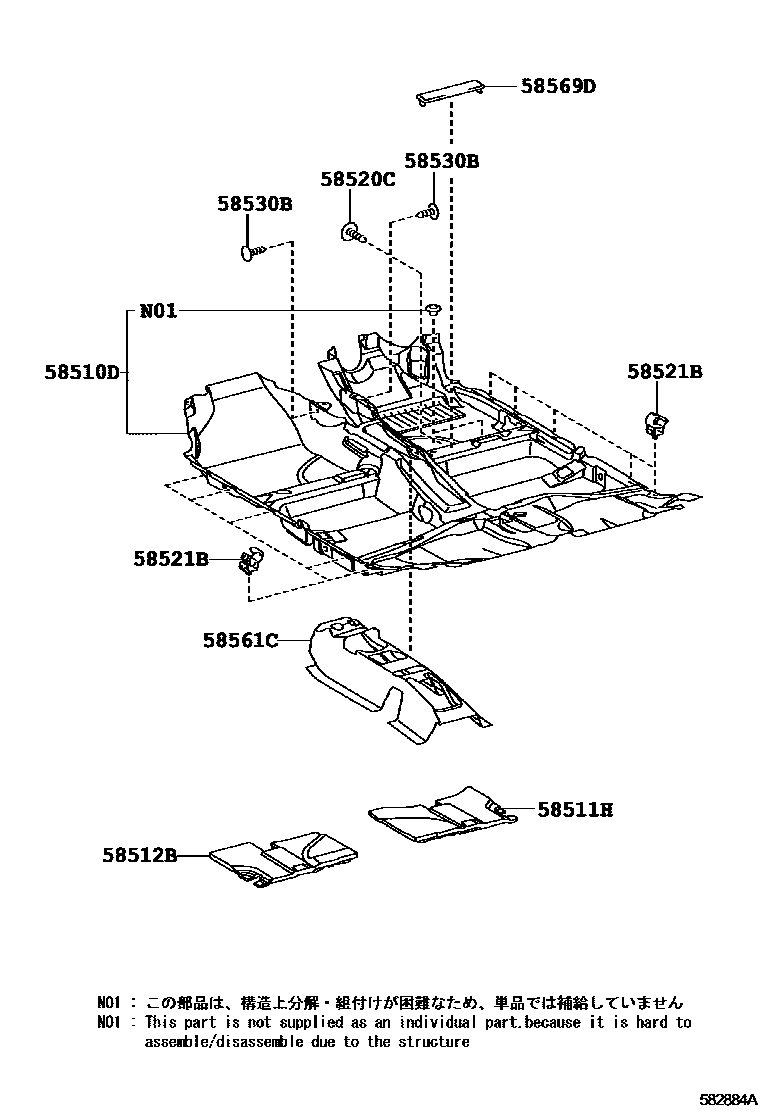

Toyota COROLLA HB — MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-12B90-B1i200703-200812

DK.GRAY,TRIM1#

main58510-12B90-E0i200703-200812

GREGE,TRIM4#

main58510-12K50-B0supersedes 58510-12B90-B1i201104-201208

FRONT SEAT-SPORT,DK.GRAY,TRIM1#

58511HMAT, FLOOR, FRONT RH

main58512-12190i200910

58512BMAT, FLOOR, FRONT LH

main58511-12610i200910

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7i200703-200812

DK.GRAY

58521BHOOK, FLOOR CARPET

main58521-12140×10i200703-200812

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B2×2i200703-200812

DK.GRAY

58561CSILENCER, FRONT FLOOR, NO.1

main58561-12040i200703-200812

main58561-12041i200902-200910

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-12010-B0i200703-200812

DK.GRAY

8 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota COROLLA HB

This section contains 8 genuine Toyota parts for the MAT & CARPET system of the Toyota COROLLA HB. Key components include: CARPET ASSY, FLOOR, FRONT, MAT, FLOOR, FRONT RH, MAT, FLOOR, FRONT LH, CLIP(FOR FRONT FLOOR CARPET), HOOK, FLOOR CARPET.
