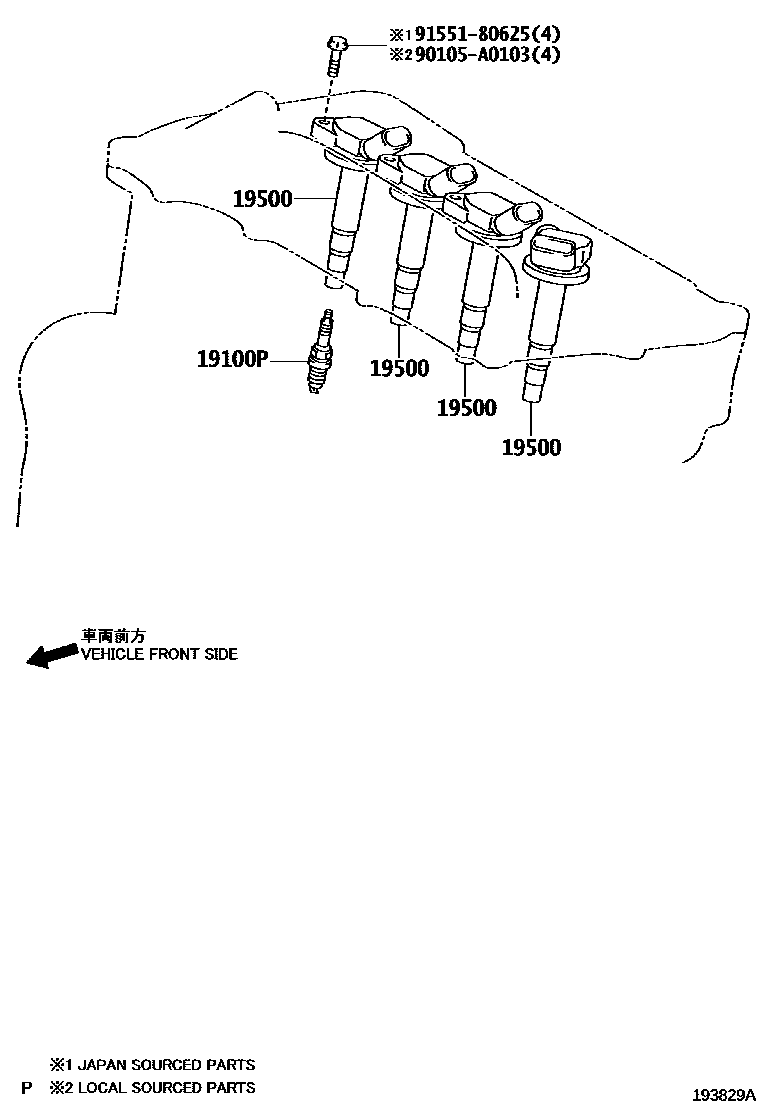

Toyota COROLLA HB — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01253×4i200703-200812

SC20HR11

19500COIL ASSY, IGNITION

main90919-02252×4i200703-200812

main90919-02258×4i201004

90105A0103

main90105-A0103

9155180625

main91551-80625

4 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota COROLLA HB

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota COROLLA HB. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
