Toyota COROLLA HBHORN

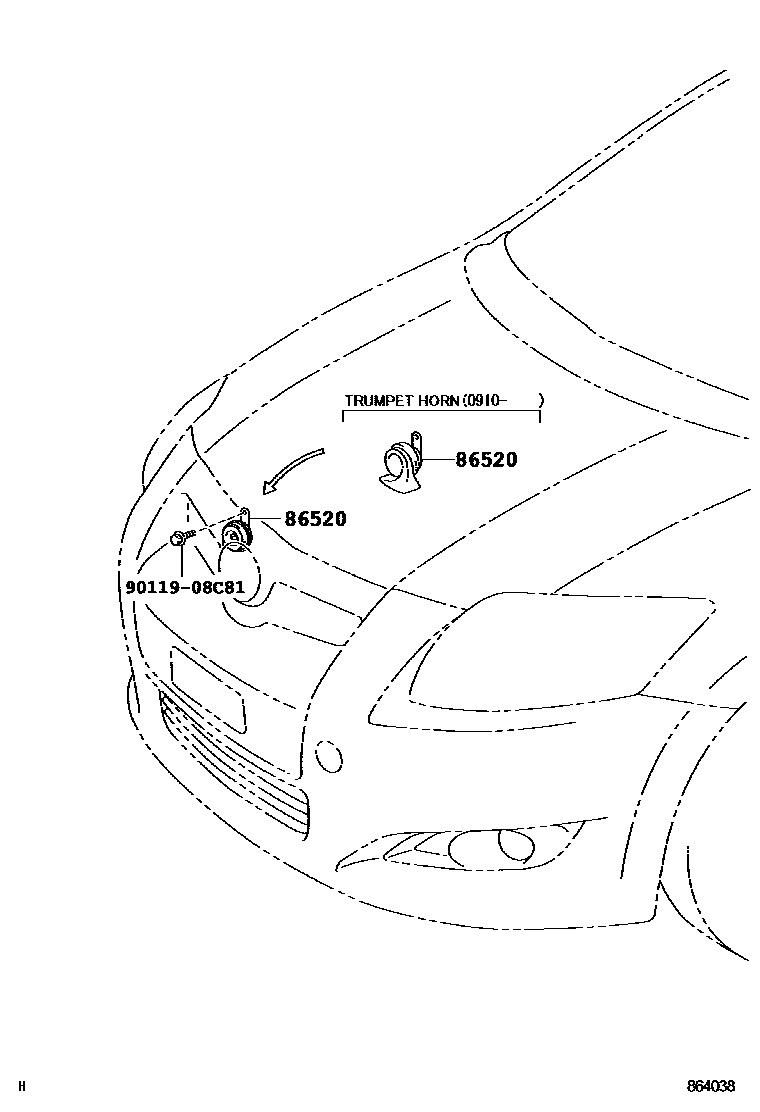

Parts diagram
86520HORN ASSY, LOW PITCHED
main86520-48030supersedes 86520-47010i200910-201003
HORN-SINGLE(TRUMPET)
9011908C81

2 parts on this diagram · 1 diagram in section

HORN for Toyota COROLLA HB

This section contains 2 genuine Toyota parts for the HORN system of the Toyota COROLLA HB. Key components include: HORN ASSY, LOW PITCHED.
