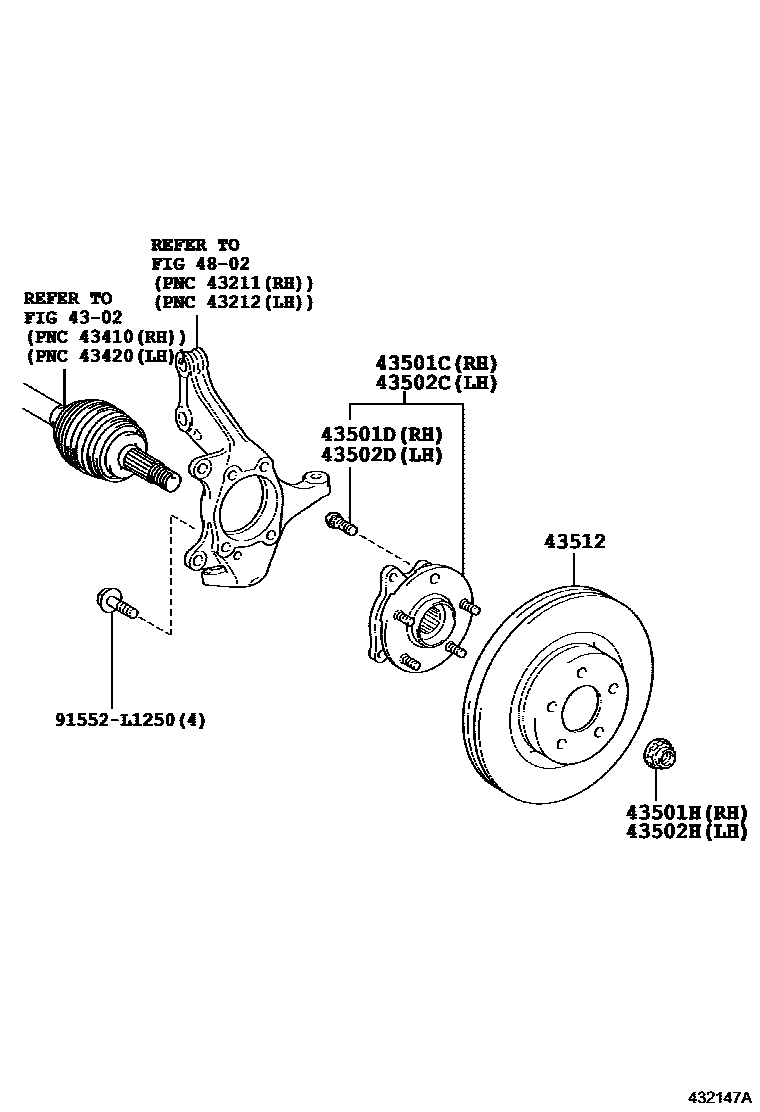

Toyota COROLLA HB — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-42010i200703-200812

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i200703-200812

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200703-200812

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-42010i200703-200812

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i200703-200812

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200703-200812

43512DISC, FRONT

main43512-12670×2i200703-200812

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

91552L1250

main91552-L1250

10 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota COROLLA HB

This section contains 10 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COROLLA HB. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH.
