Toyota COROLLA HB — FLOOR PAN & LOWER BACK PANEL

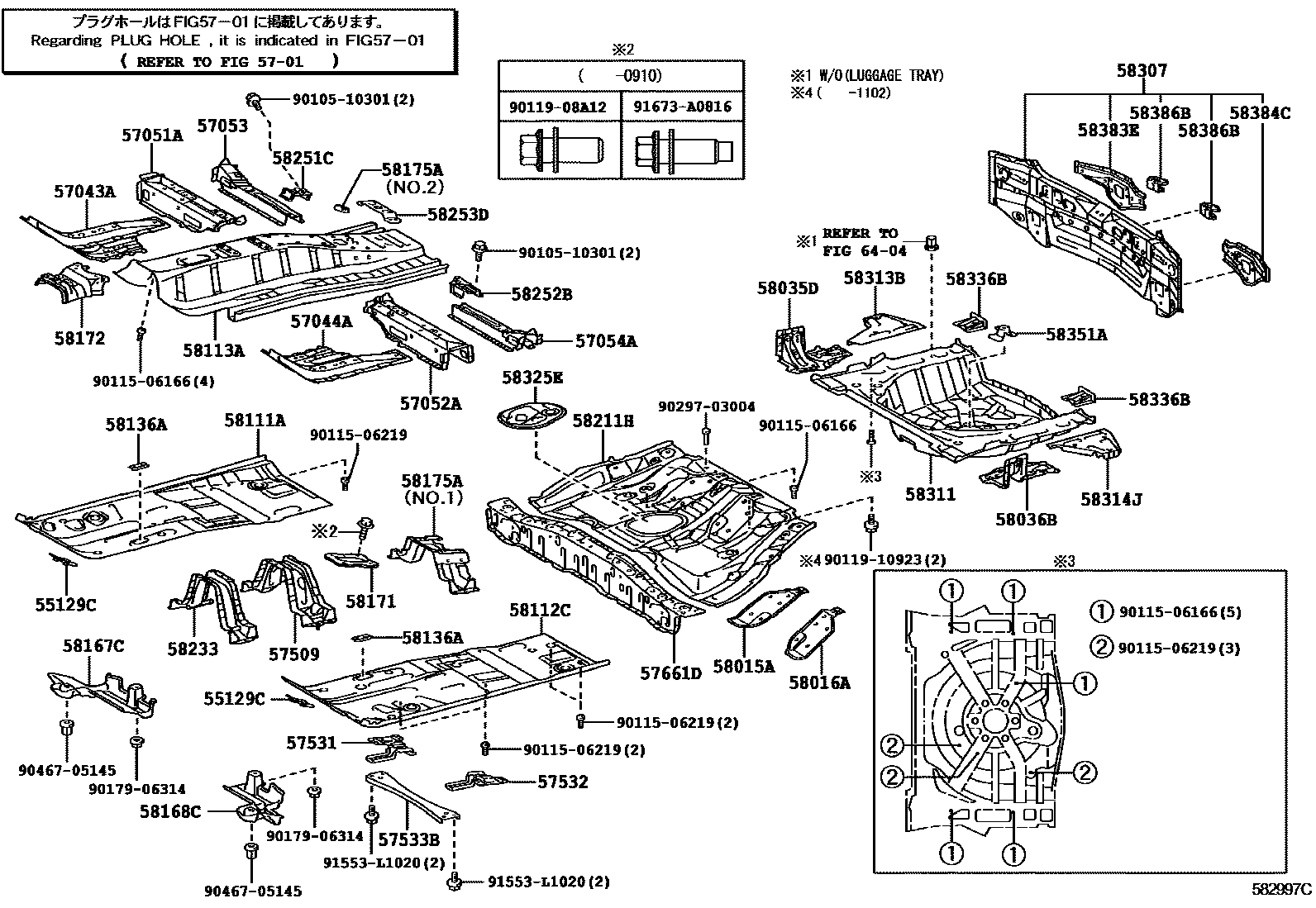

Parts diagram
55129CCOVER, DASH PANEL HOLE
main55129-12040i200703-200910
RH
main55139-12050i200703-200910
LH
5701HOLE PLUG
→ Go to FIG 57-01
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
main57043-12020i200703-200910
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
main57044-12020i200703-200910
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
main57051-12060i200703-200910
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
main57052-12010i200703-200910
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
main57053-12010i200703-200910
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
main57054-12010i200703-200910
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
main57509-12060i200703-200802
main57509-12061i200803-201201
main58161-12231i201201
57531BRACKET, FRONT FLOOR CENTER BRACE, RH
main57531-12010i200703-200910
57532BRACKET, FRONT FLOOR CENTER BRACE, LH
main57532-12010i200703-200910
57533BBRACE, FRONT FLOOR, CENTER
main57533-12010i200703-200910
57661DMEMBER, REAR FLOOR CROSS, FRONT
main57407-12101i200703-200910
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
main58015-12091i200703-200903
main58015-47041i200904-200910
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
main58016-12061i200703-200903
main58016-47031i200904-200910
58035DEXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, RH
main58305-12040i200703-200910
58036BEXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, LH
main58306-12030i200703-200910
58111APAN, FRONT FLOOR, RH
main58111-12915i200703-200910
58112CPAN, FRONT FLOOR, LH
main58112-12901i200703-200910
58113APANEL, FRONT FLOOR, CENTER
main58113-12901i200703-200910
58136ACOVER, FRONT FLOOR SERVICE HOLE
main58136-12040i200703-200910
58167CCOVER, FRONT FLOOR, CENTER RH
main58167-12010i200703-200910
58168CCOVER, FRONT FLOOR, CENTER LH
main58168-12010i200703-200910
58171REINFORCEMENT, PARKING BRAKE BASE
main58171-12120i200703-200910
58172BRACKET, COMPUTER MOUNTING, NO.3
main58173-12020i200703-200910
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
main57805-12150i200703-201207
NO.1
main58176-12020i200703-201208
NO.2
58211HPAN, CENTER FLOOR
main58211-12930i200703-200910
58233BRACKET, EXHAUST PIPE MOUNTING
main58203-12070i200703-200910
58251CBRACE, FLOOR PANEL, FRONT RH
main58251-12040i200703-200910
58252BBRACE, FLOOR PANEL, FRONT LH
main58252-12040i200703-200910
58253DBRACKET, PARKING BRAKE CABLE
main58253-12060i200703-200910
58307PANEL SUB-ASSY, BODY LOWER BACK
main58307-12A20i200703-201208
58311PAN, REAR FLOOR
main58311-12280i200703-201112
main58311-12370i201201-201202
main58311-12371i201202
58313BPANEL, REAR FLOOR SIDE, RH
main58313-12310i200703-201208
58314JPANEL, REAR FLOOR SIDE, LH
main58314-12310i200703-201208
58325ECOVER, REAR FLOOR SERVICE HOLE
main58325-12130i200703-200910
58336BREINFORCEMENT, REAR FLOOR PAN
main58336-12090i200703-200910
58351ABRACKET, SPARE WHEEL CARRIER
main58351-12060i200703-200910
58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH
main58383-12130i200703-200910
58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH
main58384-12150i200703-200910
58386BBRACKET, REAR BUMPER COVER, NO.2
main58386-12020i200703-200910
6404DECK BOARD & DECK TRIM COVER
→ Go to FIG 64-04
9010510301
main90105-10301
9011506166
main90115-06166
9011506219
main90115-06219
9011908A12
main90119-08A12
9011910923
main90119-10923
9017906314
main90179-06314
9029703004
main90297-03004
9046705145
main90467-05145
91553L1020
main91553-L1020
91673A0816
main91673-A0816

52 parts on this diagram · 1 diagram in section

FLOOR PAN & LOWER BACK PANEL for Toyota COROLLA HB

This section contains 52 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota COROLLA HB. Key components include: COVER, DASH PANEL HOLE, HOLE PLUG, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH, MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH.
