Toyota COROLLA HB — ENGINE OIL PUMP

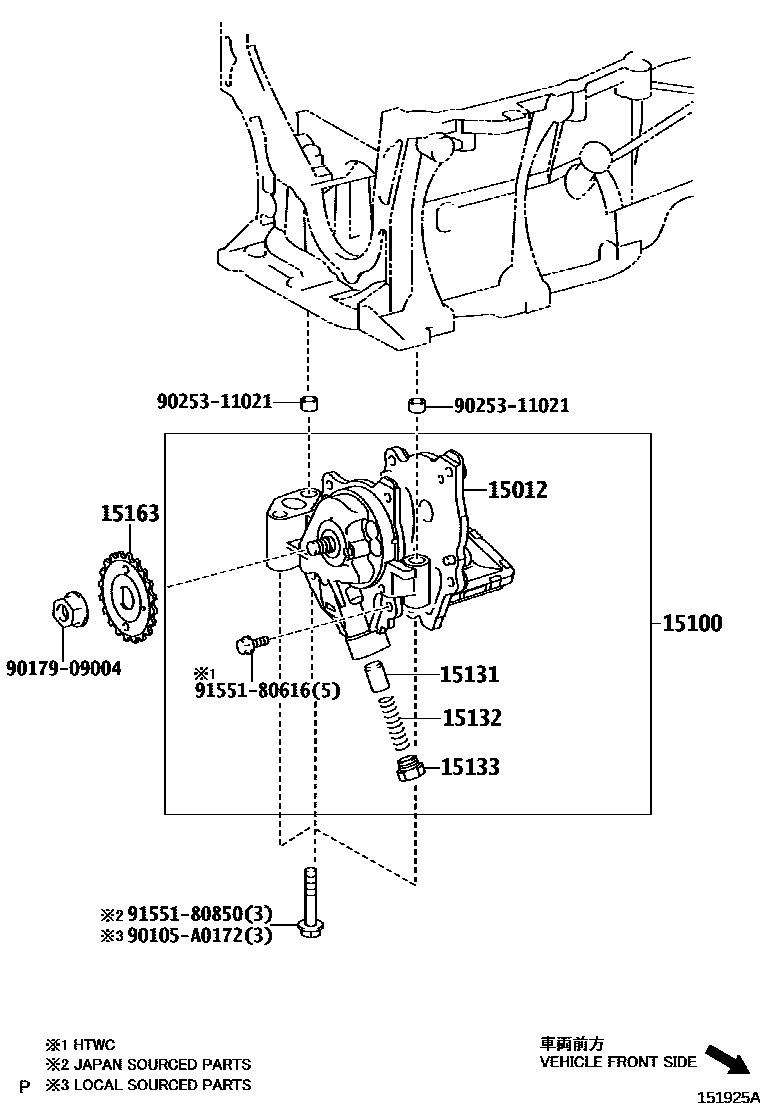

Parts diagram

15012COVER SUB-ASSY, OIL PUMP

main15012-0T010i201110

(L)

main15012-37010i200703-200812

15100PUMP ASSY, OIL

main15100-0T010i201110

(L)

main15100-37010i200703-200706

main15100-37030i200706-200812

15131VALVE, OIL PUMP RELIEF

main15131-0A040i200910

main15131-37010i200703-200706

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46060i200706-200812

main15132-65020i200703-200706

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i200703-200706

main15133-28020i200706-200812

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0H010i201110

(L)

main15163-28010i200703-200812

90105A0172

main90105-A0172

9017909004

main90179-09004

9025311021

main90253-11021

9155180616

main91551-80616

9155180850

main91551-80850

11 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota COROLLA HB

This section contains 11 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota COROLLA HB. Key components include: COVER SUB-ASSY, OIL PUMP, PUMP ASSY, OIL, VALVE, OIL PUMP RELIEF, SPRING, OIL PUMP RELIEF VALVE, PLUG, OIL PUMP RELIEF VALVE.
