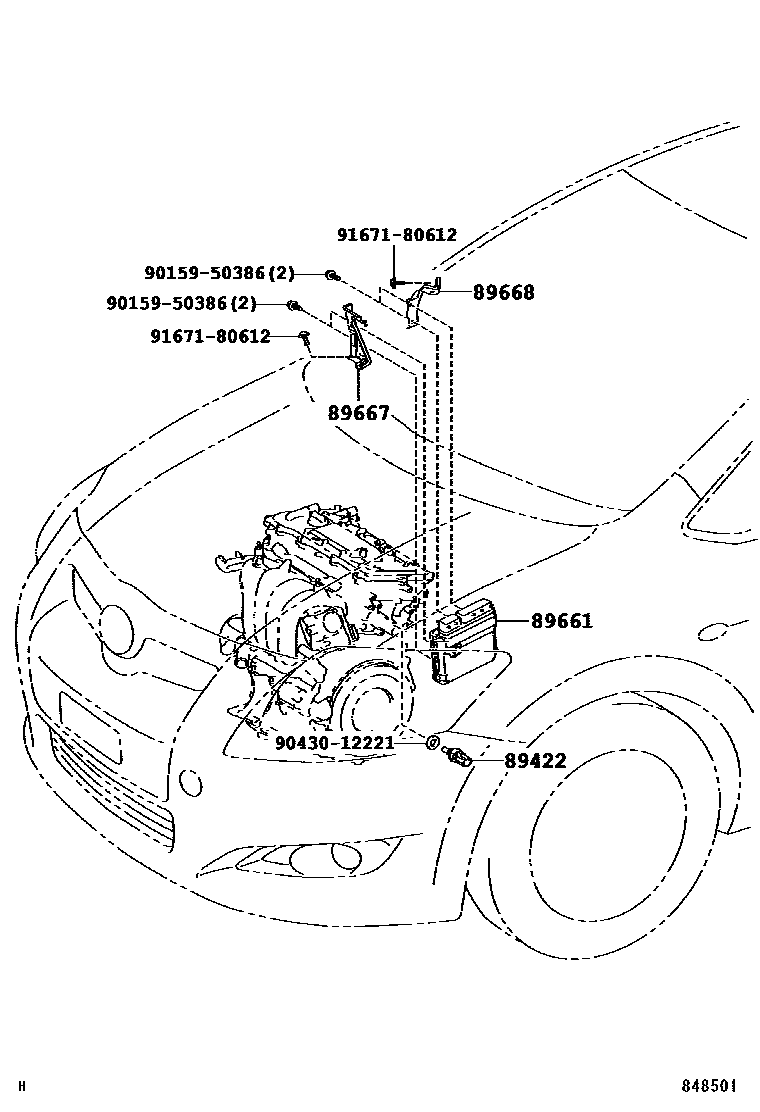

Toyota COROLLA HB — ELECTRONIC FUEL INJECTION SYSTEM

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i200703-200812

89661COMPUTER, ENGINE CONTROL

main89661-12C50i200703-200812

P/N LABEL=8966112C50

main89661-12C60i200703-200812

P/N LABEL=8966112C60

main89661-12K30i200812-200910

P/N LABEL=8966112K30

main89661-12K31i201105

main89661-12K40i200910-201104

P/N LABEL=8966112K40

main89661-12K41i201105

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12210i200703-200812

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12120i200703-200812

9015950386

main90159-50386

9043012221

main90430-12221

9167180612

main91671-80612

7 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota COROLLA HB

This section contains 7 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota COROLLA HB. Key components include: SENSOR, WATER TEMPERATURE (FOR E.F.I.), COMPUTER, ENGINE CONTROL, BRACKET, ENGINE CONTROL COMPUTER, BRACKET, ENGINE CONTROL COMPUTER, NO.2.
