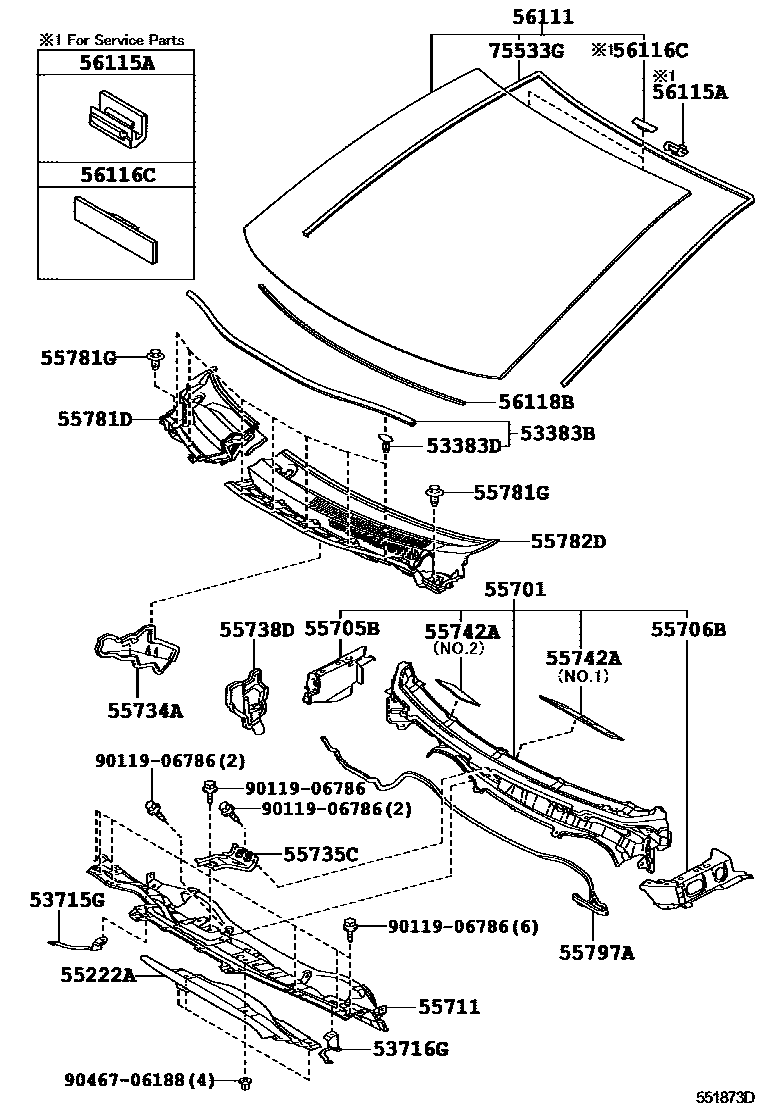

Toyota COROLLA HB — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-12150i200812-200910

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×7i200703-200812

53715GEXTENSION, FRONT FENDER APRON, REAR RH

main53715-12061i200703-200812

53716GEXTENSION, FRONT FENDER APRON, REAR LH

main53716-12071i200703-200812

55222AINSULATOR, DASH PANEL, OUTER CENTER

main55224-12010i200703-200812

55701PANEL SUB-ASSY, COWL

main55700-12A60i200703-200812

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-12070i200703-200812

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-12080i200703-200812

55711PANEL, COWL TOP, OUTER

main55701-12A10i200703-200812

55734APLATE, WATER GUARD, RH

main55734-12110i200703-200812

55735CREINFORCEMENT, COWL BODY MOUNTING, RH

main55735-12070i200703-200812

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-12120i200703-200812

55742ASHEET, COWL TOP INSULATOR

main55742-12130i200703-200812

NO.1

main55743-12040i200812-200910

NO.2

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-12310i200703-200710

main55708-12311i200910

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0×2i200812-200910

BLACK

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-12090i200703-200807

main55709-12091i200808-200812

55797ASEAL, COWL WATER EXTRACT

main55797-12030i200703-200812

56111GLASS, WINDSHIELD

main56101-12100i200703-200812

*LAM,T=4.76,GREEN

main56101-12750i201003-201208

*LAM,T=4.76,GREEN

main56101-12170supersedes 56101-12770i200812-200910

*LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120i200703-200812

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i200812-200910

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-12290i200703-200812

L=1089; L=1089,INTERMITTENT WIPER-AUTO(RAIN SENSOR)

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-12630i200703-200812

9011906786

main90119-06786

9046706188

main90467-06188

24 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota COROLLA HB

This section contains 24 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota COROLLA HB. Key components include: SEAL, HOOD TO COWL TOP, CLIP(FOR HOOD TO COWL TOP SEAL), EXTENSION, FRONT FENDER APRON, REAR RH, EXTENSION, FRONT FENDER APRON, REAR LH, INSULATOR, DASH PANEL, OUTER CENTER.
