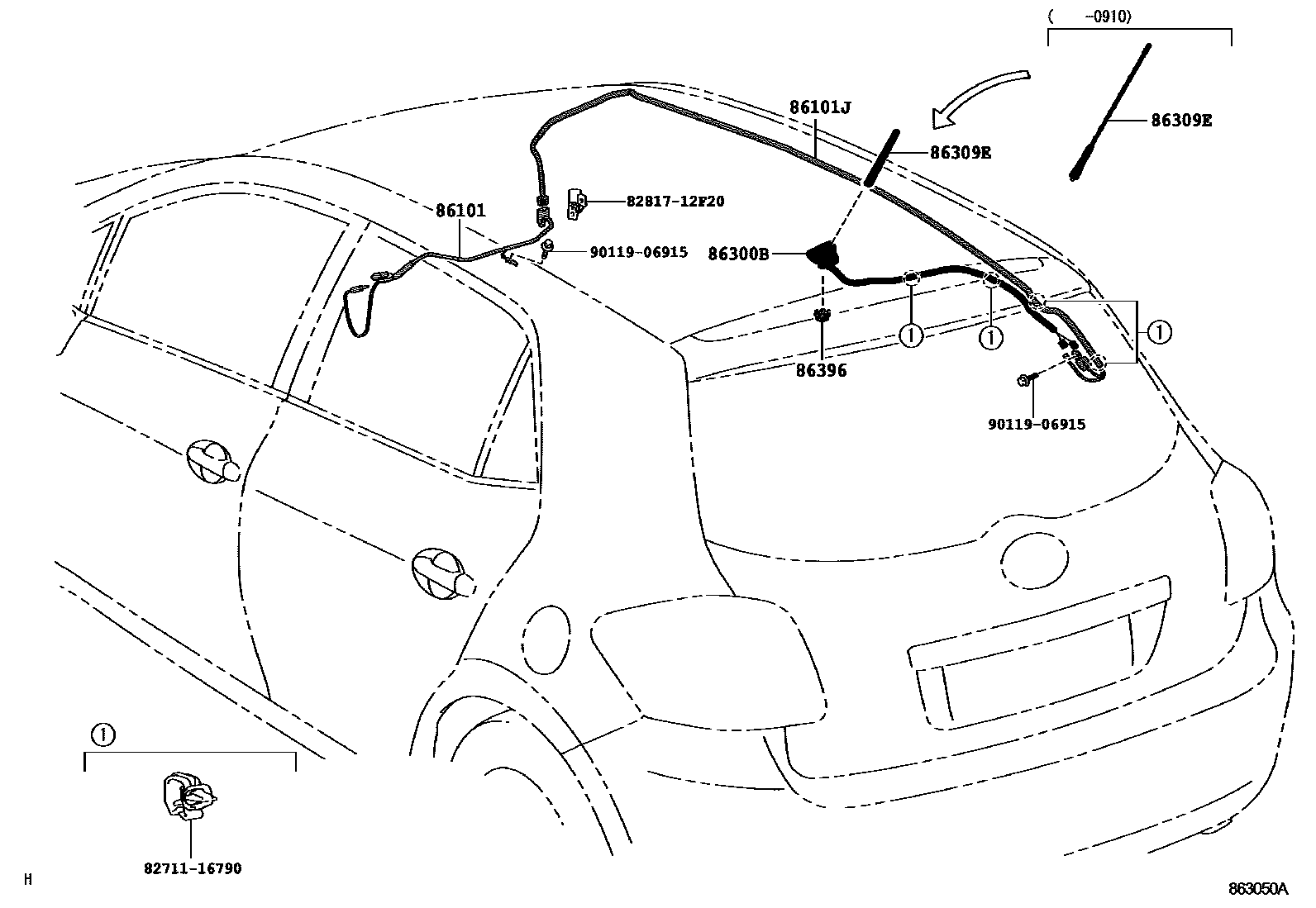

Toyota COROLLA HB — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-12460i200910

main86101-12530i200910

AUDIO-CD BLUETOOTH 6SPEAKER; AUDIO-CD RADIO 4SPEAKER; AUDIO-CD RADIO 6SPEAKER

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-12410i200812-200910

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-12840i200703-200812

main86300-12A60i200910

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-42080i200910

main86309-52040i200703-200812

86396NUT, ANTENNA

main86396-20040i200703-200812

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

8281712F20PROTECTOR, WIRING HARNESS, NO.1

main82817-12F20

9011906915

main90119-06915

8 parts on this diagram · 1 diagram in section

ANTENNA for Toyota COROLLA HB

This section contains 8 genuine Toyota parts for the ANTENNA system of the Toyota COROLLA HB. Key components include: CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.2, ANTENNA ASSY, AMPLIFIER, NO.1, POLE SUB-ASSY, ROOF ANTENNA, NUT, ANTENNA.
