Toyota COROLLA HB — WINDSHIELD WIPER

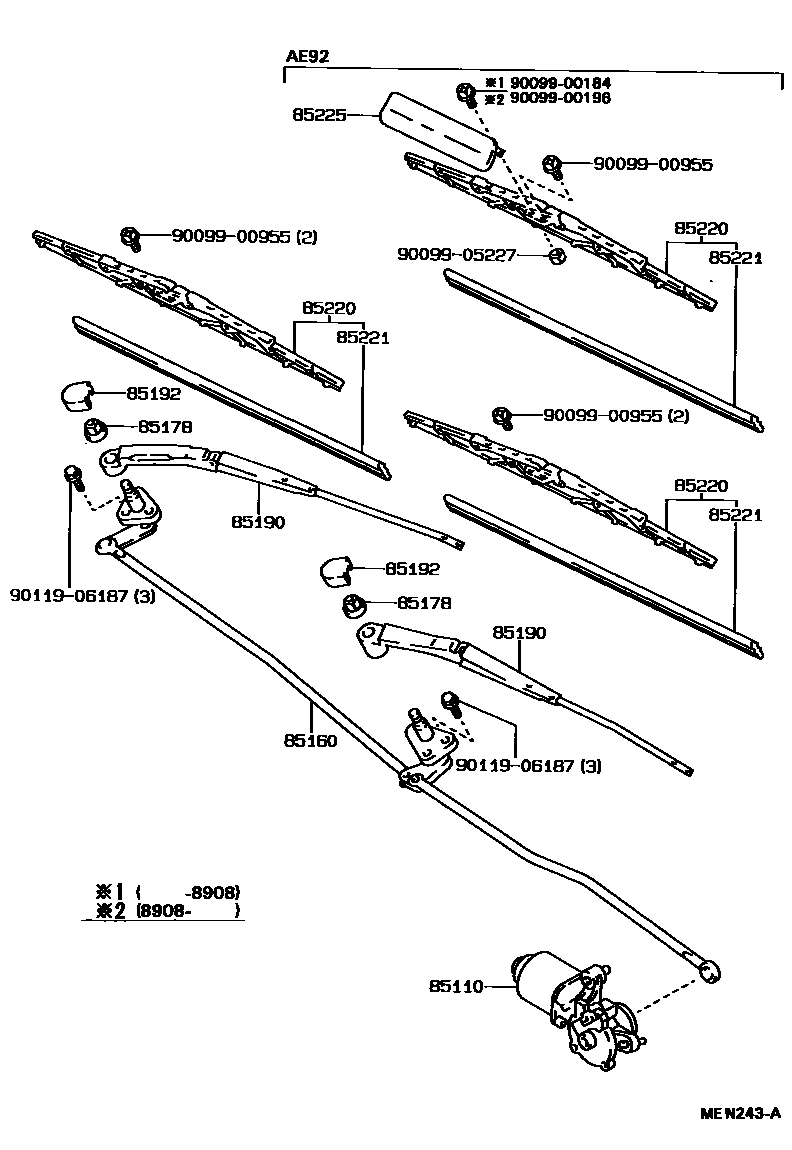

Parts diagram
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-12640i198705-198808
main85110-12641i198808-198908
main85110-12642i198908-199206
main85110-12650i198705-198808
main85110-12651i198808-198908
main85110-12652i198908-199206
main85110-12710i198705-198808
main85110-12711i198808-198908
main85110-12712i198908-199205
main85110-12720i198705-198808
main85110-12721i198808-198908
main85110-12722i198908-199211
85160LINK ASSY, WINDSHIELD WIPER
main85160-12440i198705-198908
main85160-12450i198705-198908
main85160-12451i198908-199206
main85160-12470i198908-199206
main85160-12520i198705-198908
main85160-12521i198908-199201
main85160-12522i199201-199205
main85160-12530i198705-198908
main85160-12531i198908-199201
main85160-12532i199201-199211
85178NUT (FOR FRONT WIPER ARM SETTING)
main90179-08113×2i198705-199211
85190ARM ASSY, WINDSHIELD WIPER
main85190-12820i198705-198908
RH
main85190-12821i198908-198911
RH
main85190-12822i198911-199205
RH
main85190-12830i198705-198908
LH
main85190-12831i198908-199211
LH
main85190-1A040i198705-198908
RH
main85190-1A041i198908-198911
RH
main85190-1A042i198911-199206
RH
main85190-1A050i198705-198908
LH
main85190-1A051i198908-199206
LH
main85210-12240i198705-198908
LH
main85210-12241i198908-198911
LH
main85210-12242i198911-199011
LH
main85210-12243i199011-199206
LH
main85210-12250i198705-198908
RH
main85210-12251i198908-199211
RH
85192COVER, WINDSHIELD WIPER ARM
main85192-12800×2i199108-199211
PLANT NO.A3#,M12,K21
main85292-12020×2i199108-199211
PLANT NO.B11
85220BLADE ASSY, WINDSHIELD WIPER
main85212-12290i198911-199206
RH
main85220-16320i198705-198911
LH
main85220-16340i198705-198808
RH
main85220-16880i198808-199211
RH
main85220-32490i198705-198908
LH
main85220-32500i198705-198908
RH
main85220-32590i198705-198908
RH
main85220-32600i198705-198808
LH
main85220-32860i198808-198908
LH
main85220-3A180i198908-198911
RH
main85220-3A200i198908-199211
LH
main85222-12700i198911-199206
LH
85221BLADE, WINDSHIELD WIPER
main85213-12290i199011-199206
RH
main85221-12240i198903-199003
LH
main85221-30100i198705-199211
RH
main85221-30120i198705-198708
LH
main85221-32050i198705-198708
RH
main85223-12690i199011-199206
LH
main85223-22700i199003-199011
LH
85225WING, WIPER BLADE
main85225-12820i198705-198908
main85225-12821i198908-199205
main85225-12830i198705-198908
main85225-12831i198908-199211
9009900184
main90099-00184
9009900196
main90099-00196
9009900955
main90099-00955
9009905227
main90099-05227
9011906187
main90119-06187

13 parts on this diagram · 2 diagrams in section

WINDSHIELD WIPER for Toyota COROLLA HB

This section contains 15 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA HB. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM.
